OBD II Monitor Specifications: Wiring Diagram

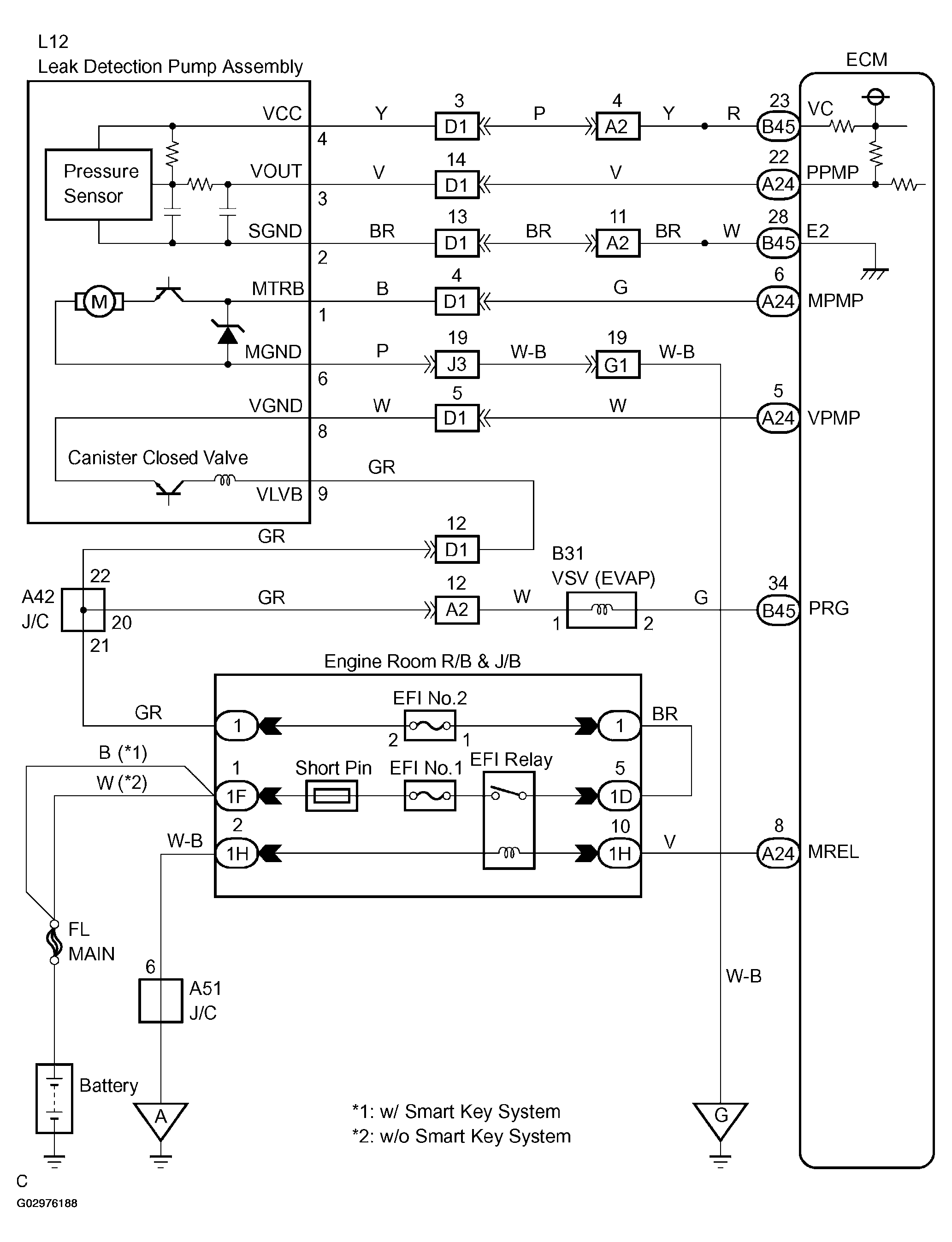

Fig 1: Identifying Wiring Diagram
G02976188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
