Front Suspension: Components

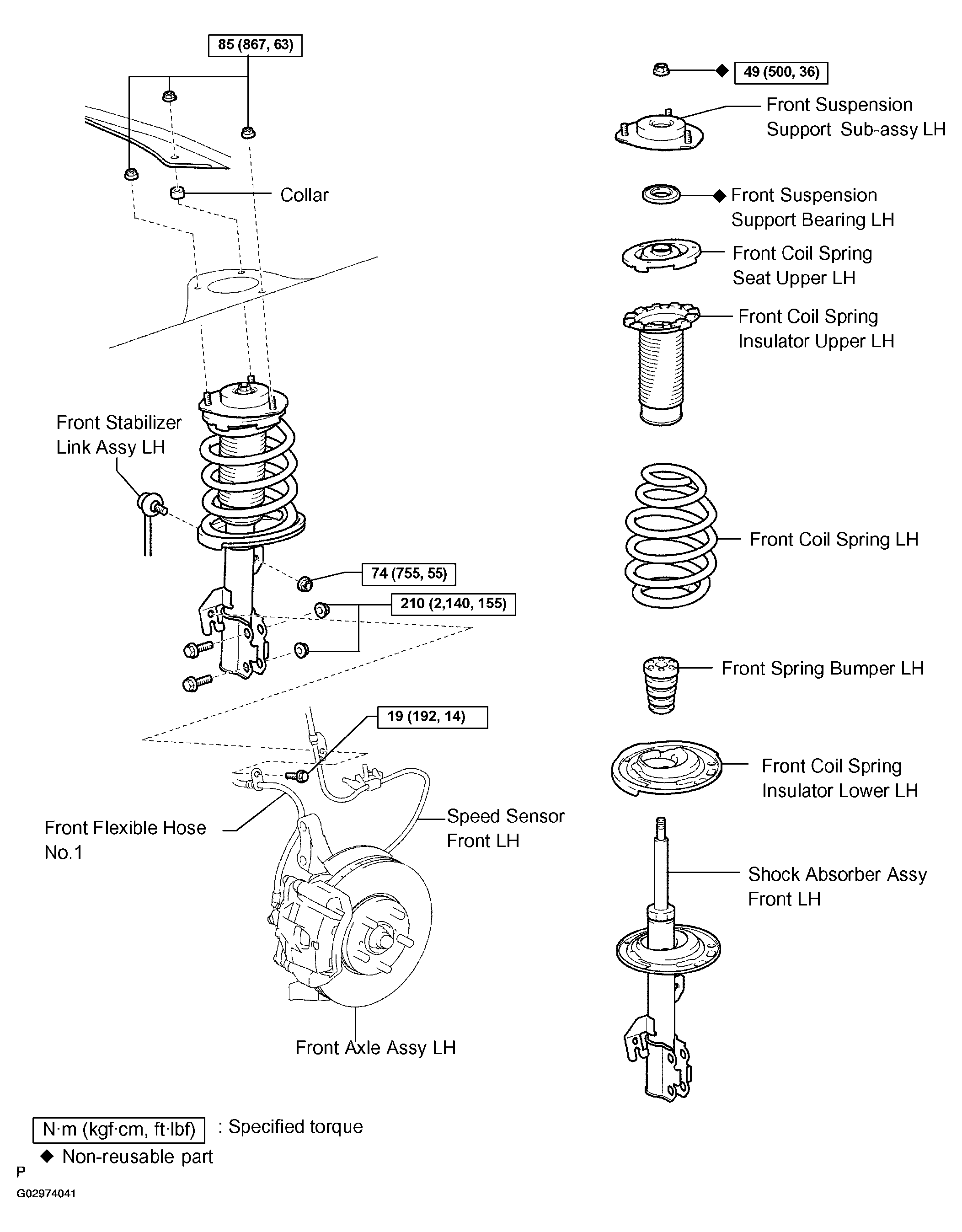

Fig 1: Front Suspension Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

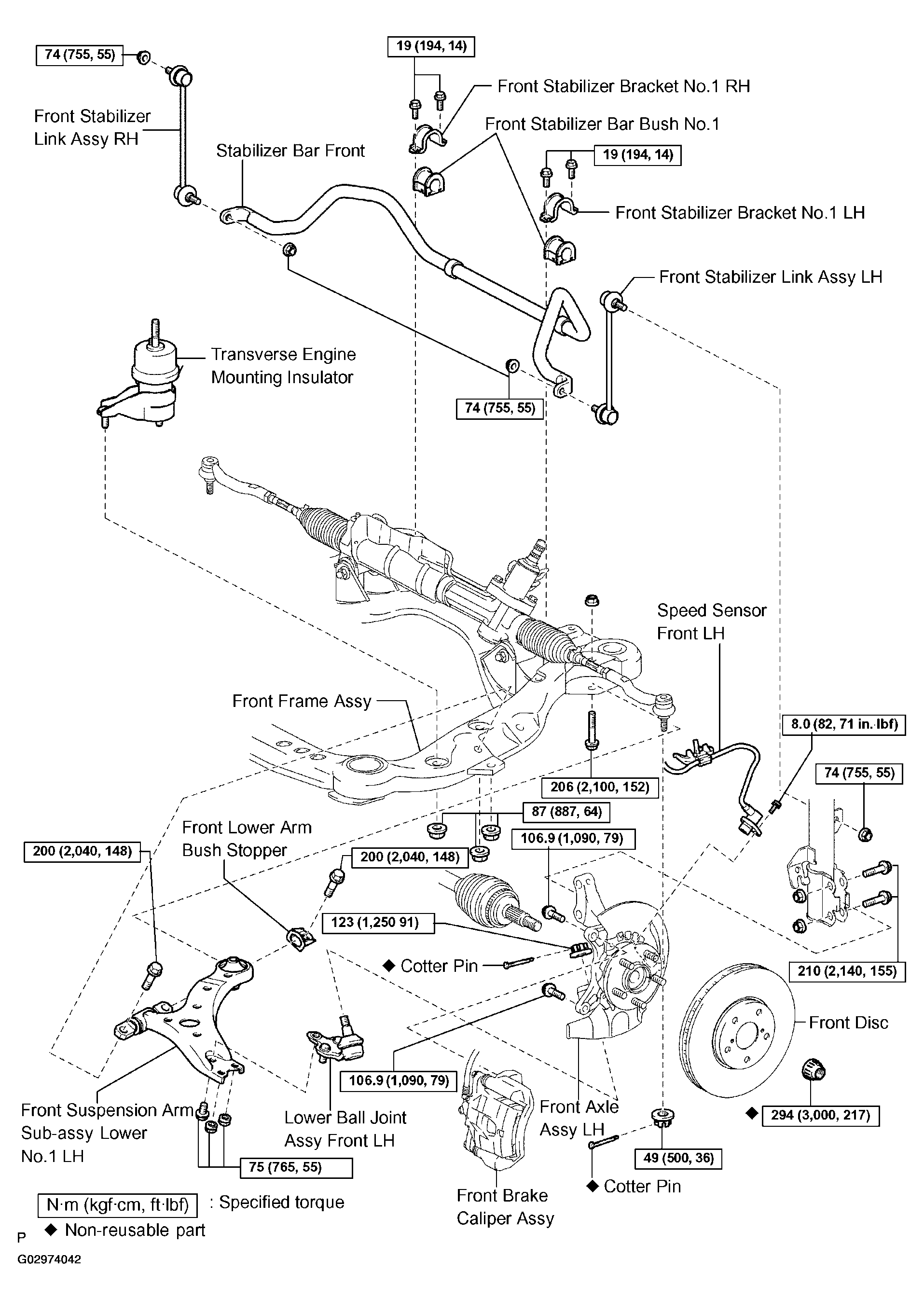

Fig 2: Front Suspension Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
