How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
HINT:
This is the repair procedure for vehicle pull.

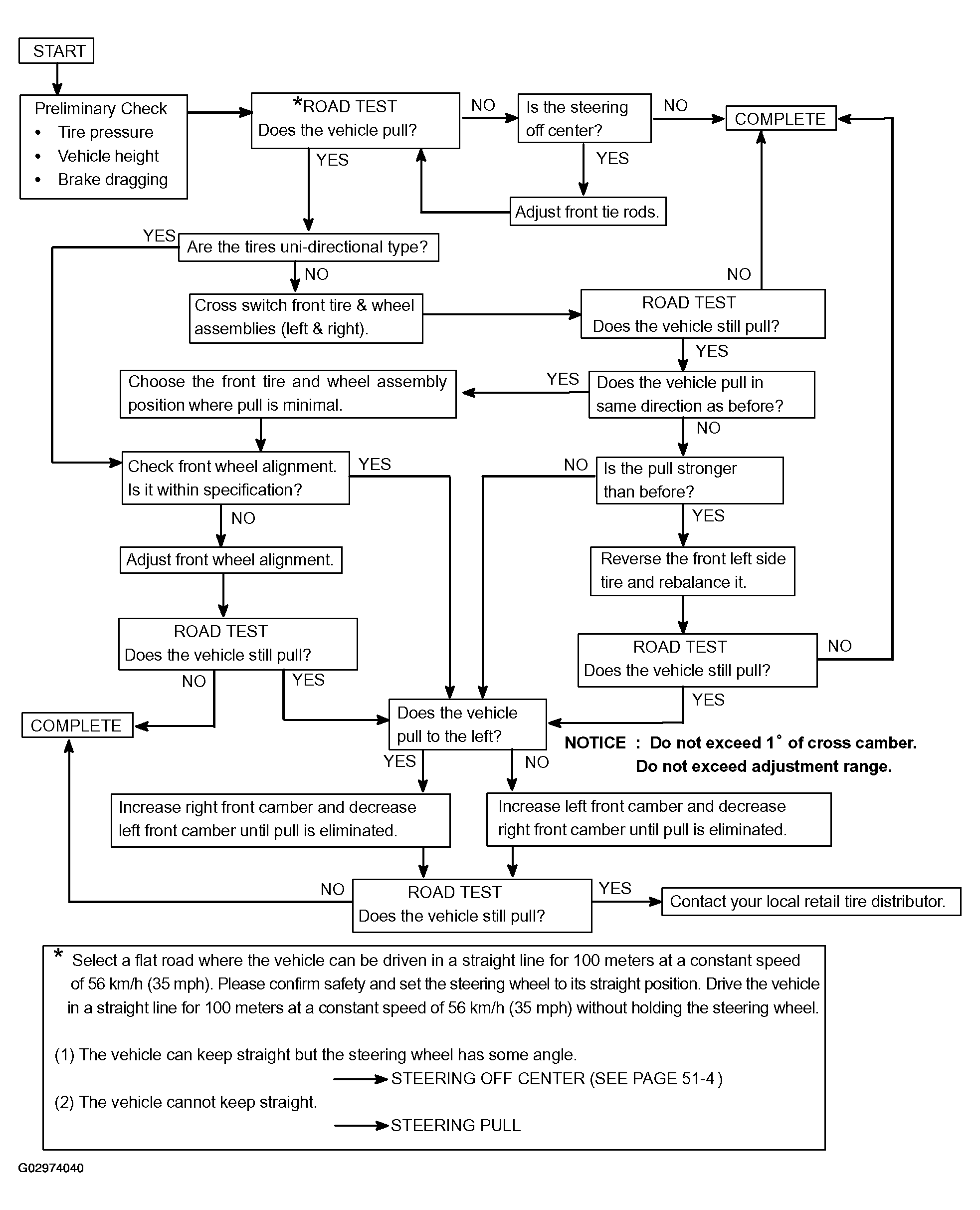

Fig 1: Front Suspension System Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
