Smart Key System (Keyless Entry): Registration

HINT:

• ID code is the same as recognition codes for the wireless transmitter and the engine immobilizer function. Registering an ID code enables the smart key system, the wireless door lock control function and the engine immobilizer function to be operated.
• Code registration is needed when the certification ECU, ID code box, steering lock ECU or key is replaced with a new one.

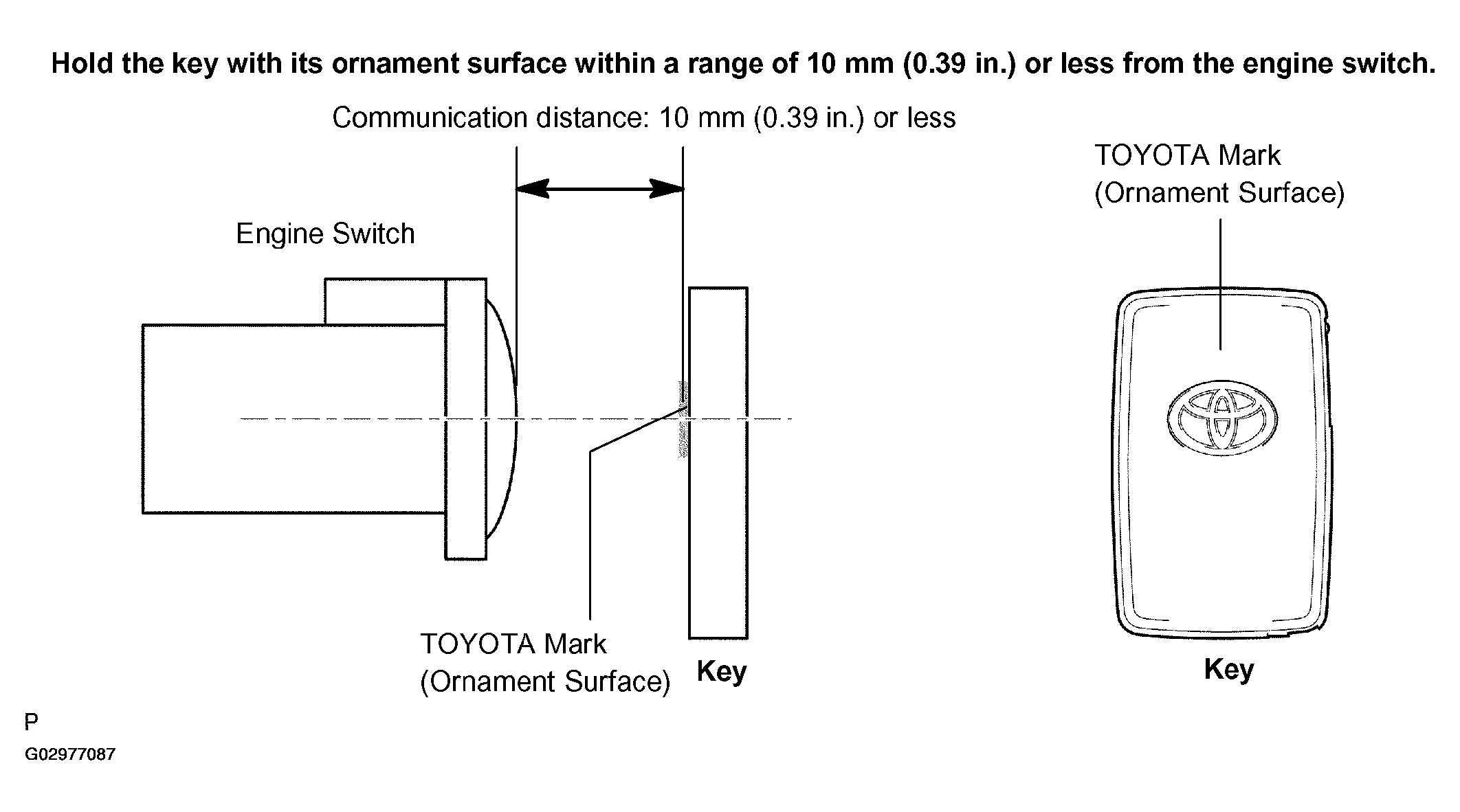

1. Vehicles with the smart key system do not have a key slot. Therefore, hold the key close to the engine switch to register the key as shown in the illustration below.
   Fig 1: Identifying Communication Distance Between Engine Switch And Key

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The following table shows ECU replacement and key registration procedures in case the malfunctioning ECU has been specified after troubleshooting the smart key system.

   HINT:

   • The following procedures indicated in the table below require the use of the hand-held tester:

     New key ID registration

     Additional key ID registration

     Key ID erasure

     ECU code registration

   • If the customer has not brought all the registered keys, replacement of the ID code box is also required.
   • A maximum of 7 keys can be registered.

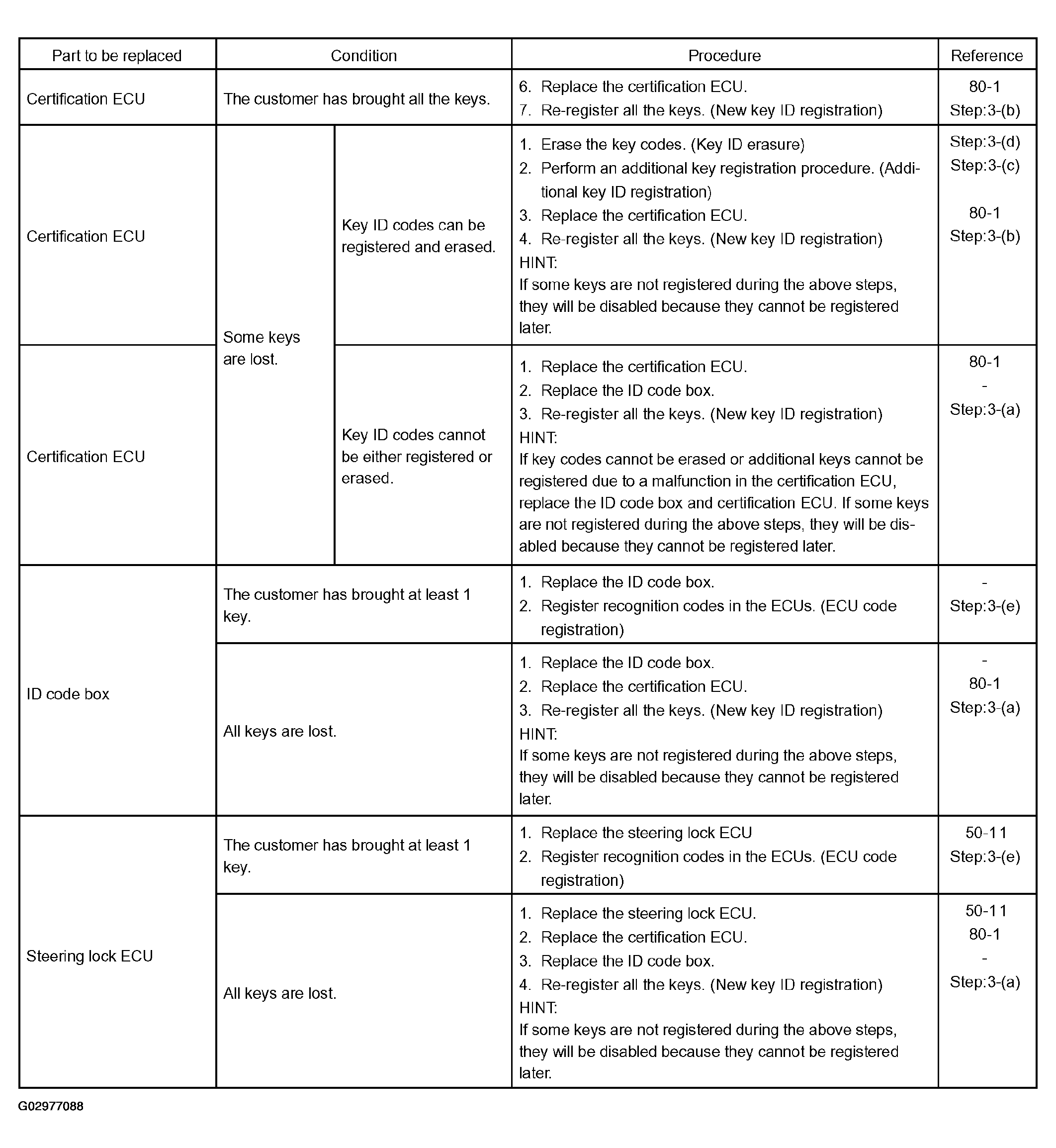

     Fig 2: Identifying Part Replacement And Key Registration Procedures (1 Of 2)

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

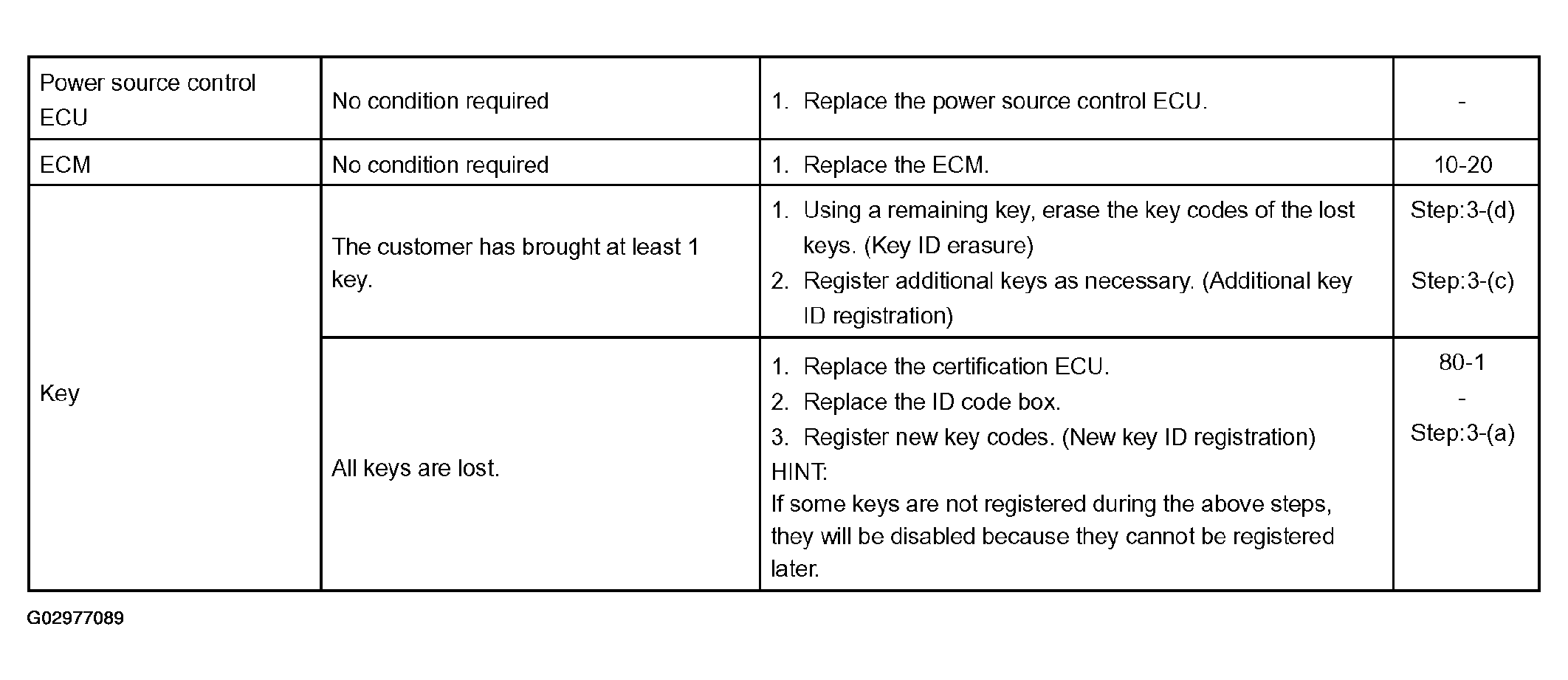

     Fig 3: Identifying Part Replacement And Key Registration Procedures (2 Of 2)

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

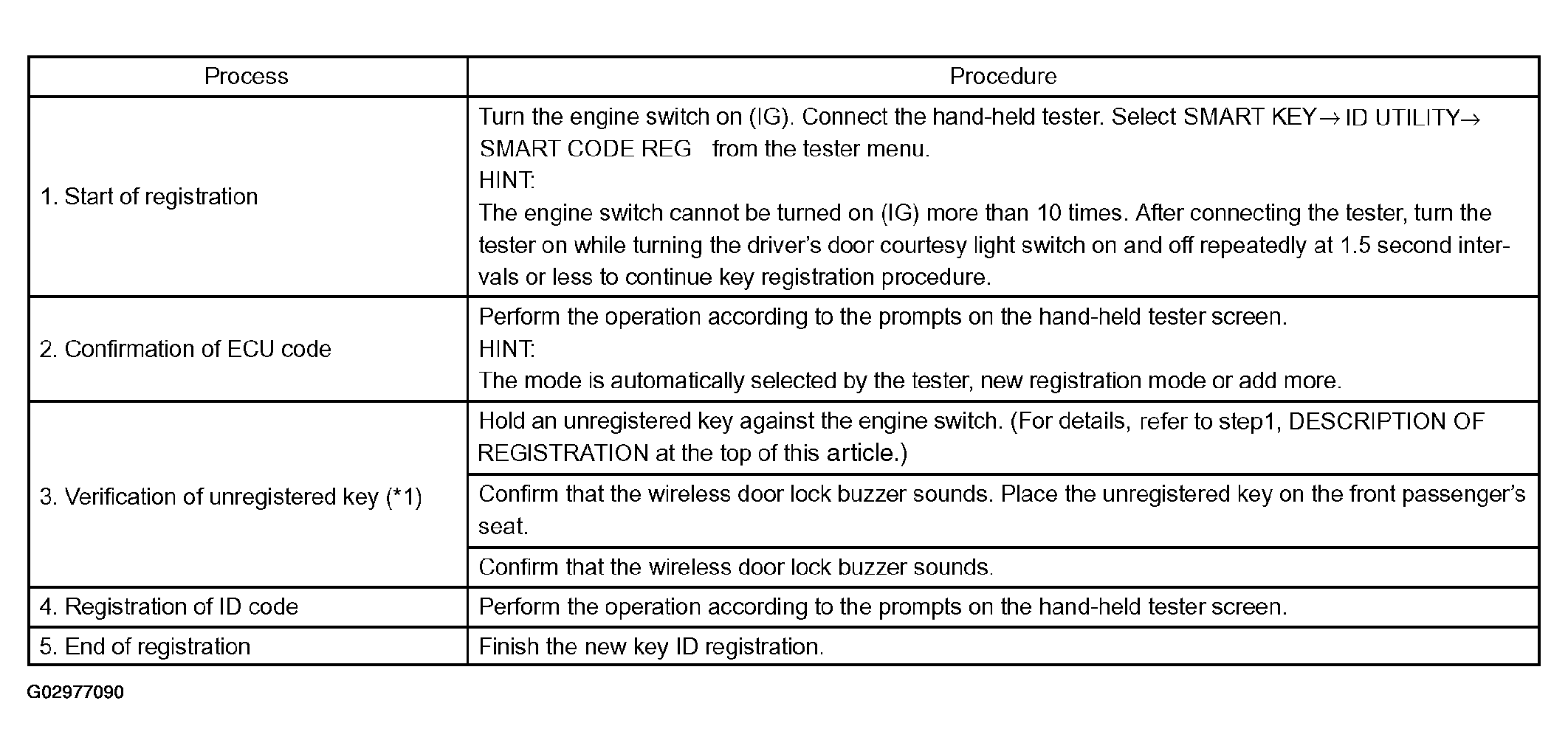

1. New key ID registration

   (If replacing the certification ECU and ID code box or if replacing the certification ECU, ID code box, and steering lock ECU, perform the following.)

   Fig 4: Key Registration Procedures Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

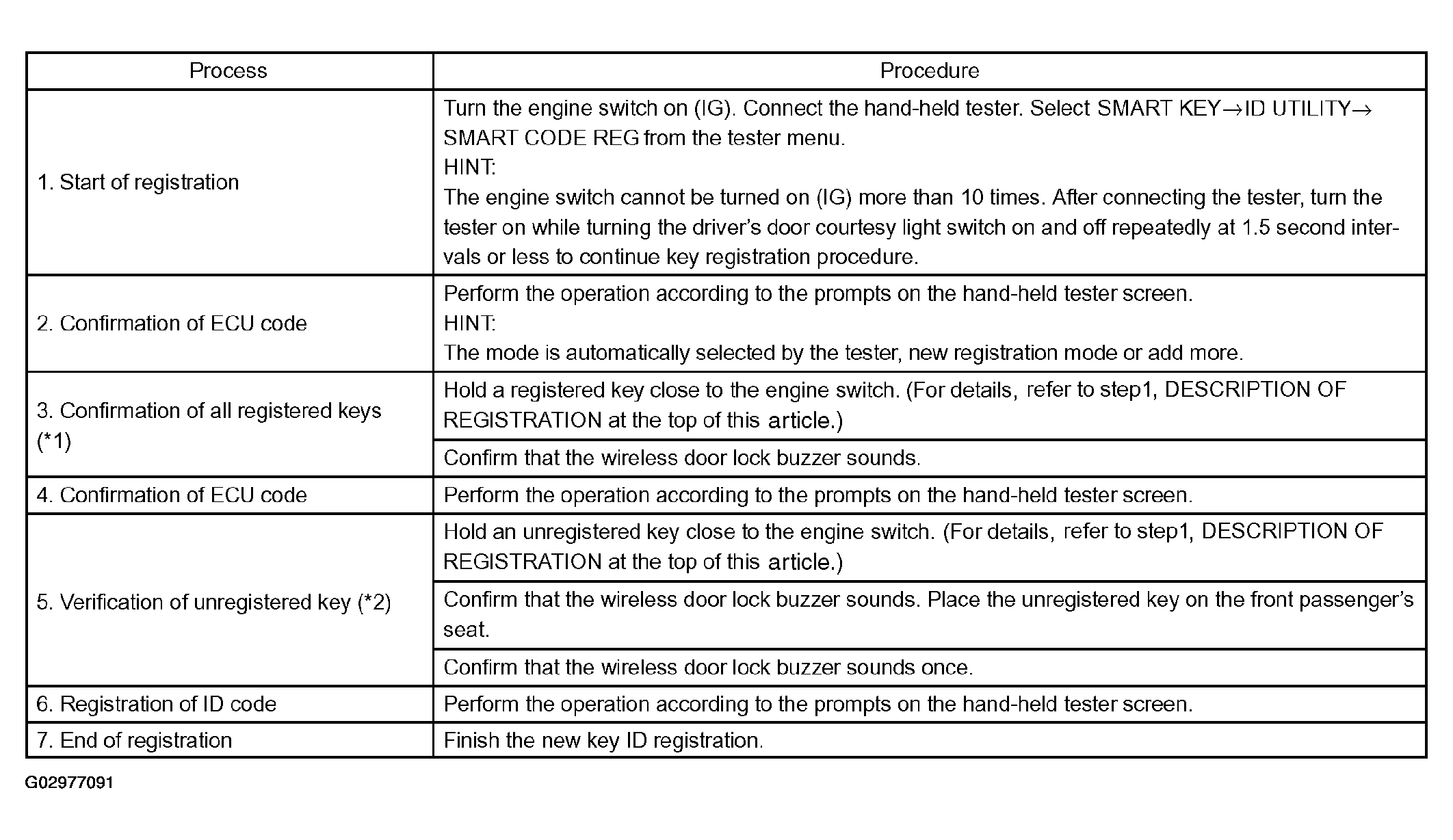

2. New key ID registration (If replacing the certification ECU, perform the following.)
   Fig 5: New Key ID Registration Procedure Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1: Repeat this process for each key registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. If performing the key confirmation procedure for a key, the security indicator comes on and remains on until all the keys are confirmed.

   *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

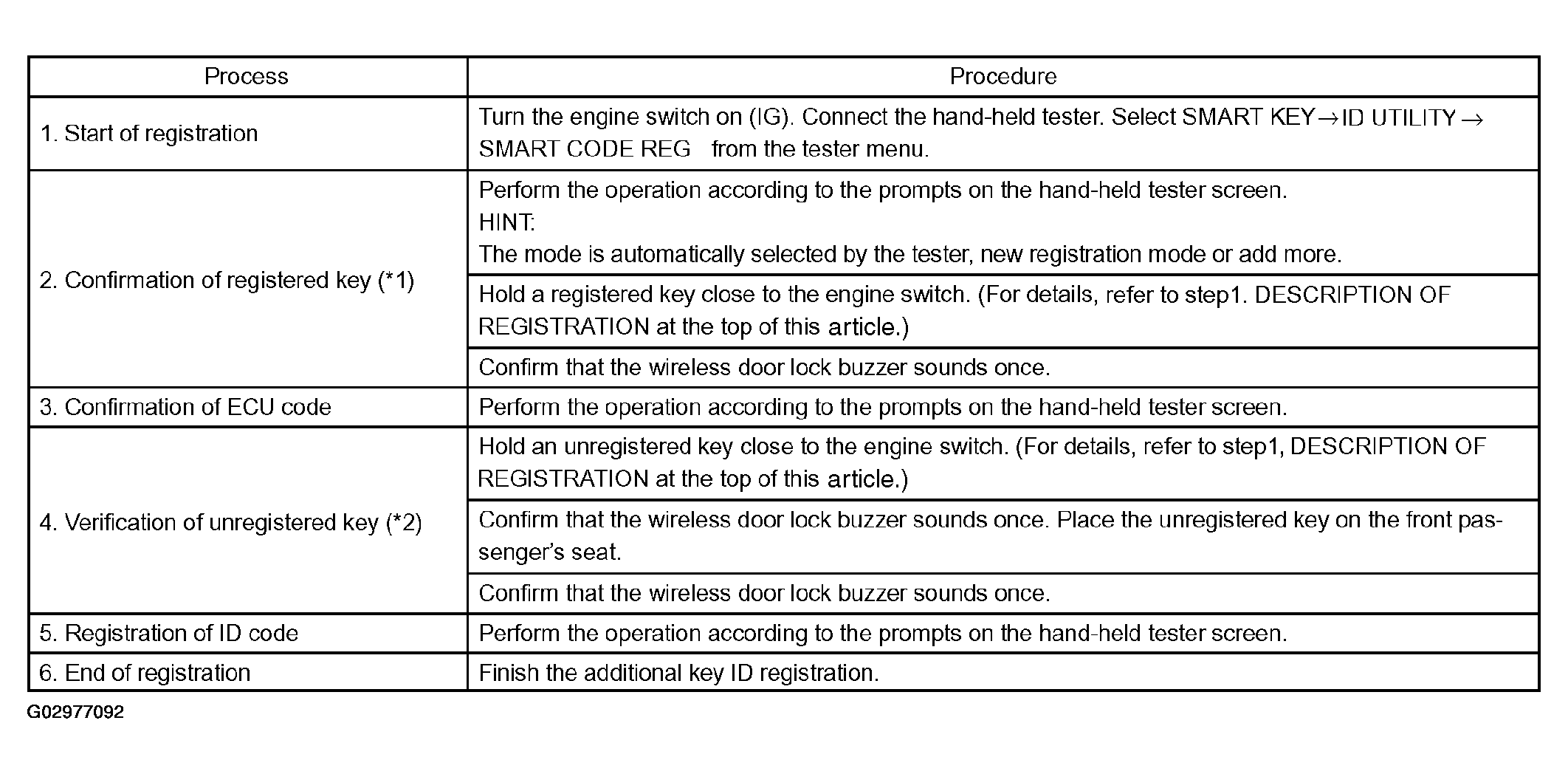

3. Additional key ID registration
   Fig 6: Additional Key ID Registration Procedure Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform registration procedures from process 1 again.

   *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

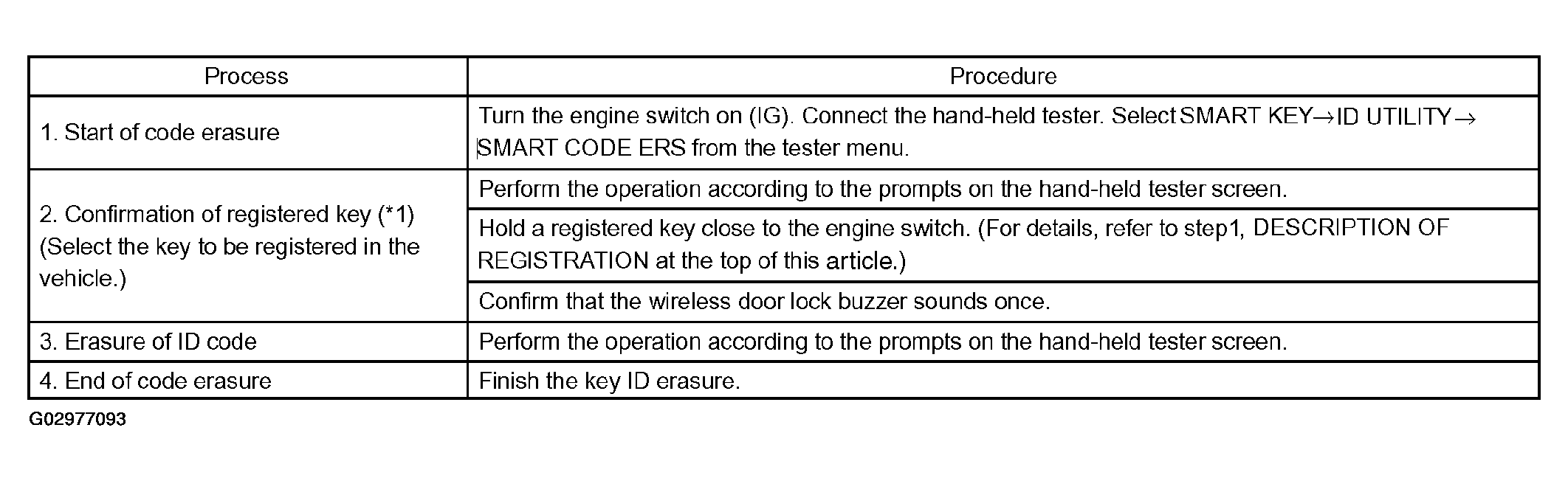

4. Key ID erasure

   HINT:

   Erase all the registered key codes except one.

   Fig 7: Registered Key Codes Erasing Procedure Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform erasure procedures from process 1 again.

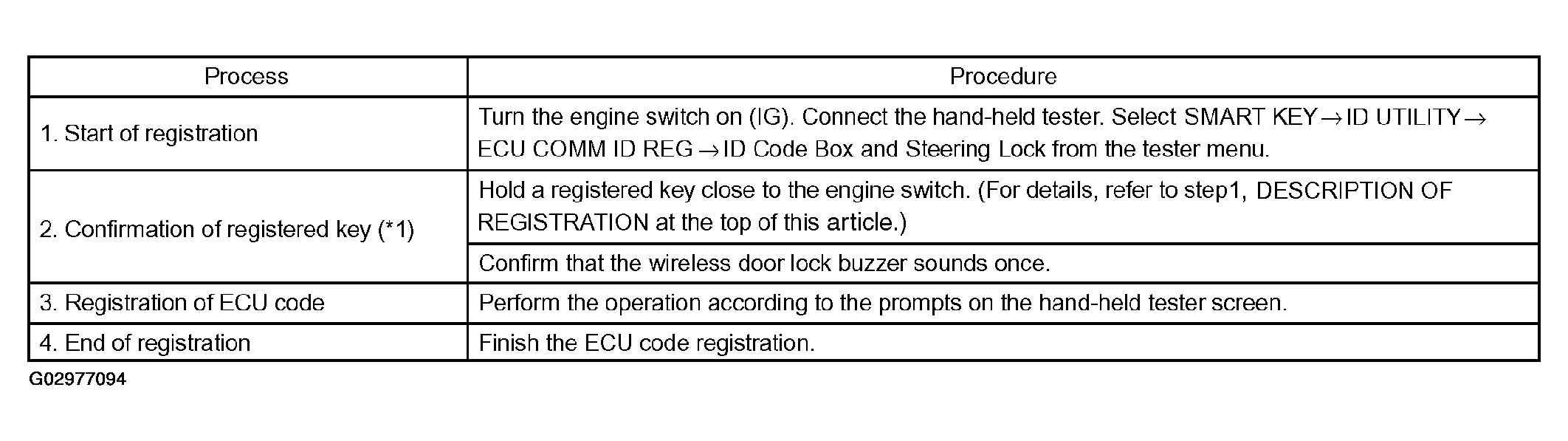

5. ECU code registration
   Fig 8: ECU Code Registration Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform registration procedures from process 1 again.
