Signal Communication Table:

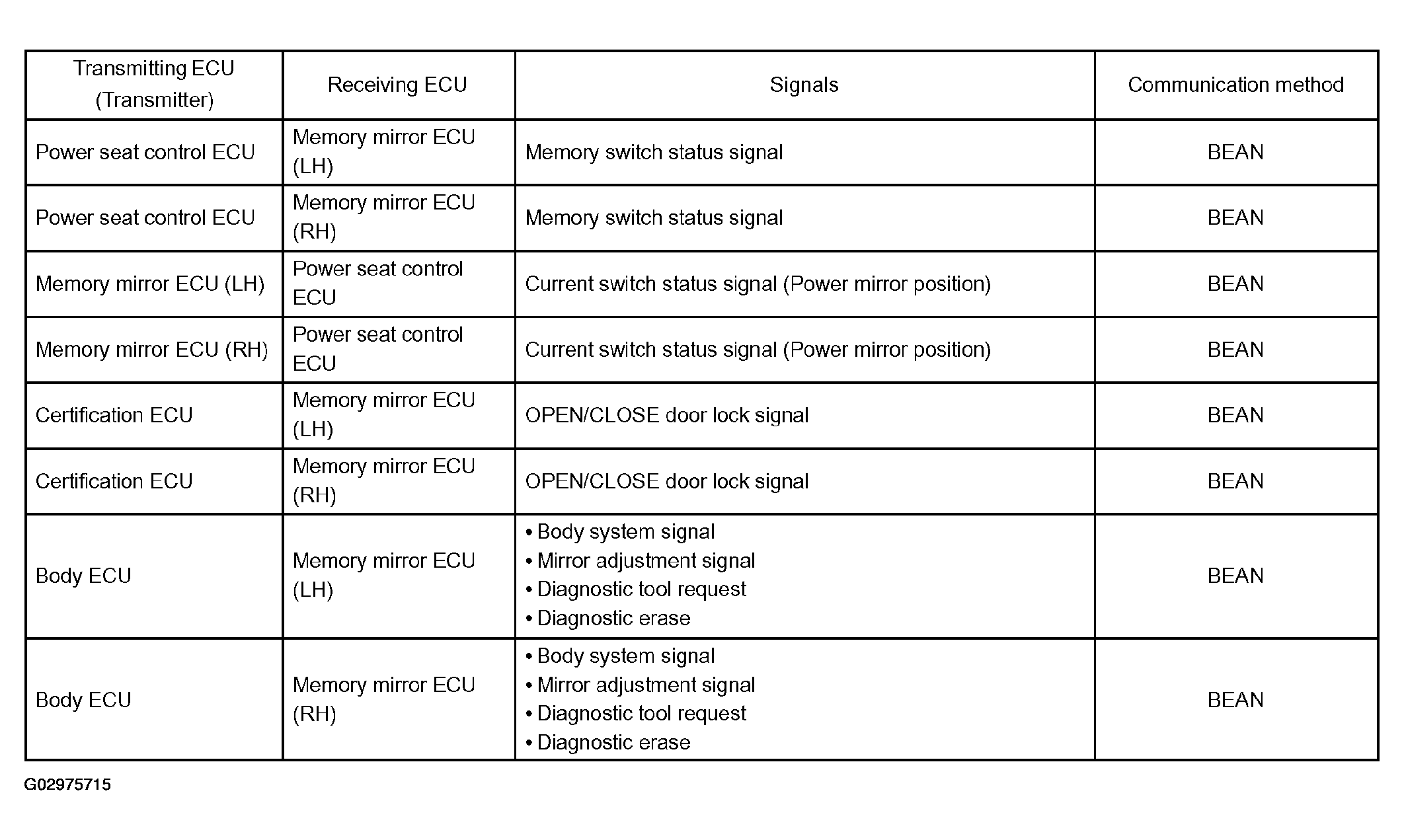

Fig 1: Signal Communication Table
G02975715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
