Memory Switch Circuit: Wiring Diagram

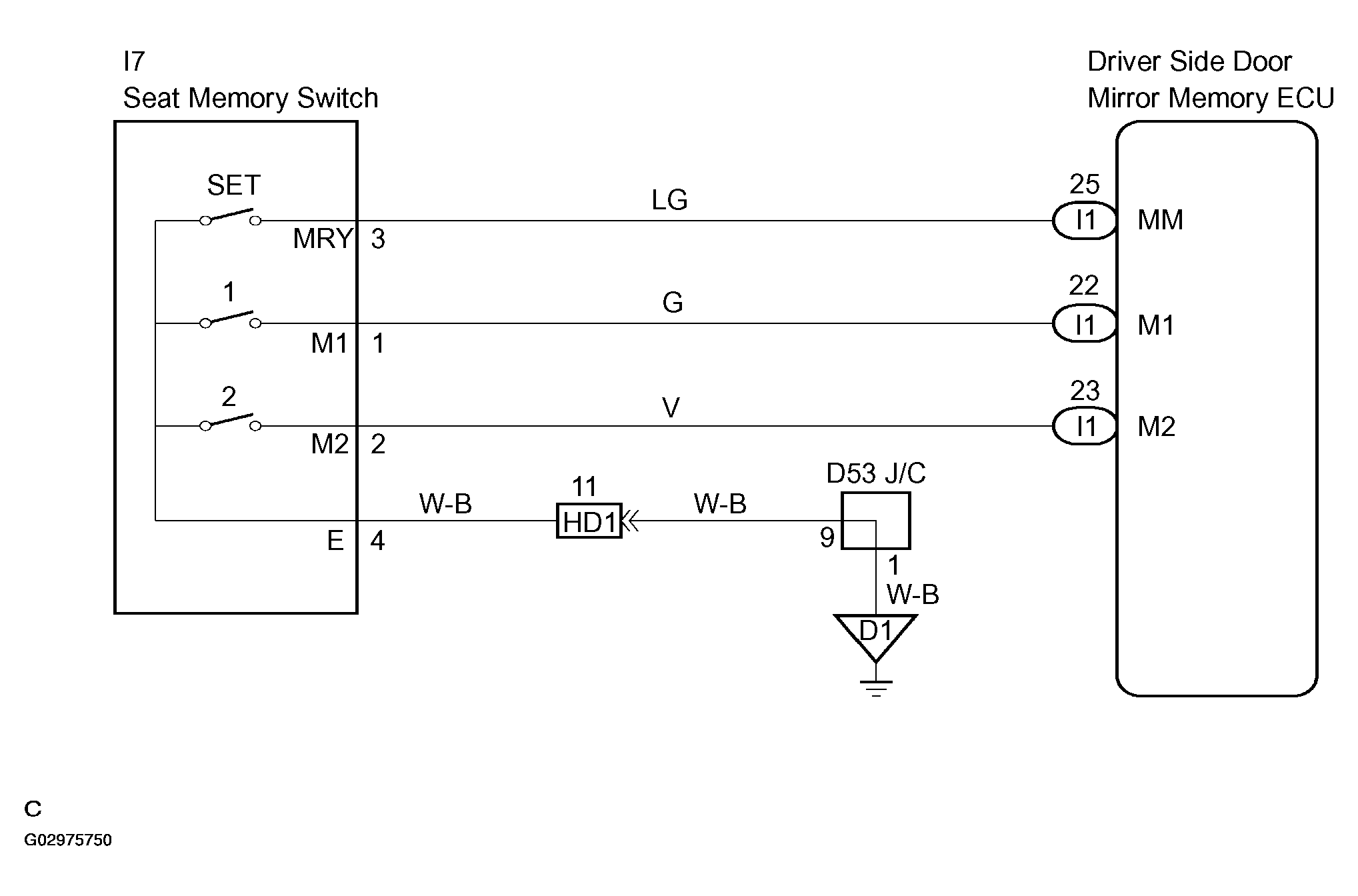

Fig 1: Memory Switch Wiring Diagram
G02975750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
