System Diagram
System Diagram

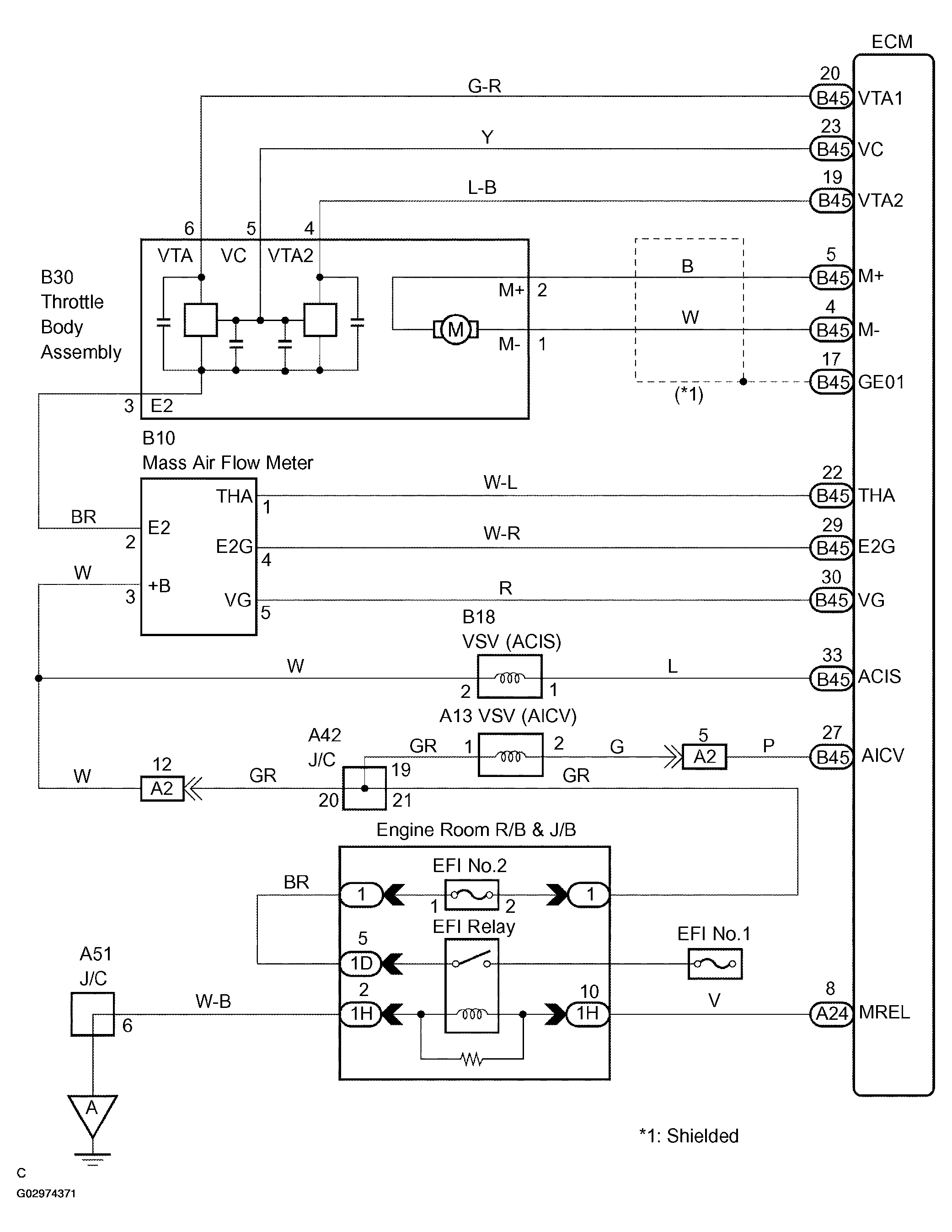

Fig 1: System Diagram - Intake Air Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
