Air Intake Control Circuit: Wiring Diagram

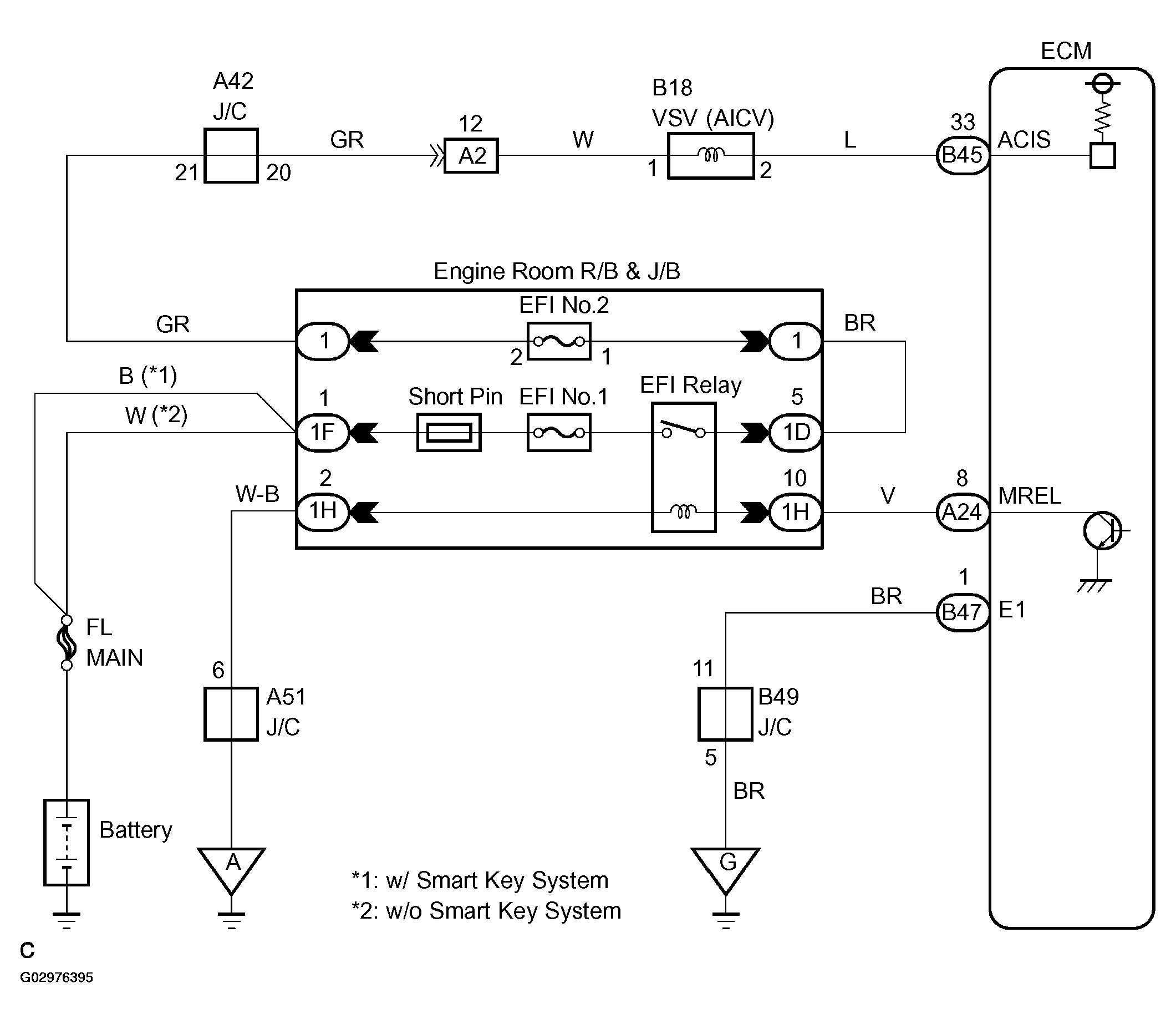

Fig 1: Identifying Wiring Diagram
G02976395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
