Inspection Procedure

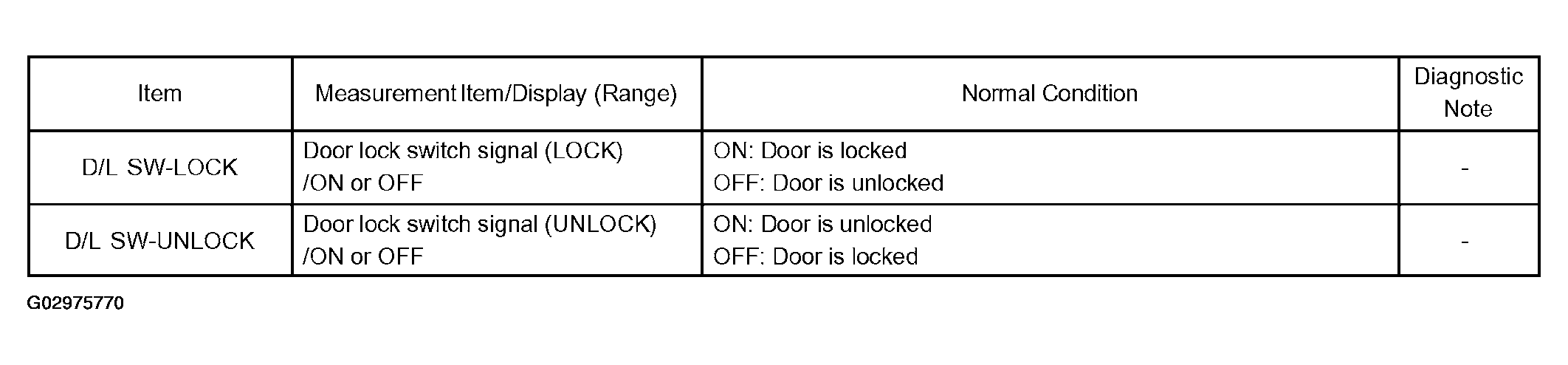

- READ VALUE OF DATA LIST (DOOR LOCK SWITCH)
- Check the DATA LIST for proper functioning of the door unlock detection switch.
Body ECU:
OK: "ON" (door is locked/unlocked) appears on the screen.
- NG: Go to step 2
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
- Check the DATA LIST for proper functioning of the door unlock detection switch.
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSY (DOOR LOCK CONTROL SWITCH)
- Disconnect the multiplex network master switch assy.
- Measure the resistance of the switch when the switch is operated.
Standard:
MULTIPLEX NETWORK MASTER SWITCH ASSY (DOOR LOCK CONTROL SWITCH)Tester Connection Door Lock Condition Specified Condition 1 - 8 ON (Door lock set to UNLOCK) Below 1 Ω 1 - 5 OFF (Door Lock set to LOCK) Below 1 Ω
- NG: REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSY
- OK: Go to next step

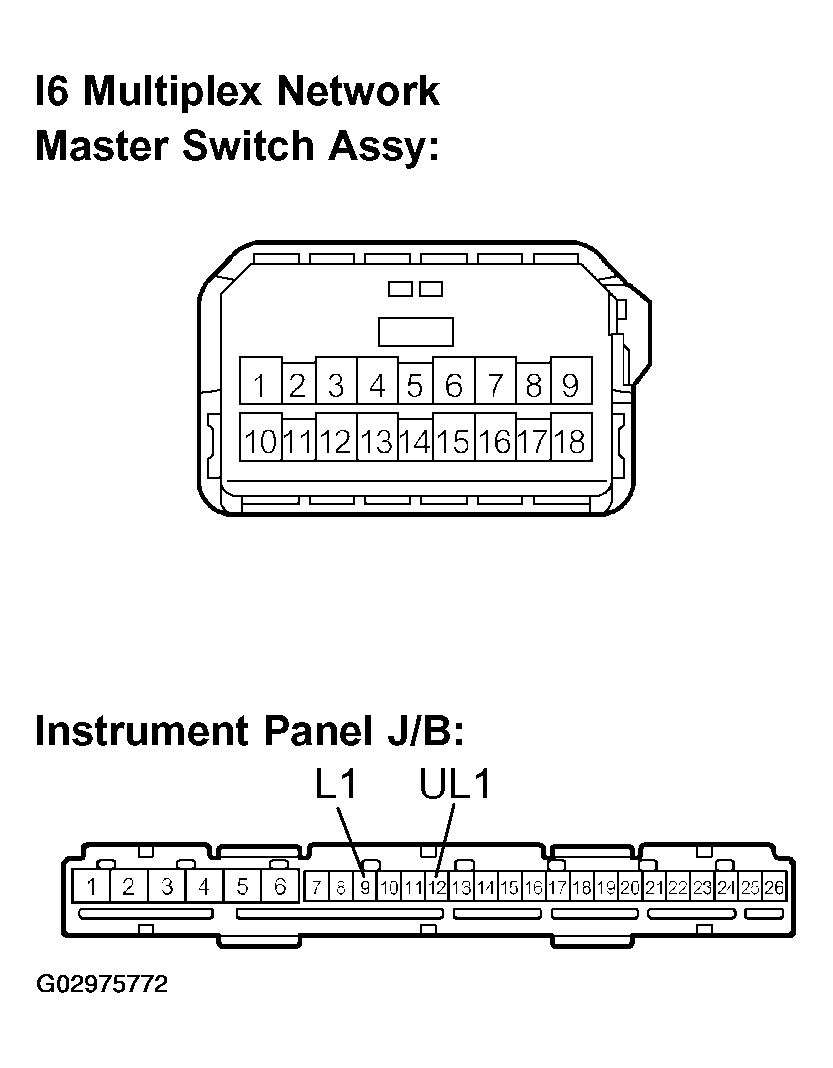

- CHECK WIRE HARNESS (MULTIPLEX NETWORK MASTER SWITCH ASSY - INSTRMENT PANEL J/B)
- Disconnect the I6 connector.
- Remove the body ECU from instrument panel J/B.
- Measure the resistance of the wire harness side connectors.
Standard:
MULTIPLEX NETWORK MASTER SWITCH ASSY - INSTRMENT PANEL J/BTester Connection Condition Specified Condition 9 - I6-5 (L1) Always Below 1 Ω 12 - I6-8 (UL1) Always Below 1 Ω I6-1 - Body ground Always Below 1 Ω
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
