System Description

POWER DOOR LOCK SYSTEM DESCRIPTION
1. The power door lock system locks/unlocks all doors with a one-touch operation.
  - The door control switch of the master switch assembly on the driver's door and the driver's door key cylinder send lock/unlock request signals to each door lock motor assy through the body ECU.
  - The door control switch on the passenger door sends lock/unlock request signals to each door lock motor assy through the body ECU.
2. Components

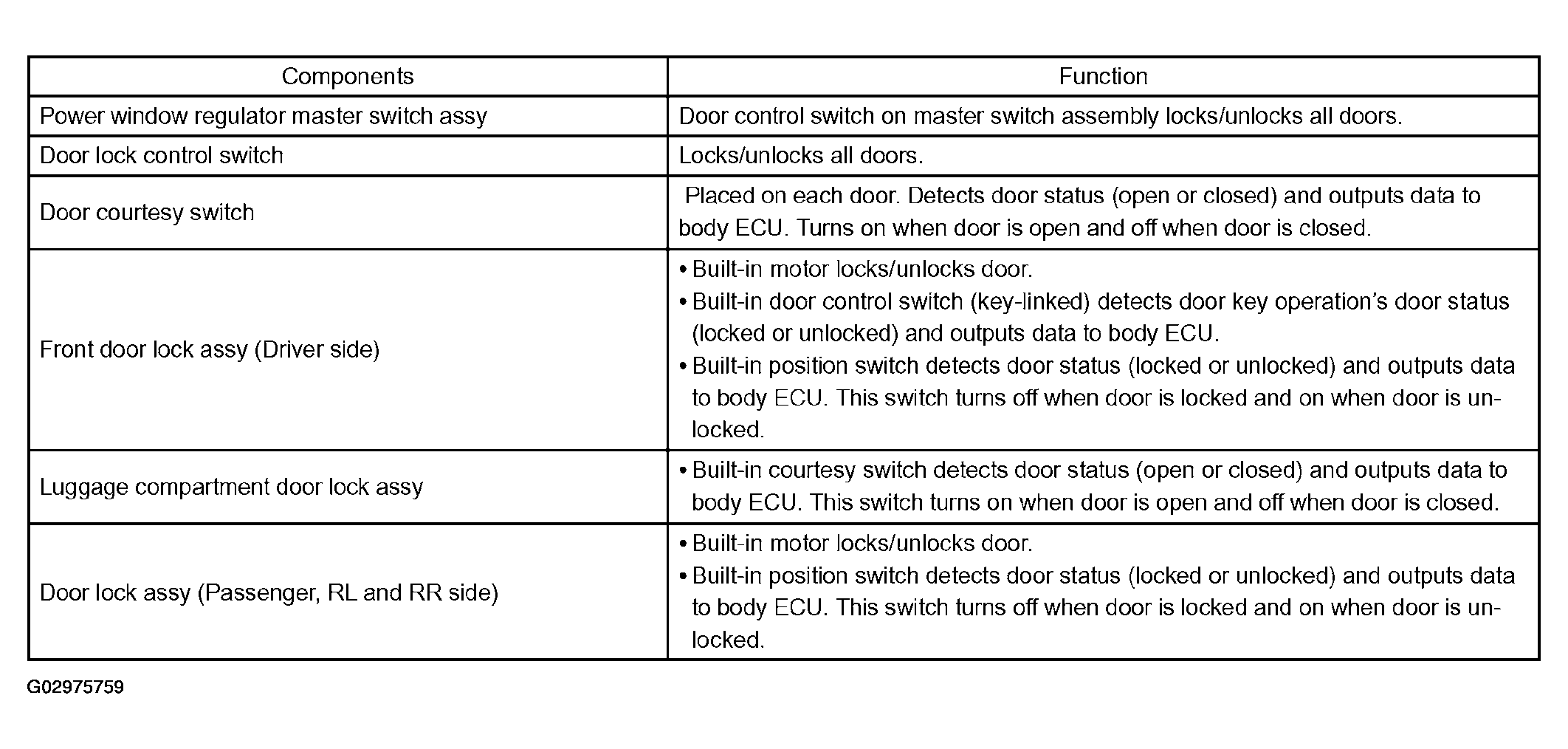

  Fig 1: Power Door Lock Components System Description
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Functions

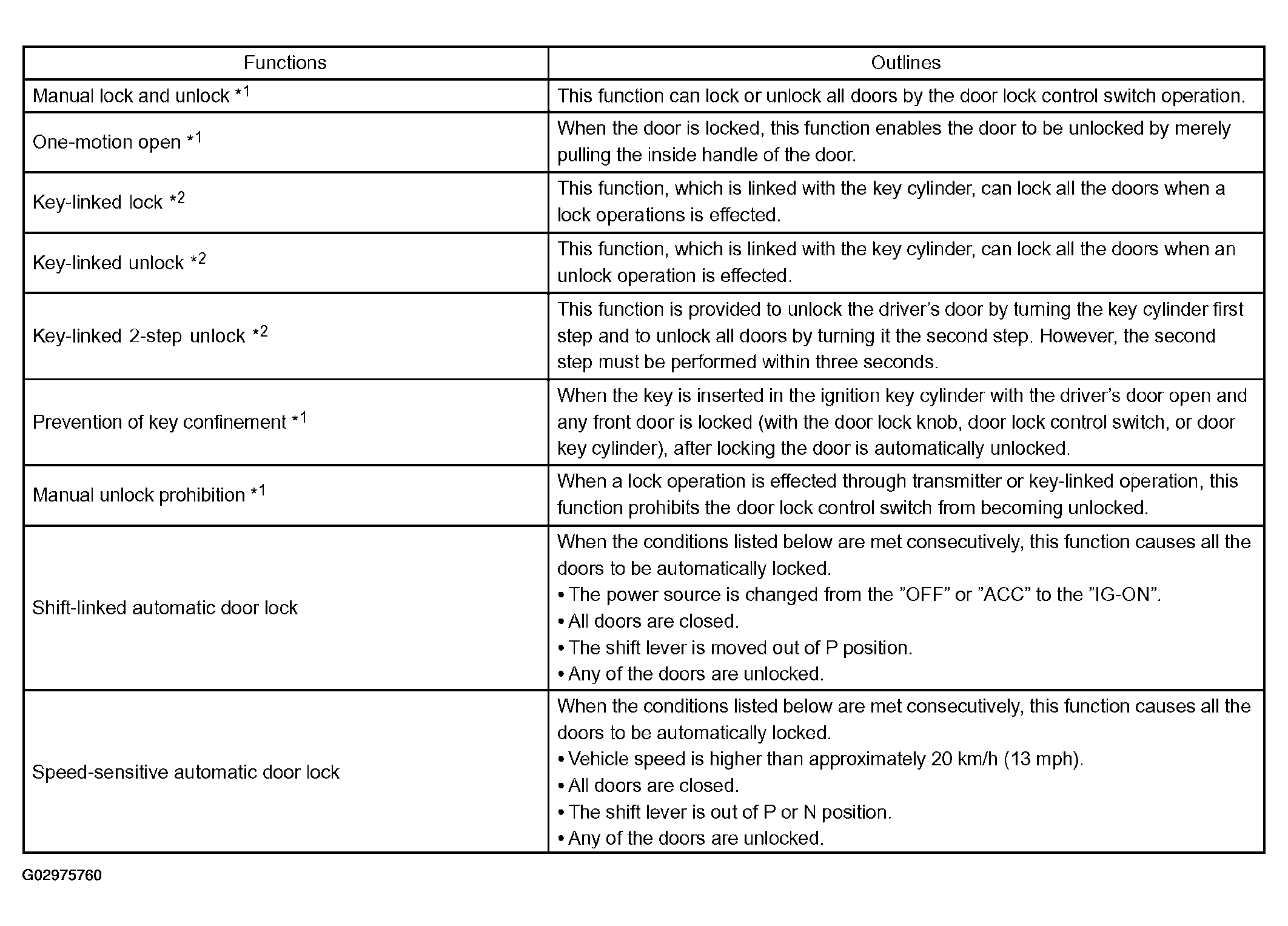

  Fig 2: Power Door Lock Functions System Description (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

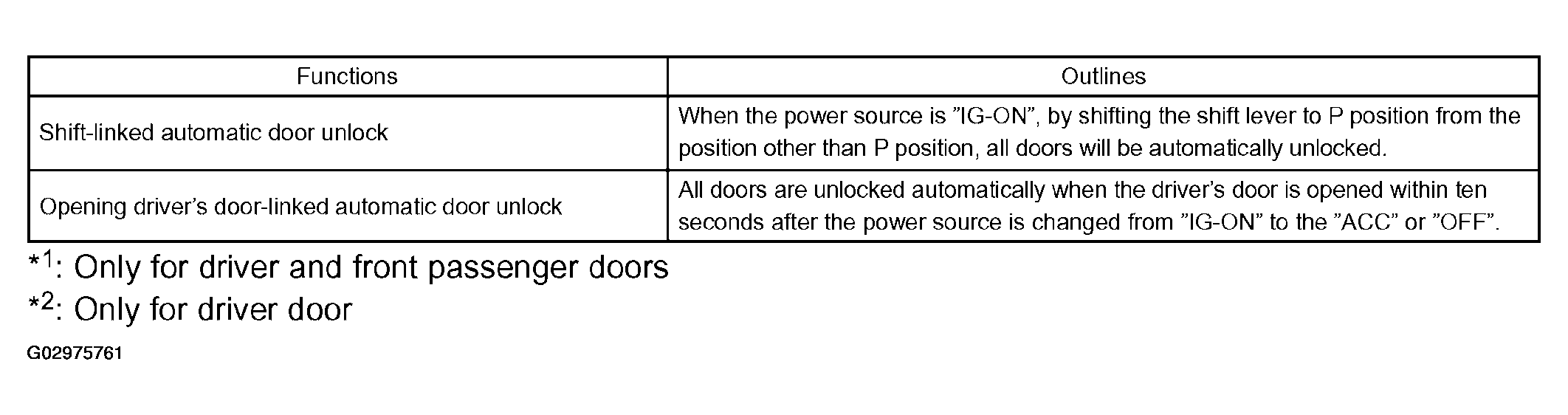

  Fig 3: Power Door Lock System Functions System Descritpion (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
