Smart Key System (Keyless Entry)
›
Diagnostic Trouble Code Chart
›
Smart Key
Smart Key

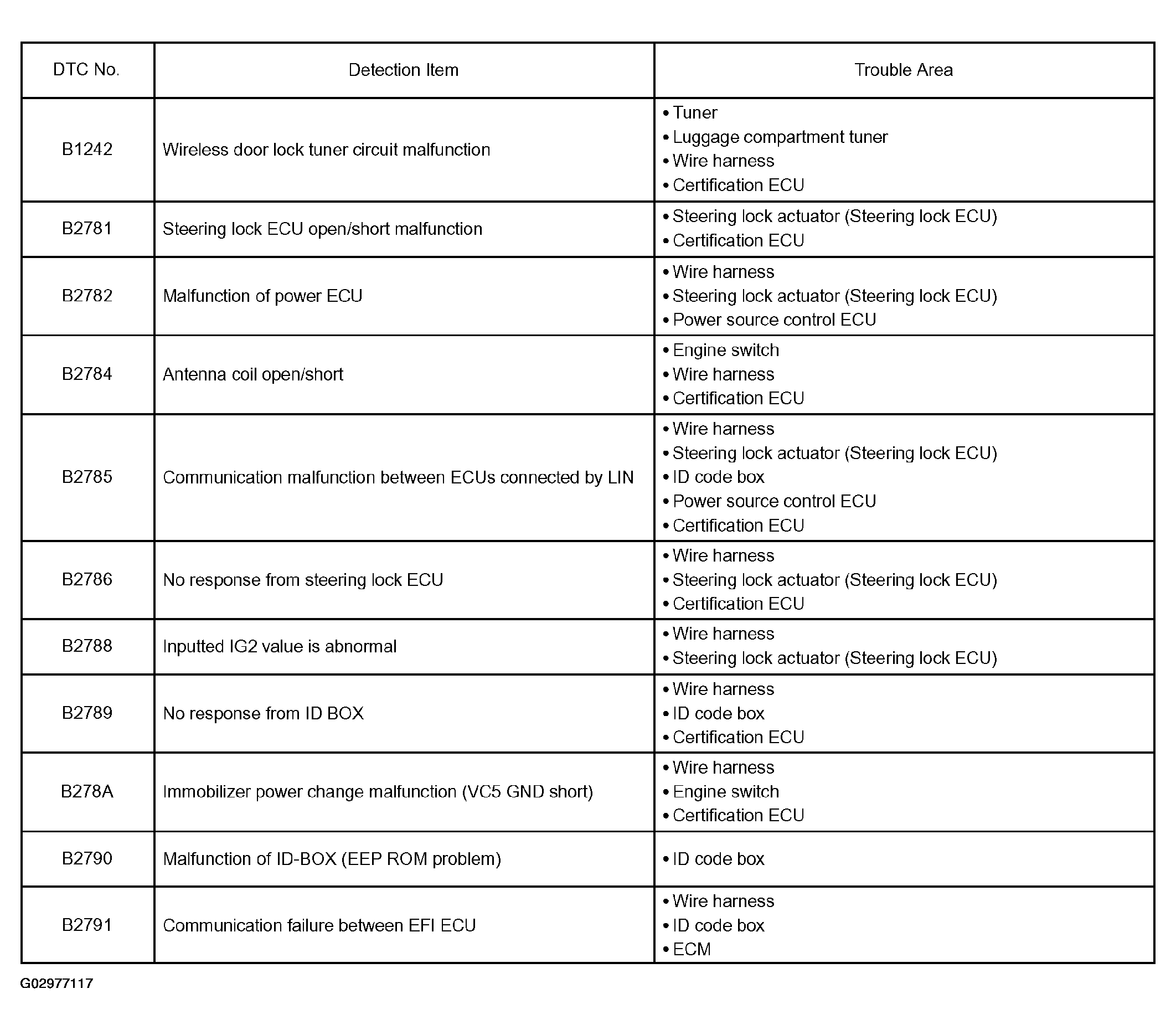

Fig 1: Smart Key Diagnostic Trouble Code Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
