Smart Key System (Keyless Entry): Location

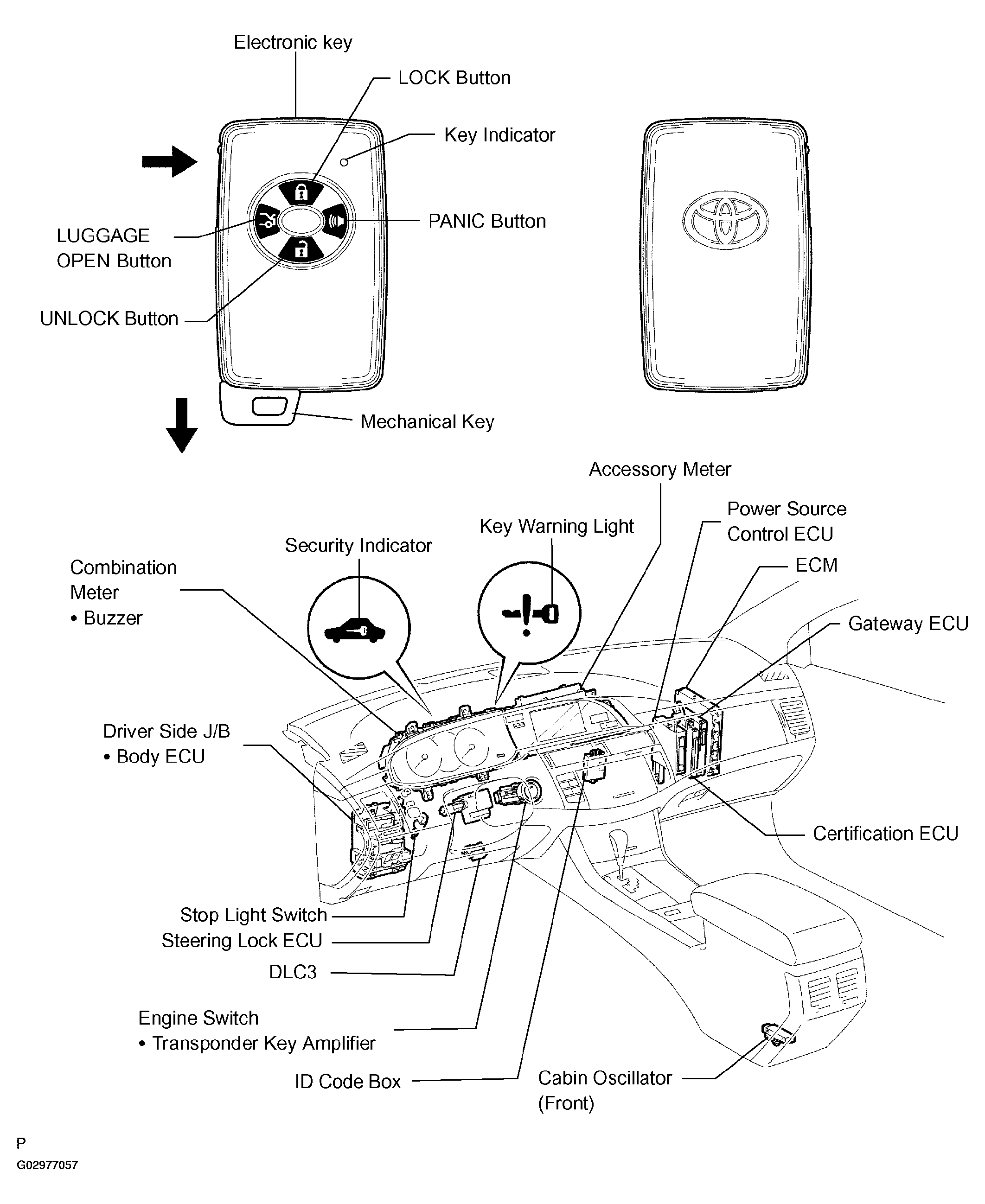

Fig 1: Identifying Smart Key System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

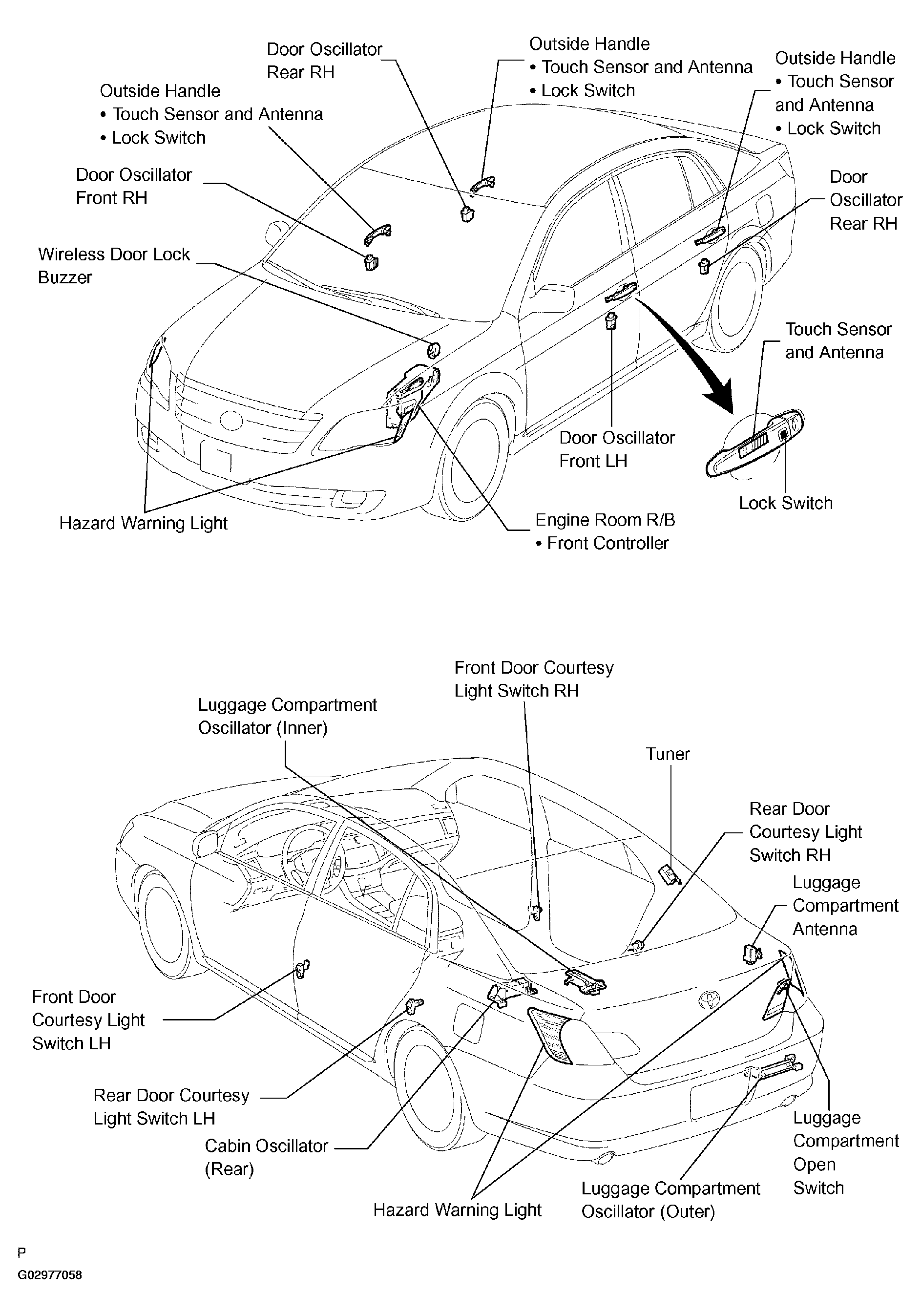

Fig 2: Identifying Smart Key System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
