Problem Symptoms Table
›
Key Reminder Warning Function
Key Reminder Warning Function

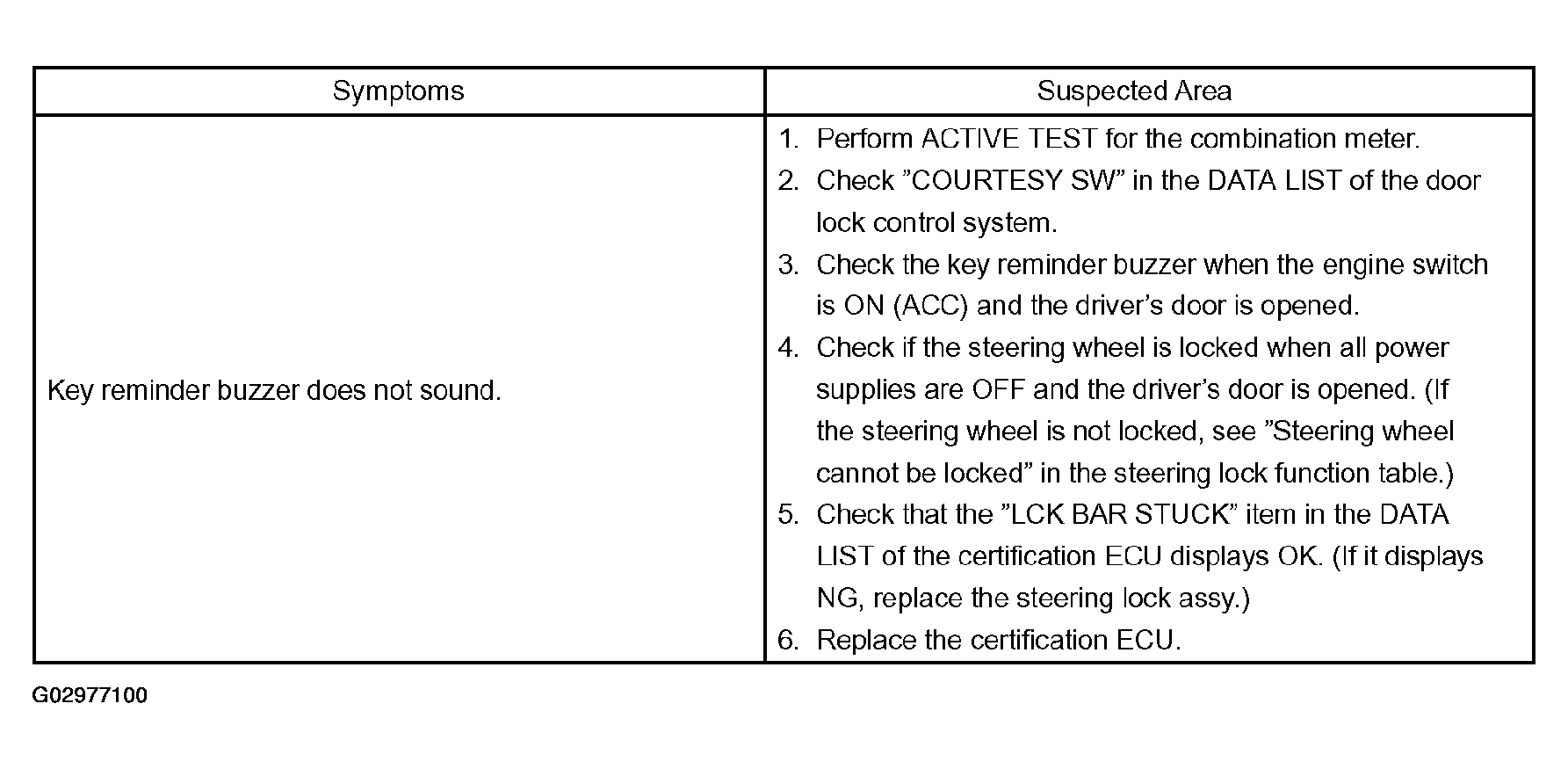

Fig 1: Key Reminder Warning Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
