Problem Symptoms Table
›
Push Button Start Function
Push Button Start Function

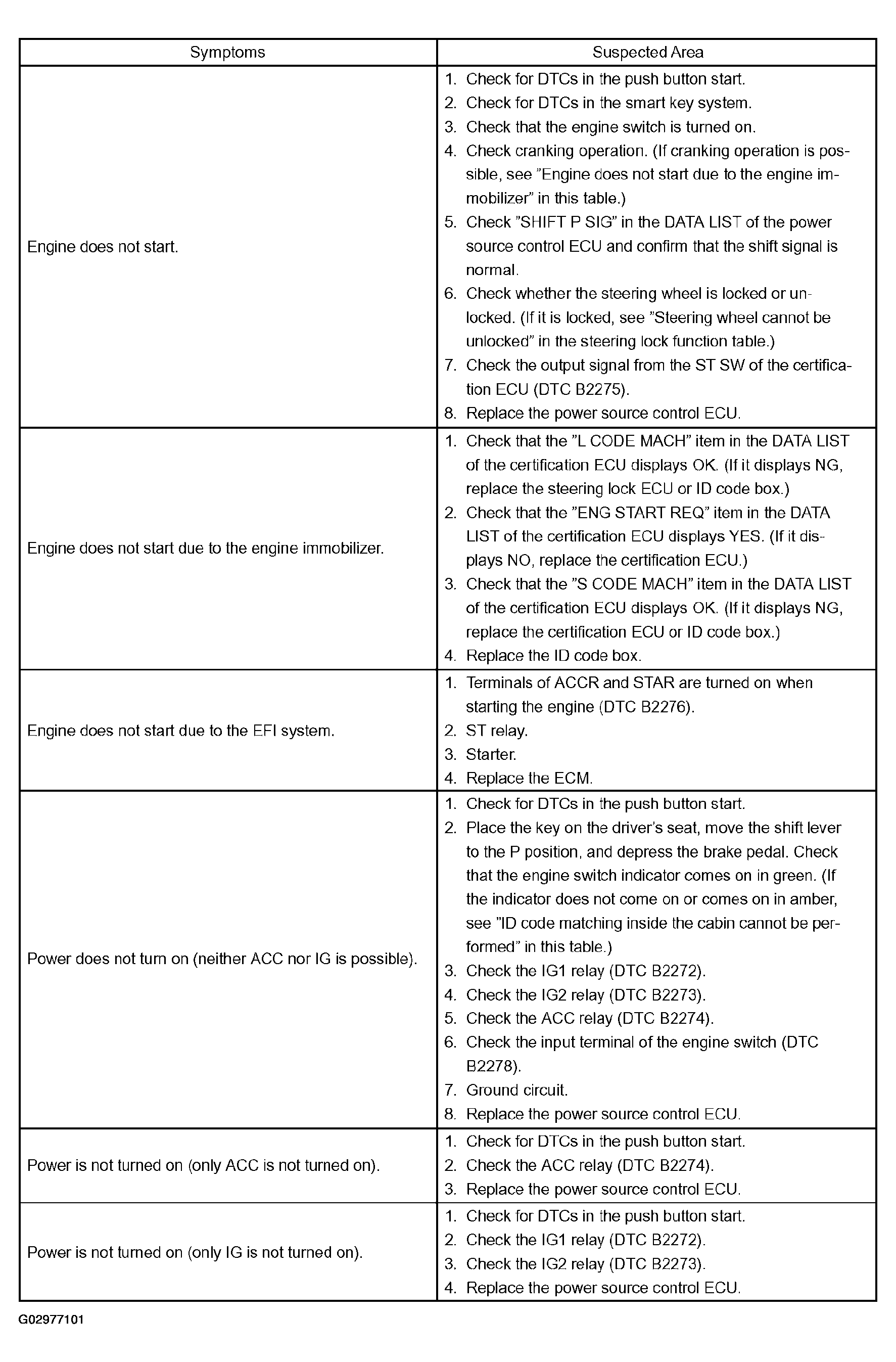

Fig 1: Push Button Start Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
