Problem Symptoms Table
›
Steering Lock Function
Steering Lock Function

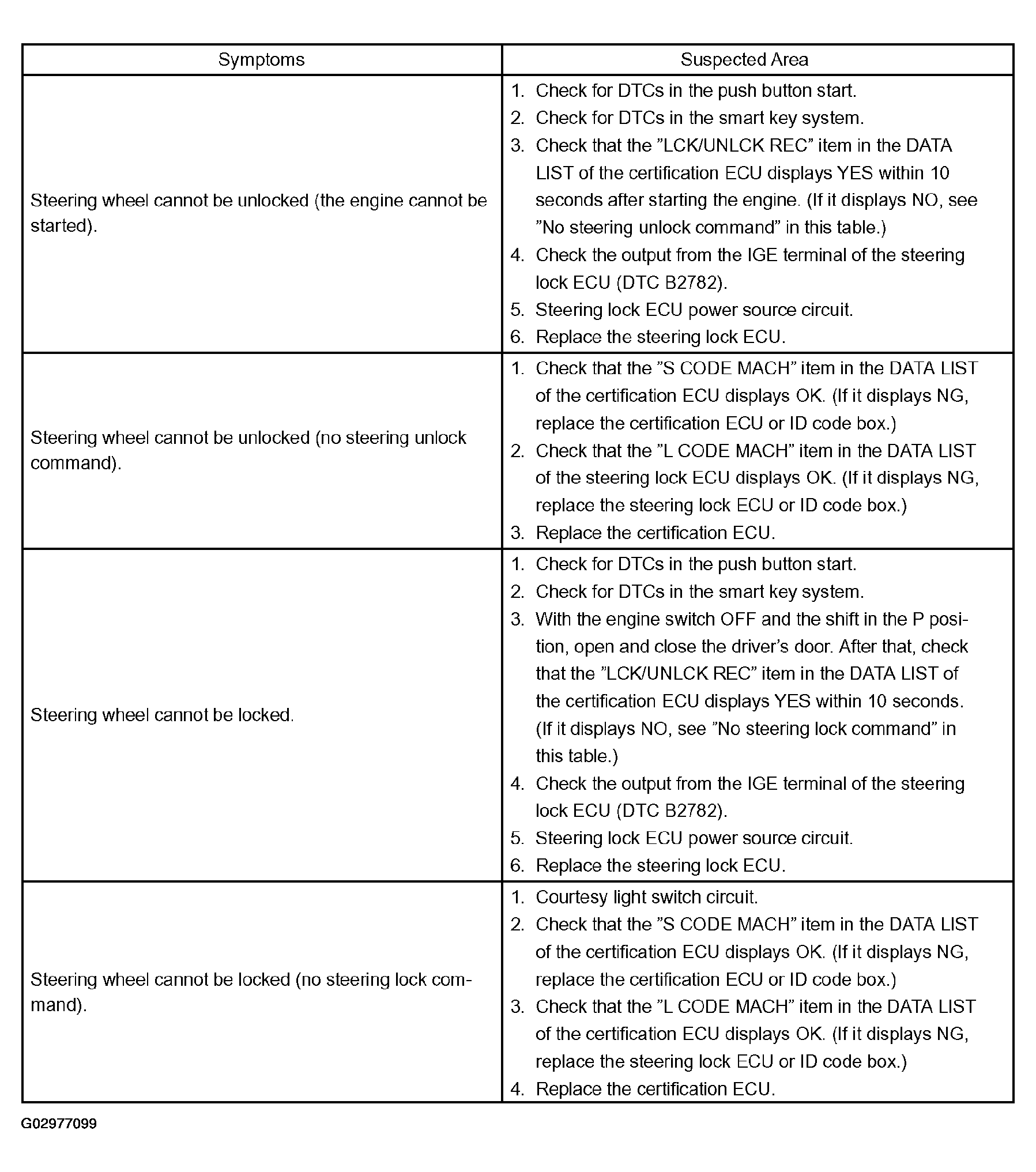

Fig 1: Steering Lock Function Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
