Wireless Door Lock Function

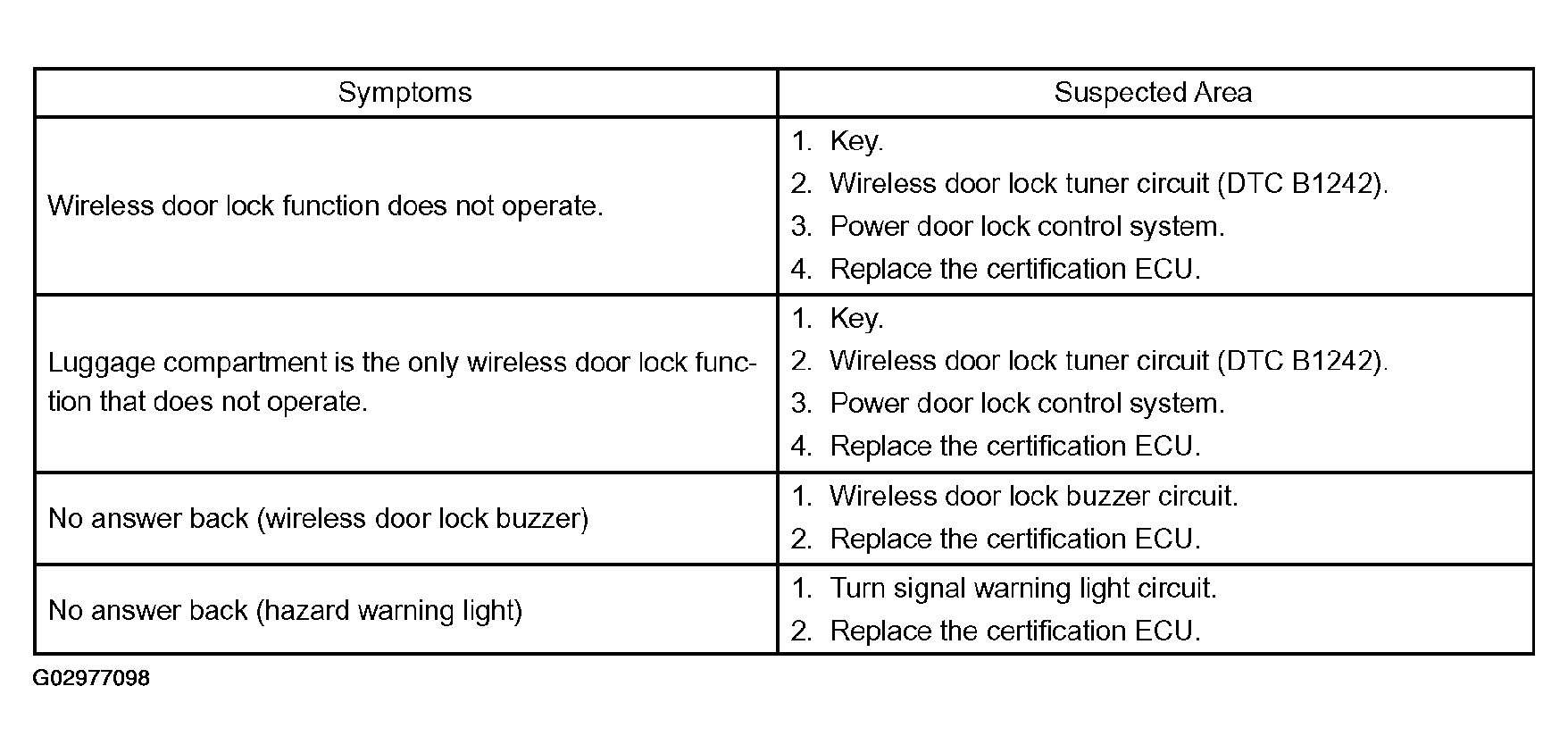

Fig 1: Wireless Door Lock Function Problem Symptoms Chart
G02977098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
