Engine Immobilizer Function

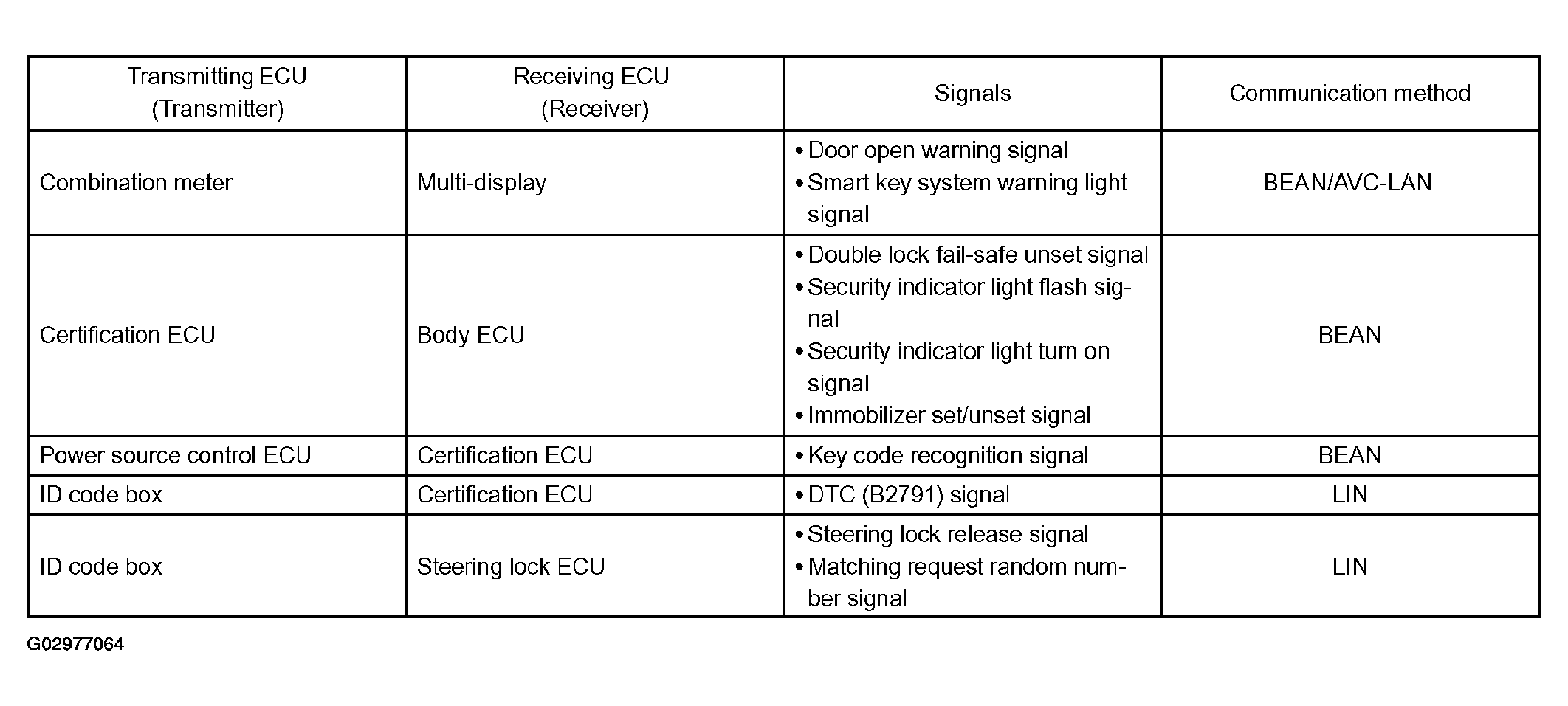

Fig 1: Engine Immobilizer Function Signals And Communication Method Chart
G02977064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
