Entry Function

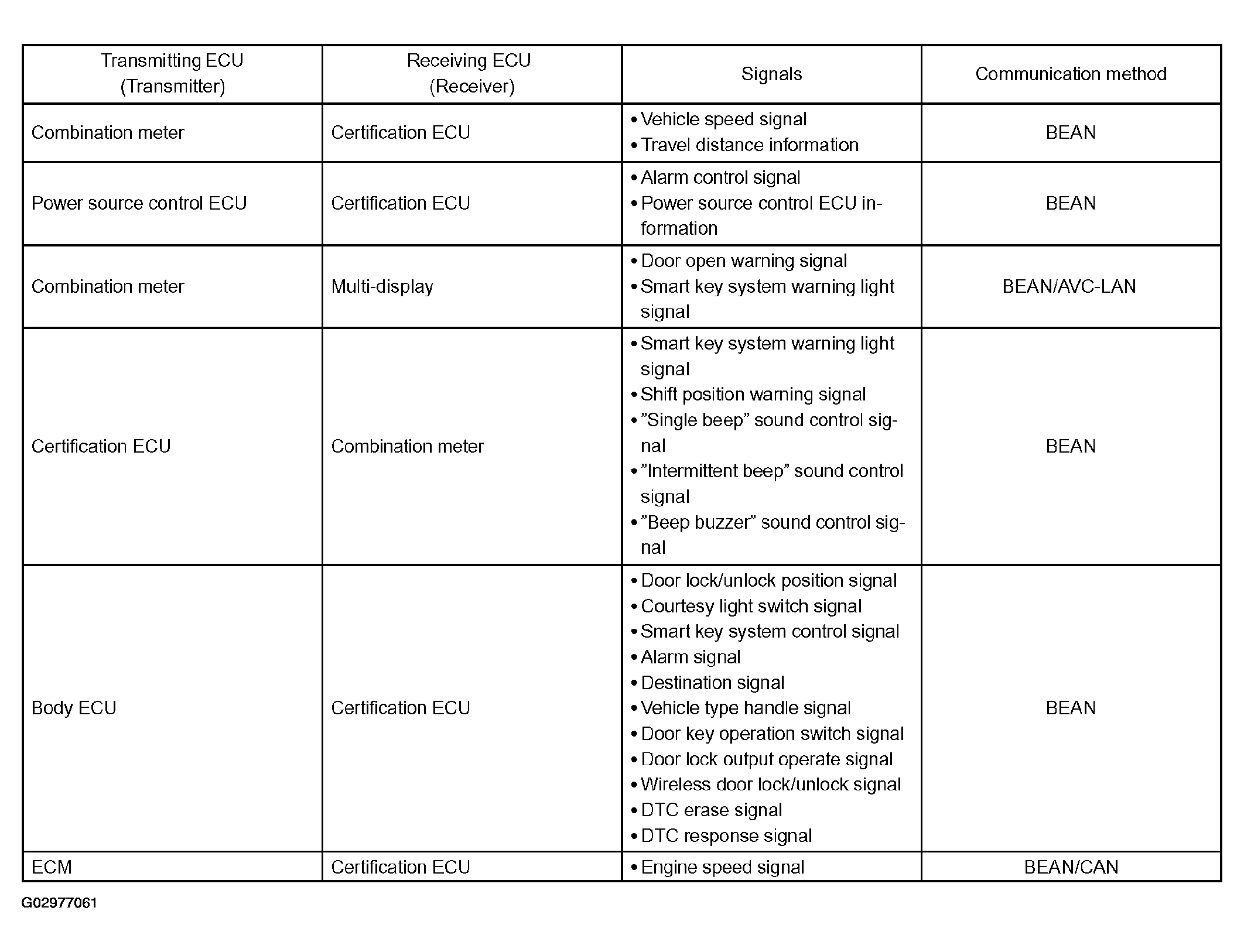

Fig 1: Entry Function Signals And Communication Method Chart
G02977061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
