Inspection Procedure

HINT:

Start the inspection from step 1 when using the hand-held tester and start from step  2 when not using the hand-held tester.

1. READ VALUE ON HAND-HELD TESTER (IGNITION SWITCH)
   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch on (IG) and turn the hand-held tester main switch on.
   3. Select the items below in the "DATA LIST" and read the display on the hand-held tester.

      BODY:

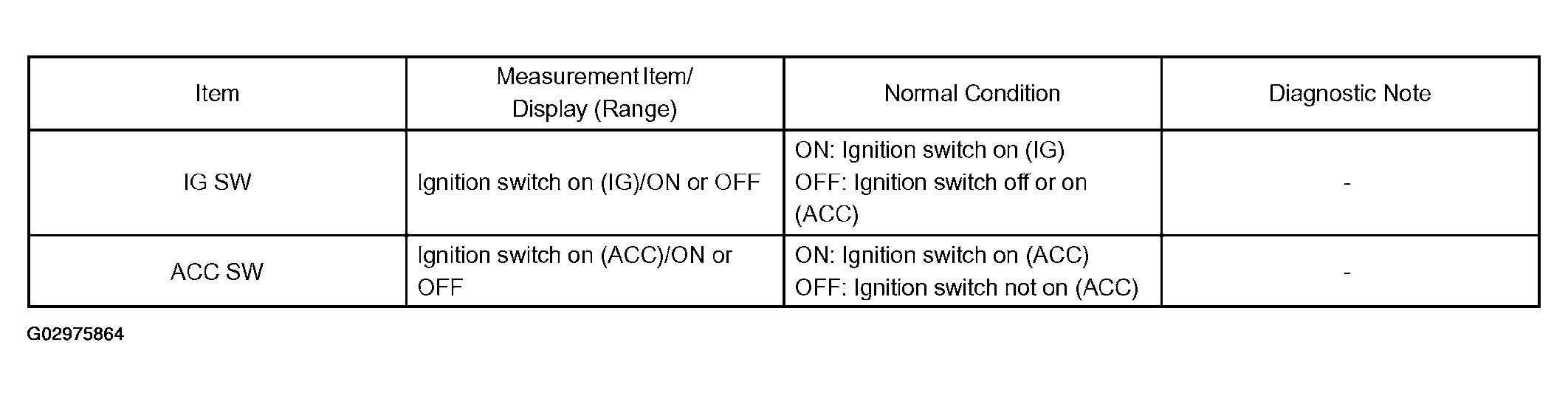

      Fig 1: Ignition Switch Body Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      When the ignition switch is operated, the display changes as shown above.

   1. NG: Go to step 2
   2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE   )
2. INSPECT MULTIPLEX NETWORK BODY ECU (IG AND ACC TERMINALS)
   1. Turn the ignition switch off.
   2. Disconnect the instrument panel J/B (II) connector.
   3. Measure the voltage according to the value (s) in MULTIPLEX NETWORK BODY ECU (IG AND ACC TERMINALS)  .

      Standard:

      MULTIPLEX NETWORK BODY ECU (IG AND ACC TERMINALS)



      Tester Connection	Condition	Specified Condition
      II-9 (IG) - Body ground	Ignition switch off	Below 1 V
      II-9 (IG) - Body ground	Ignition switch on (IG)	10 to 14 V
      II-3 (ACC) - Body ground	Ignition switch off	Below 1 V
      II-3 (ACC) - Body ground	Ignition switch on (ACC)	10 to 14 V

      Fig 2: Inspecting Multiplex Network Body ECU (IG And ACC Terminals)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IG OR ACC CIRCUIT)
   2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE   )
