Wireless Door Lock Control System: Registration

HINT:

• Register the recognition code if the door control transmitter or the door control receiver has been replaced.
• Add mode is used to register new recognition codes while still retaining codes already registered. This mode is used when a new transmitter is added. If the number of registered codes exceeds 4, the previously registered codes will be erased in order, starting from the oldest registered code.
• Rewrite mode is used to erase all the previously registered recognition codes in order to register all-new recognition codes. This mode is used when the transmitter or the door control receiver is exchanged for a new one.
• Confirmation mode is used to confirm the number of recognition codes already registered before another recognition code is registered.
• Prohibition mode is used to erase all the registered codes and disable the wireless door lock function. This mode is used when the transmitter is lost.
• All the following registration procedures must be performed in order.

1. REGISTER RECOGNITION CODE

   USING HAND-HELD TESTER:

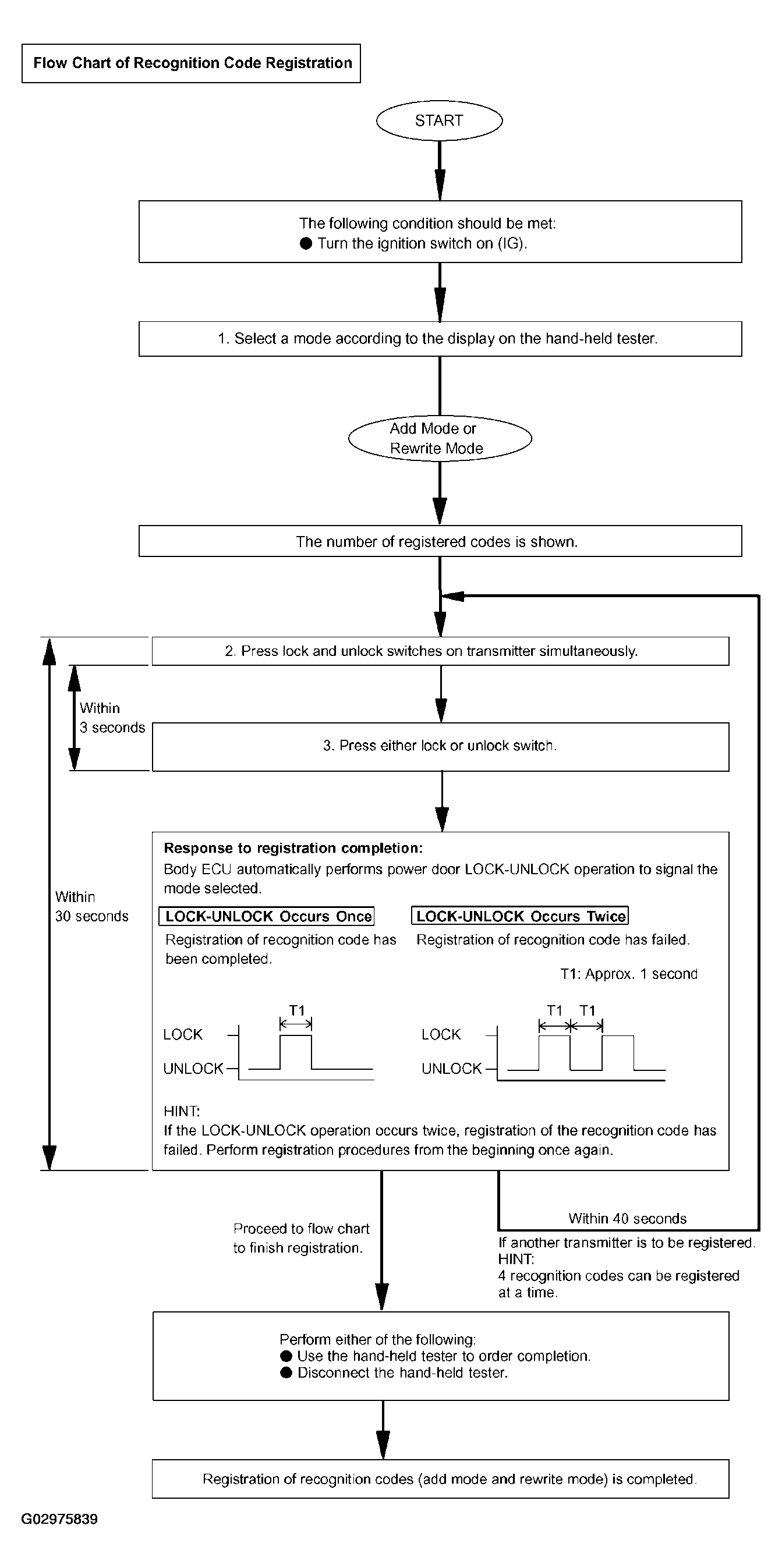

   Fig 1: Recognition Code Registration Flow Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REGISTER RECOGNITION CODE

   MANUAL OPERATION:

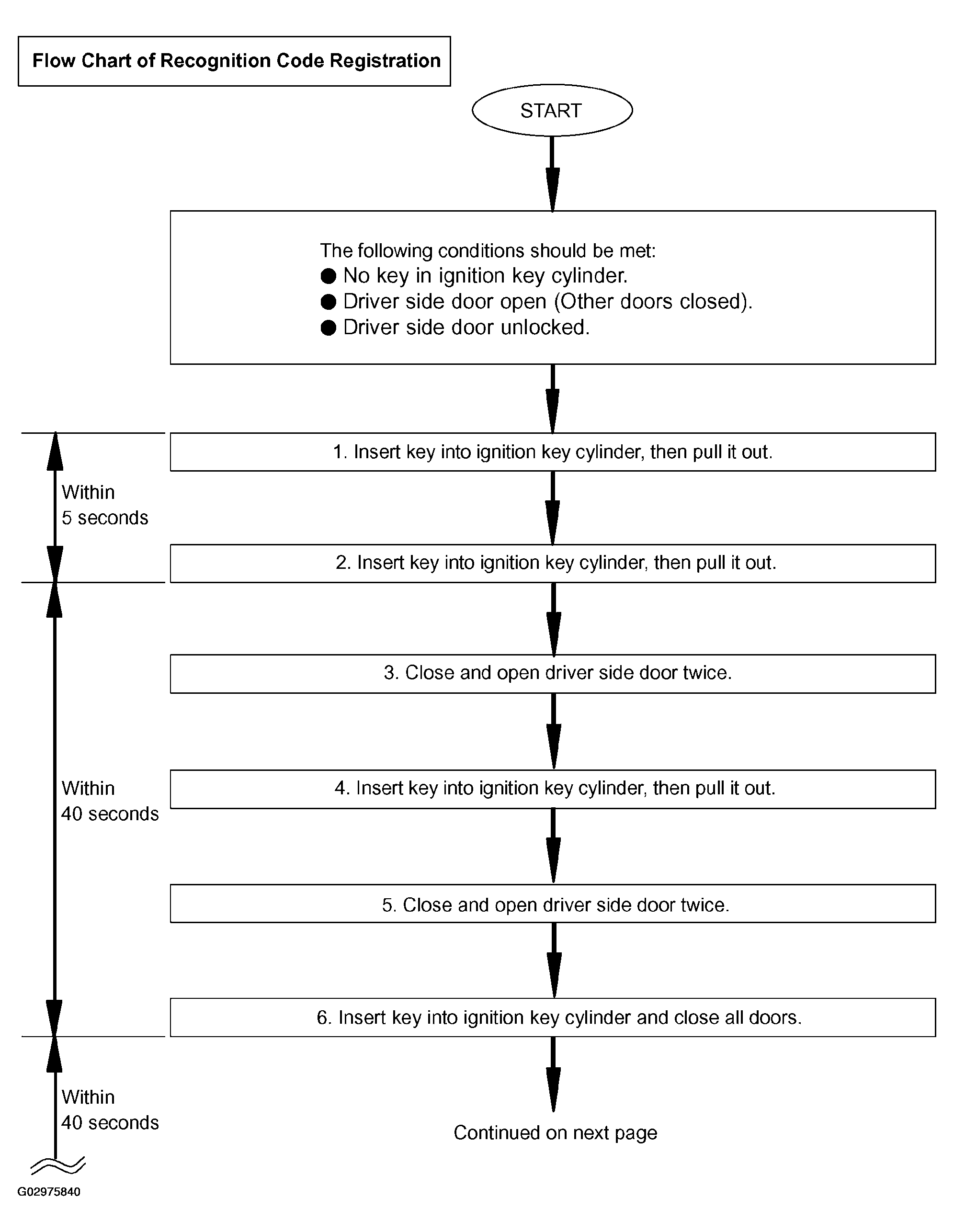

   Fig 2: Register Recognition Code Manual Operation Flow Chart (1 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

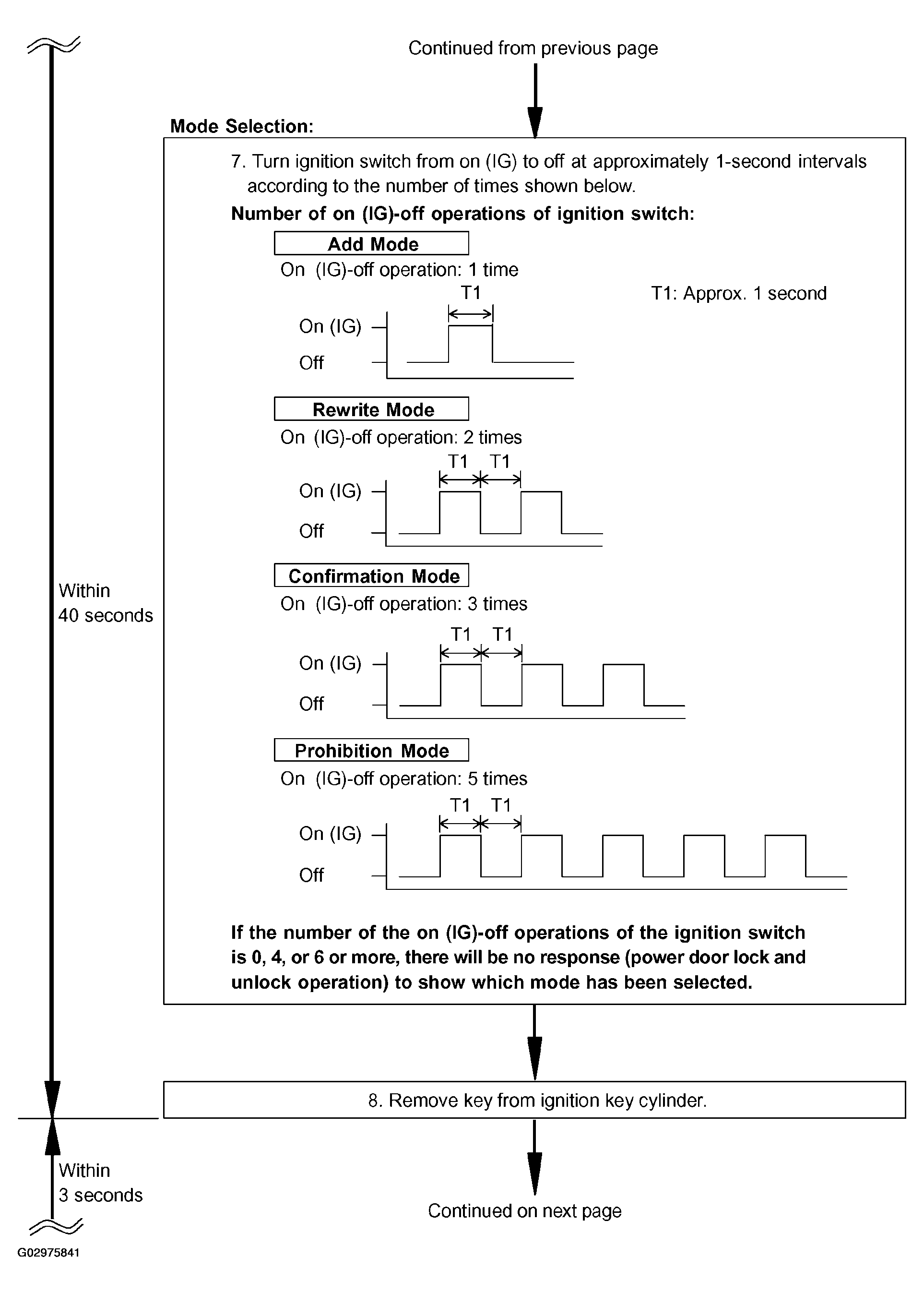

   Fig 3: Register Recognition Code Manual Operation Flow Chart (2 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

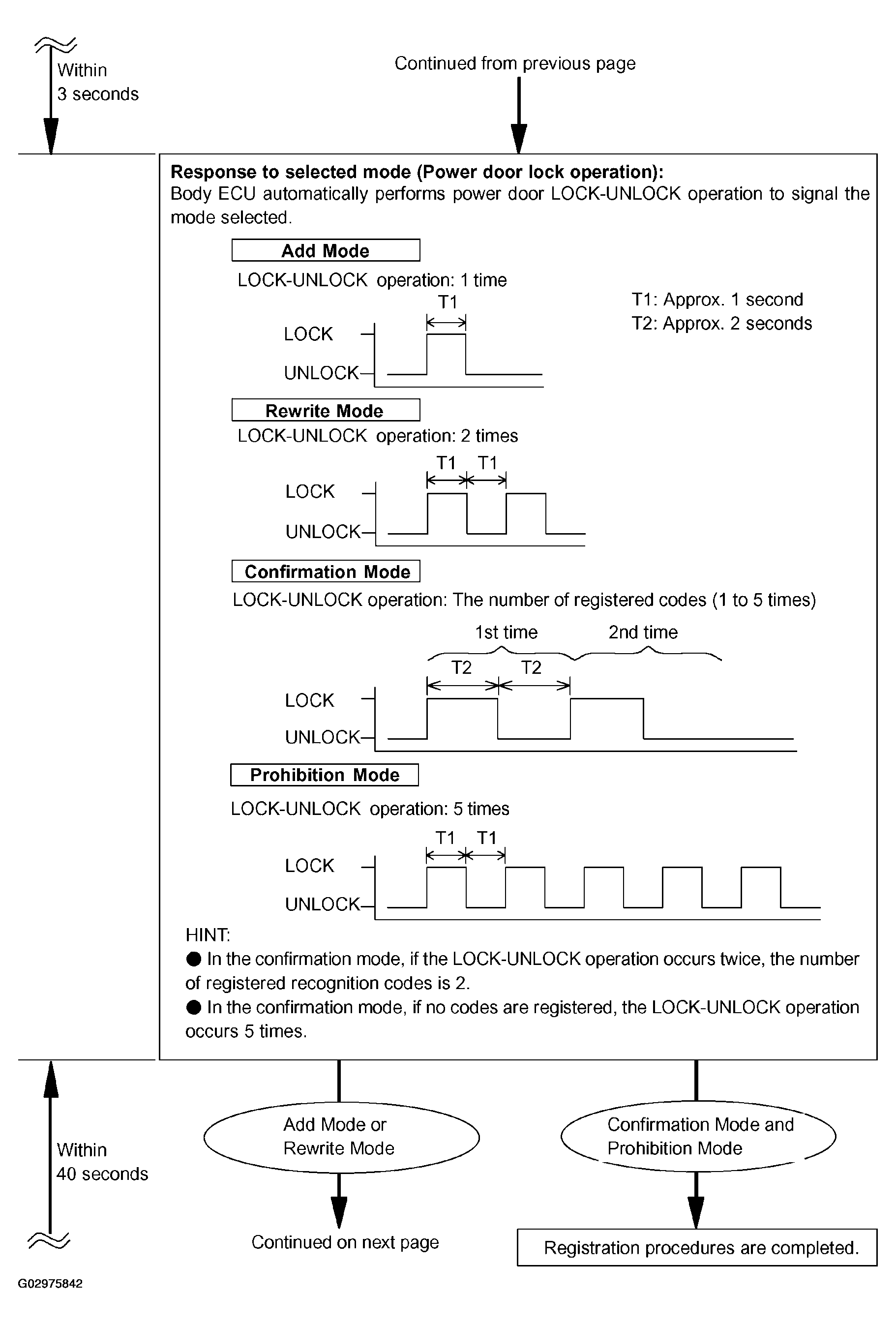

   Fig 4: Register Recognition Code Manual Operation Flow Chart (3 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

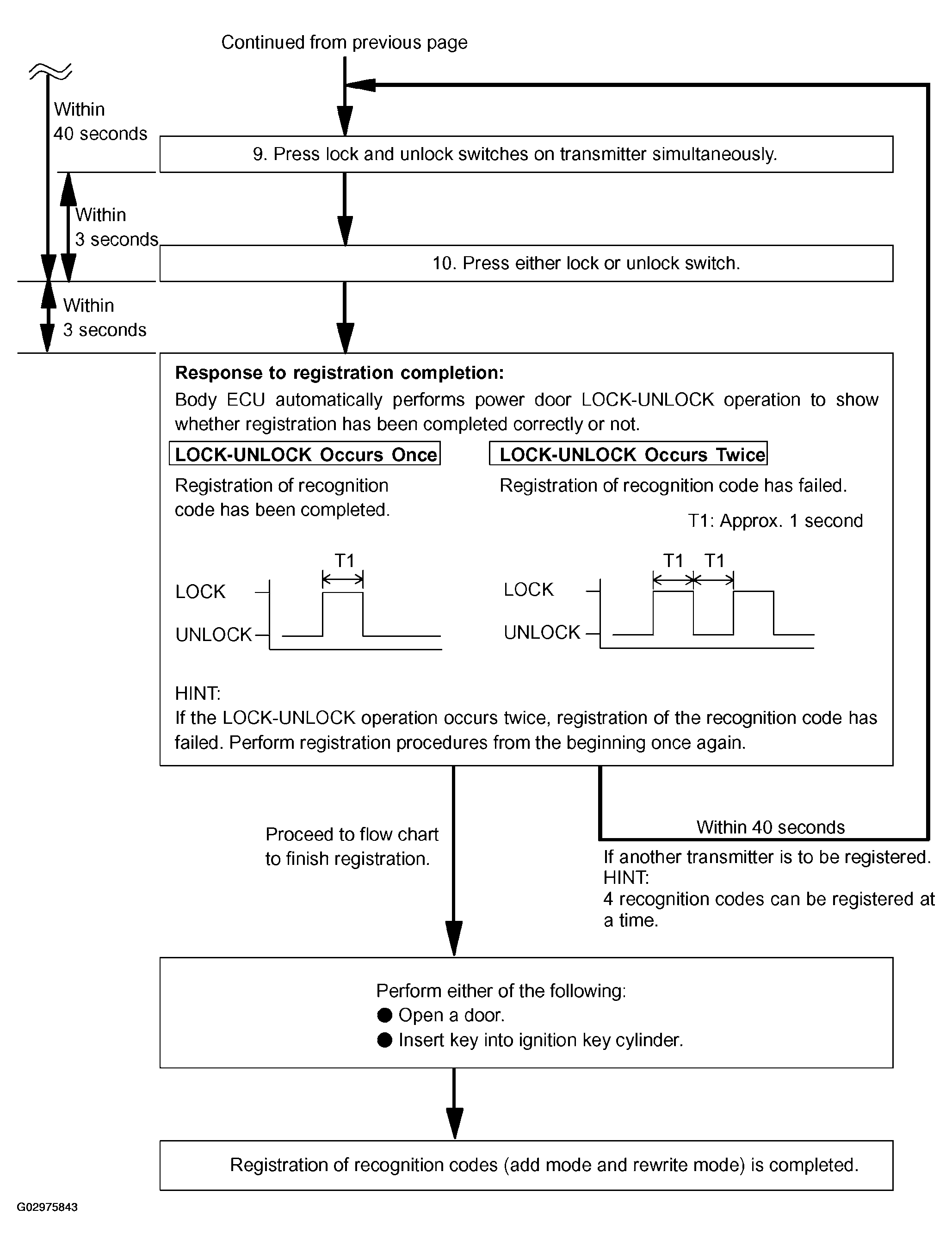

   Fig 5: Register Recognition Code Manual Operation Flow Chart (4 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
