Data List/Active Test

HINT:

By accessing the DATA LIST displayed on the hand-held tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to shorten labor time.

1. Connect the hand-held tester to the DLC3.
2. Turn the engine switch on (IG) and turn the hand-held tester on.
3. Operate the hand-held tester according to the steps on the display and select "DATA LIST".

   Certification ECU:

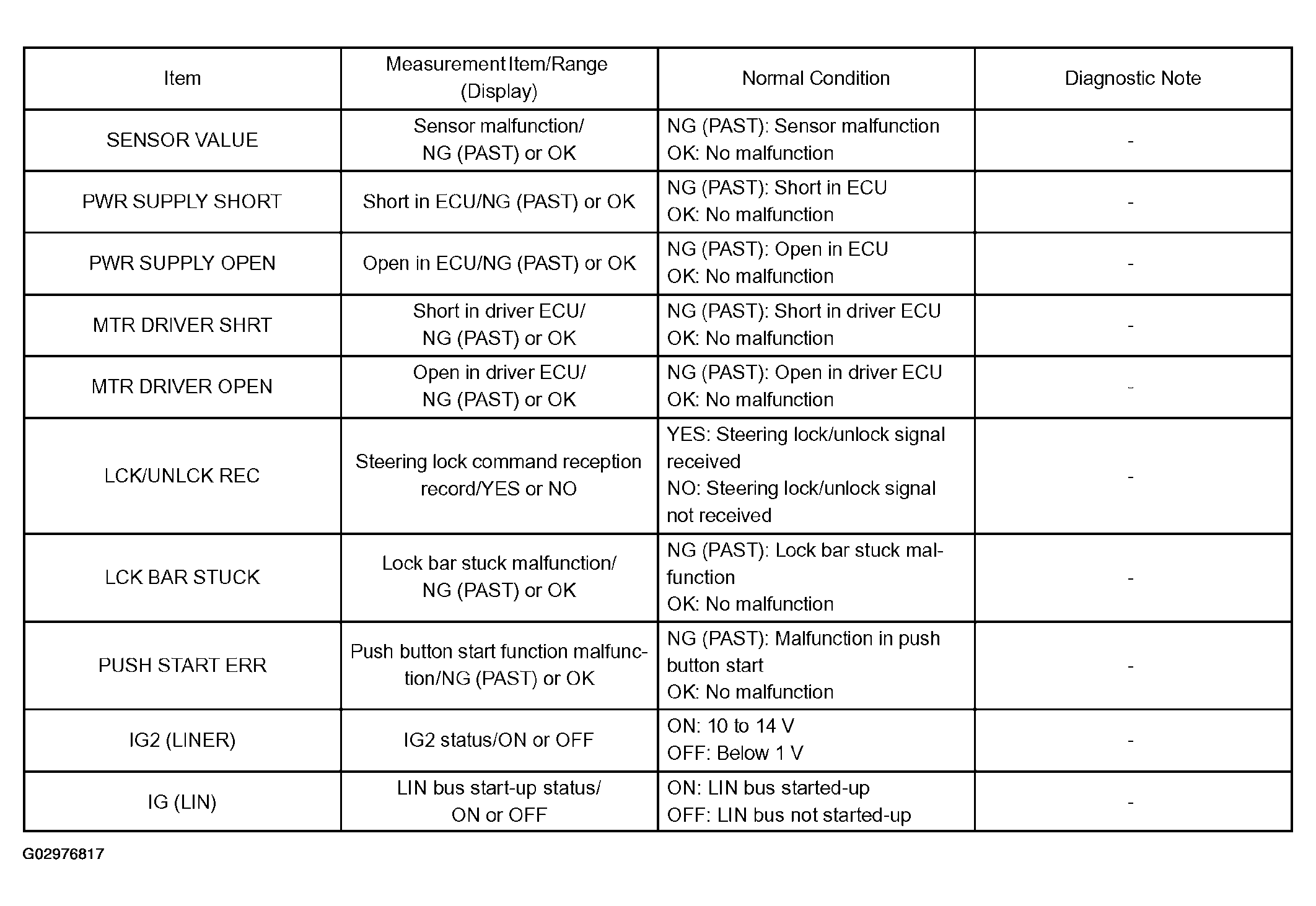

   Fig 1: Data List Item Reference Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST is one of the methods to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the engine switch on (IG) and turn the hand-held tester on.
3. Following the display on the hand-held tester, perform the "ACTIVE TEST".

   Certification ECU:

   ACTIVE TEST REFERENCE



   Item	Test Details	Diagnostic Note
   SECURITY INDIC	Security Indicator/ON or OFF	-
