Push Button Start - Diagnostics
›
Engine Switch Indicator Light Circuit
›
Wiring Diagram
Engine Switch Indicator Light Circuit: Wiring Diagram

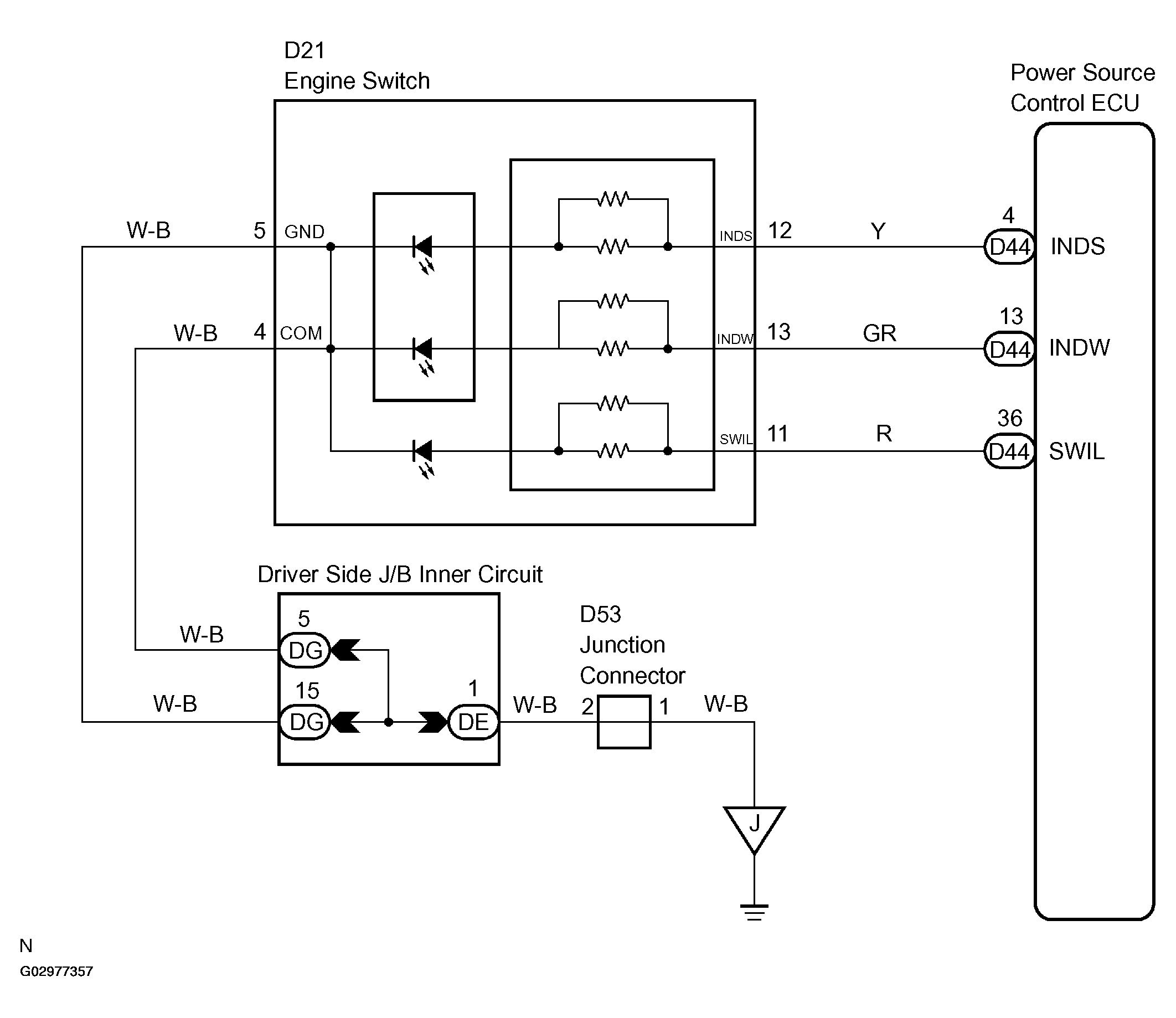

Fig 1: Engine Switch Indicator Light Circuit Wiring Diagram
