Front Power Seat Control System (W-Memory): Location

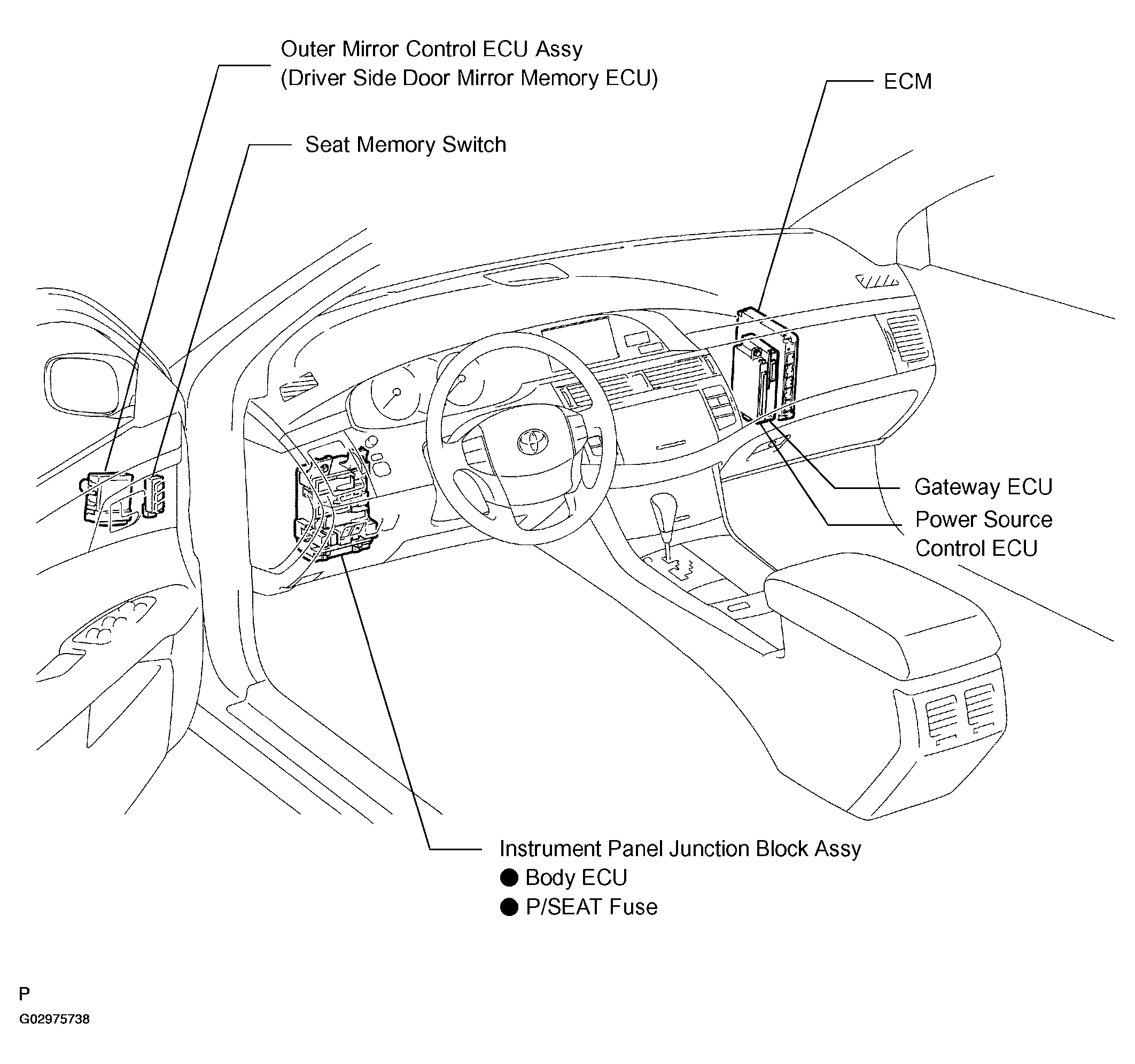

Fig 1: Front Power Seat Control System Components Location (1 Of 2)
G02975738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

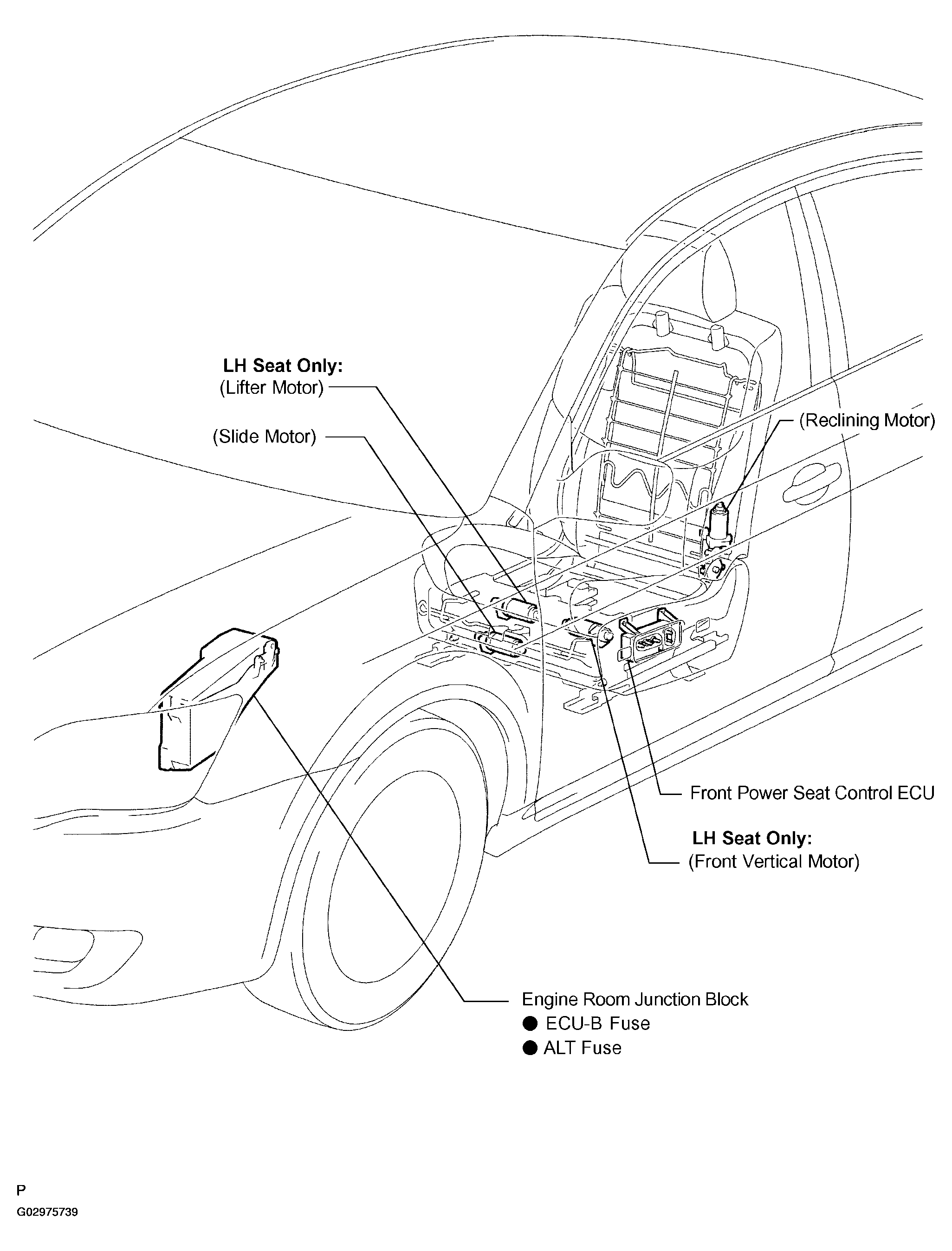

Fig 2: Front Power Seat Control System Components Location (2 Of 2)
G02975739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
