Power Window Control System
›
Auto Up/Down Function Circuit (Front Passenger Side)
›
Wiring Diagram
Auto Up/Down Function Circuit (Front Passenger Side): Wiring Diagram

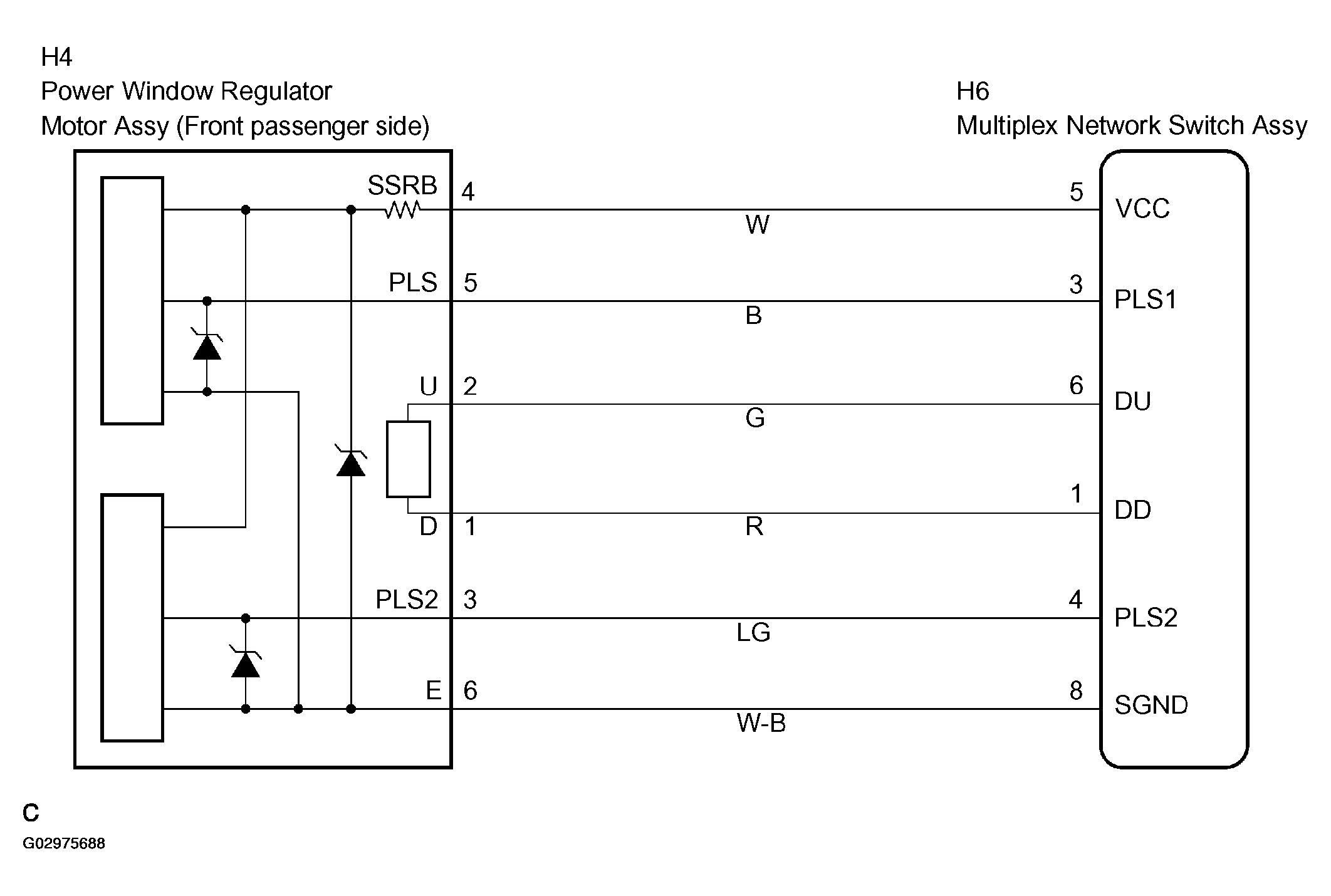

Fig 1: Auto Up/Down Function Wiring Diagram - Front Passenger Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
