Power Window Control System
›
Power Source Circuit (Multiplex Network Master Switch ASSY)
›
Wiring Diagram
Power Source Circuit (Multiplex Network Master Switch ASSY): Wiring Diagram

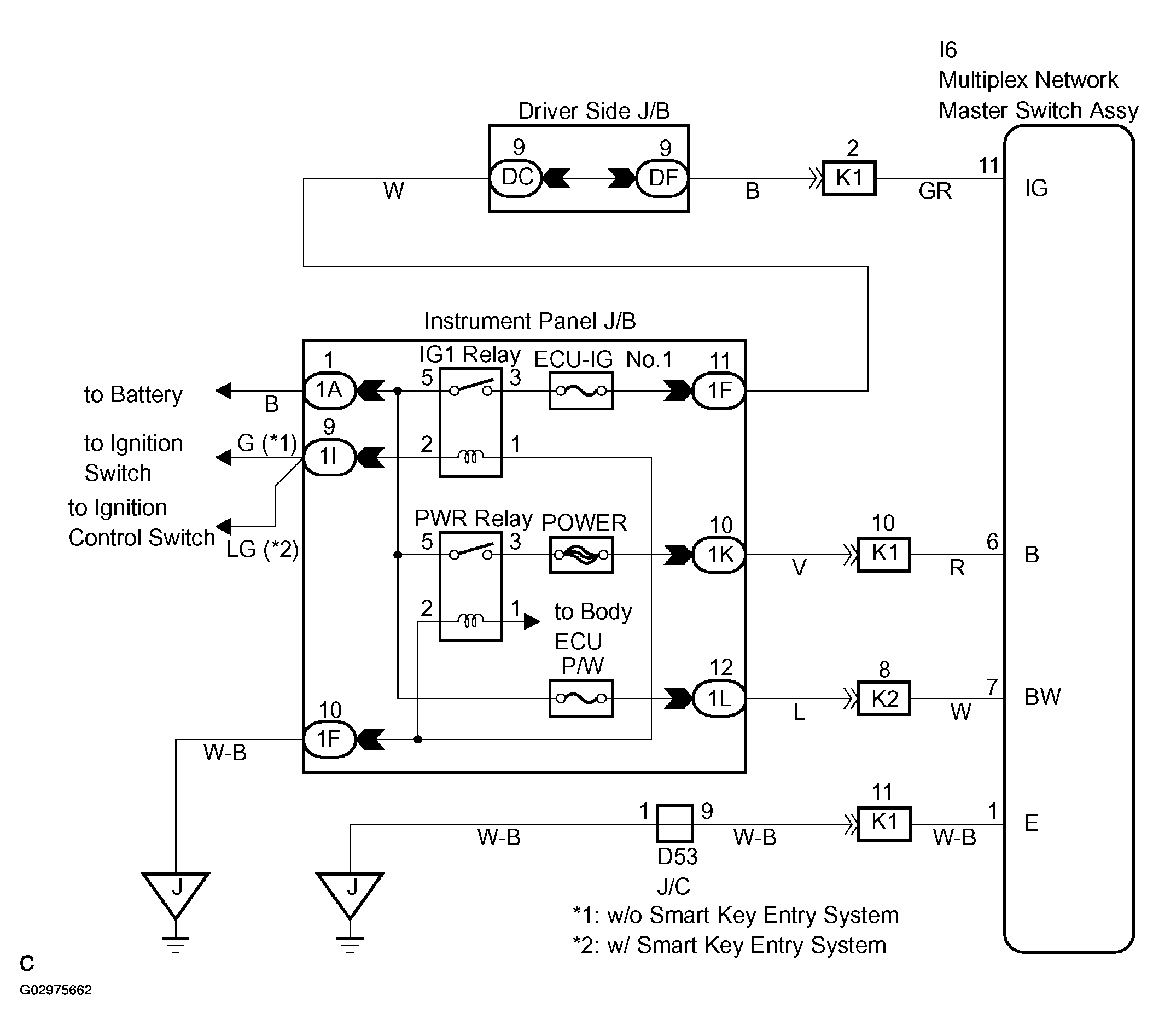

Fig 1: Power Source Wiring Diagram - Multiplex Network Master Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
