Power Window Control System
›
Power Window Motor Circuit (Driver Side)
›
Wiring Diagram
Power Window Motor Circuit (Driver Side): Wiring Diagram

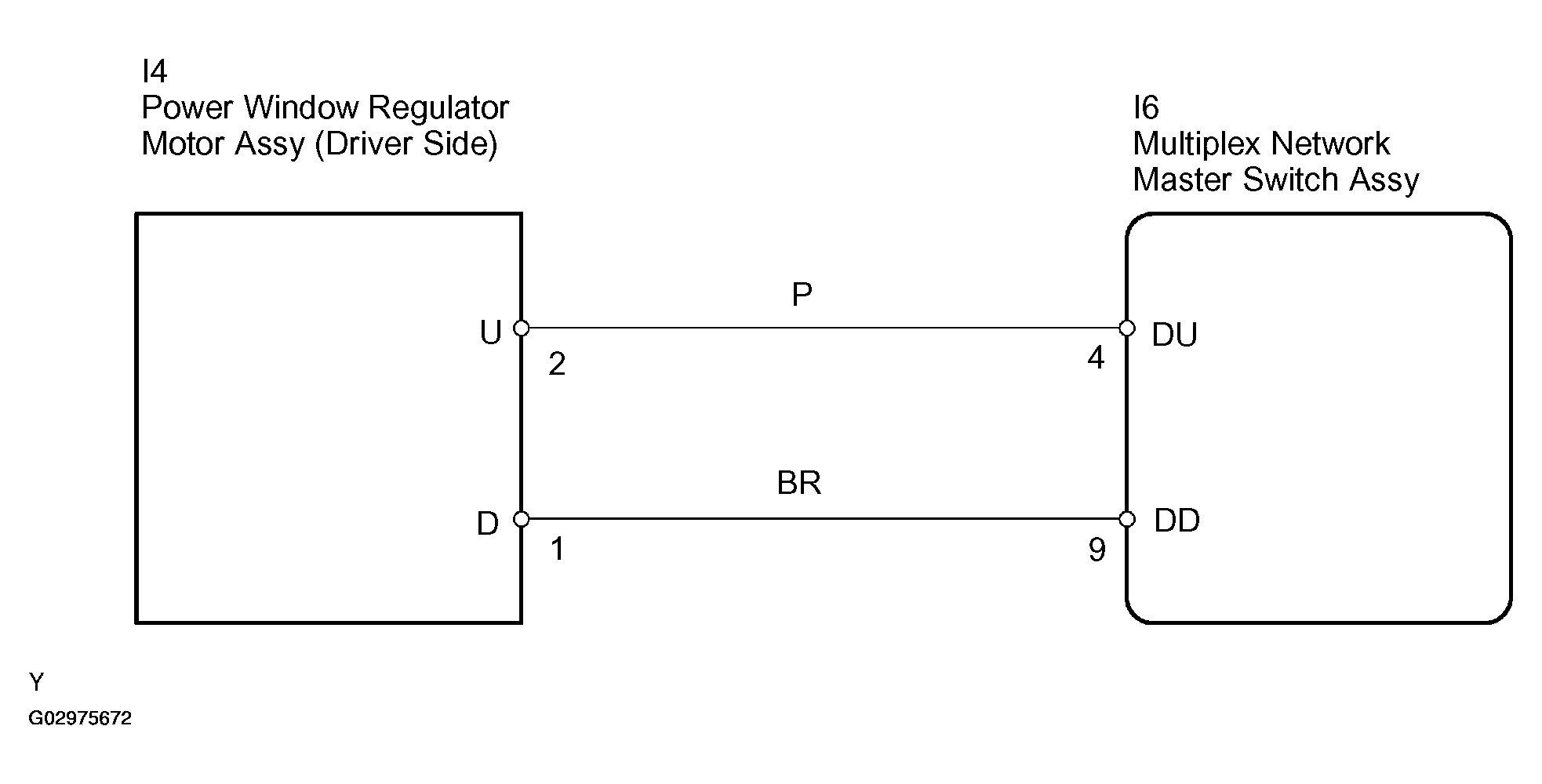

Fig 1: Power Window Motor Wiring Diagram - Driver Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
