Power Window Control System
›
Power Window Switch Circuit (Multiplex Network Switch ASSY)
›
Wiring Diagram
Power Window Switch Circuit (Multiplex Network Switch ASSY): Wiring Diagram

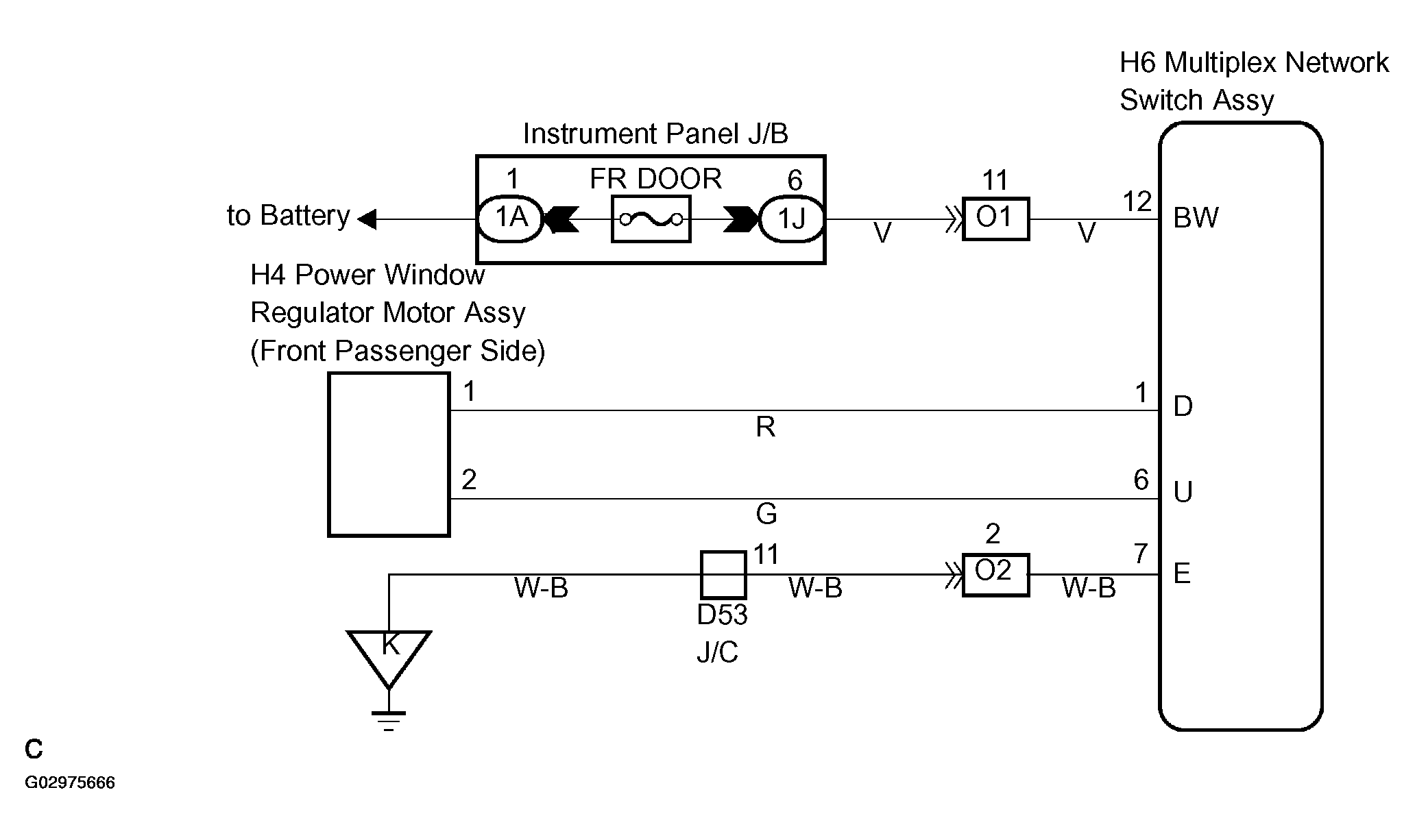

Fig 1: Power Window Switch Wiring Diagram - Multiplex Network Switch Assy
