Problem Symptoms Table

  1. POWER MIRROR CONTROL SYSTEM (W/O MEMORY)
    Fig 1: Power Mirror Control System (W/O Memory) Problem Symptoms Chart
    G02972677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. POWER MIRROR CONTROL SYSTEM (w/MEMORY)

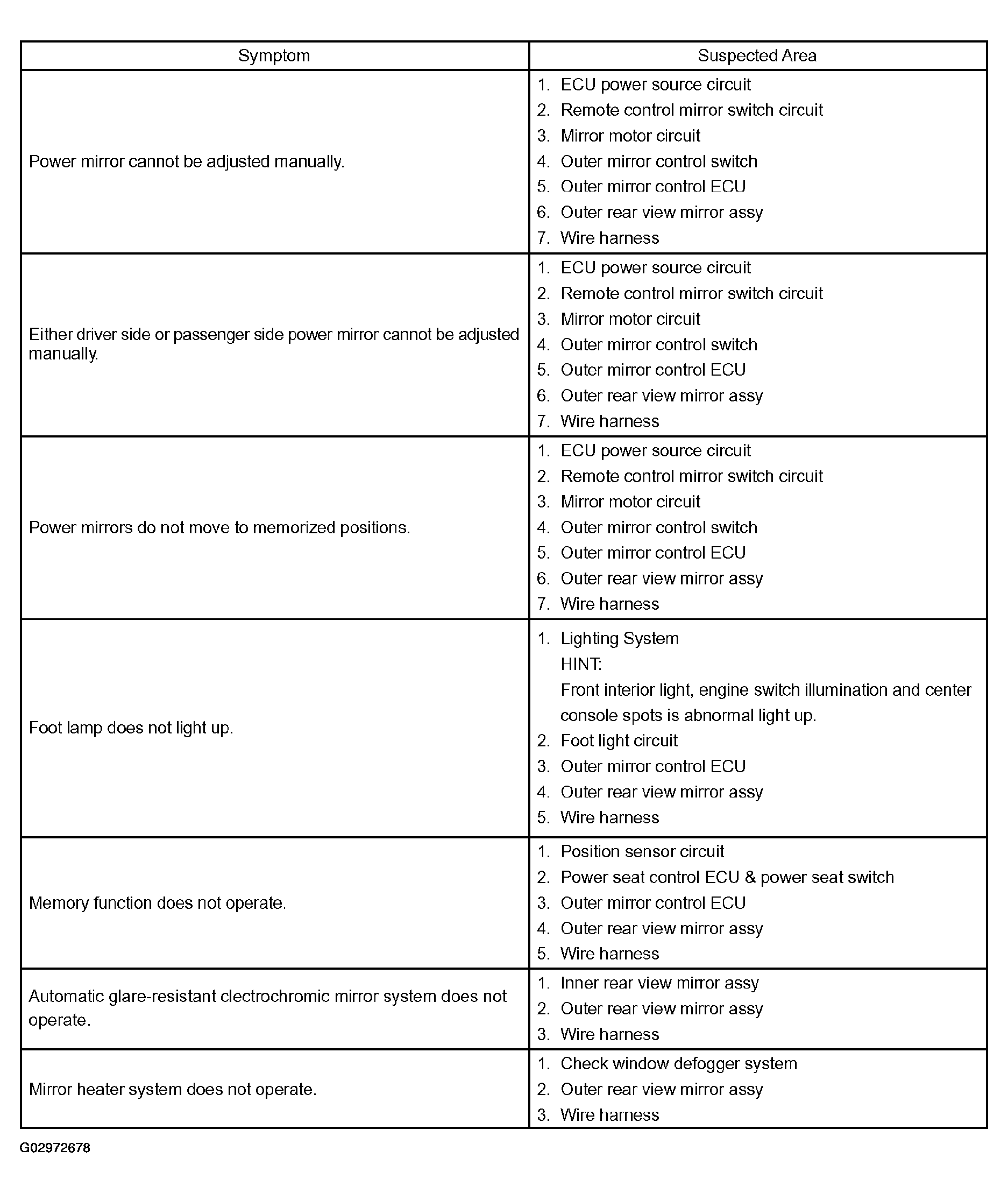

    Fig 2: Power Mirror Control System (w/Memory) Problem Symptoms Chart
    G02972678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
