System Diagram: Notes

  1. POWER MIRROR CONTROL SYSTEM (w/MEMORY) (SEE  LOCATION  )
  2. POWER MIRROR CONTROL SYSTEM (W/O MEMORY)

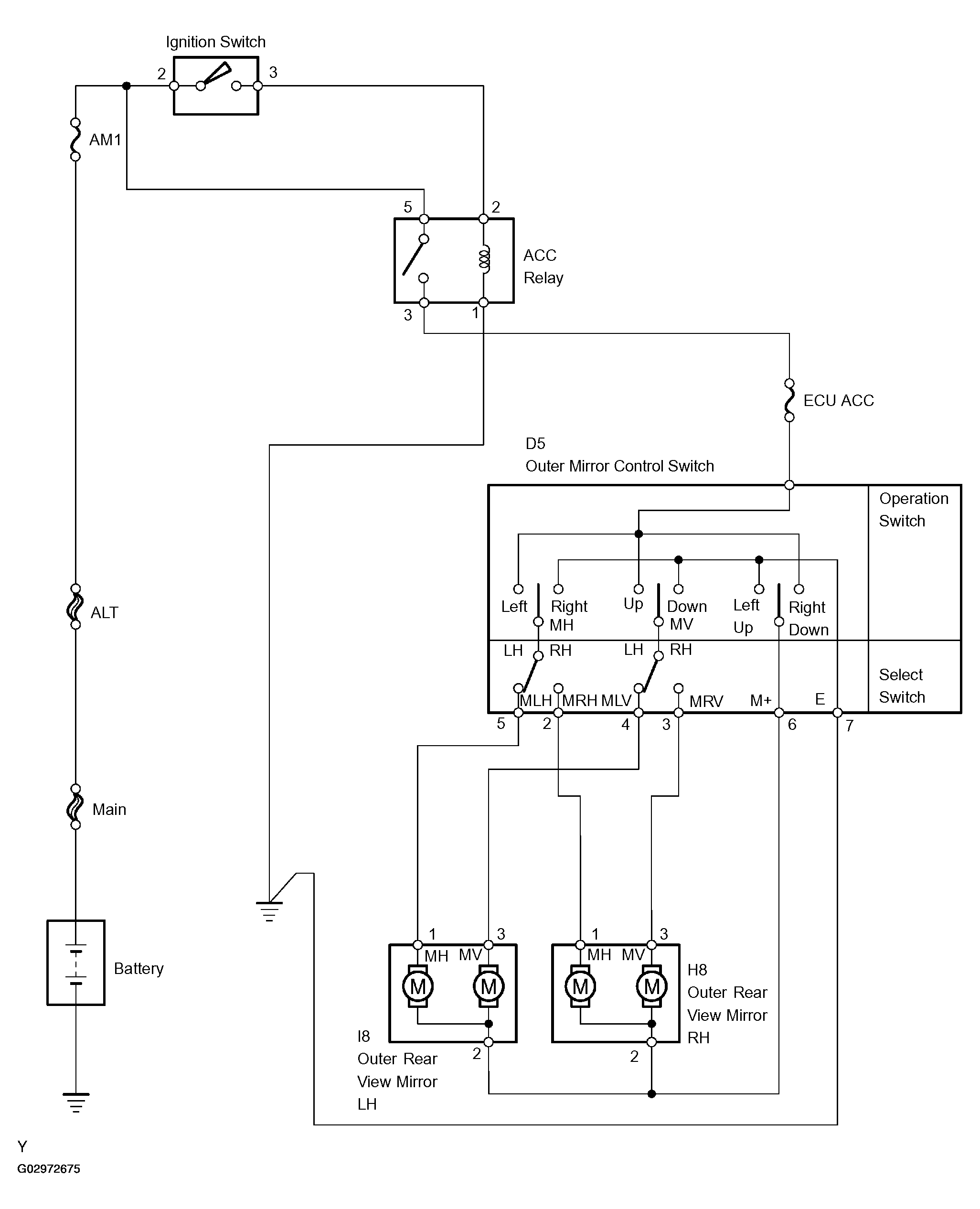

    Fig 1: Power Mirror Control System Diagram
    G02972675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
