System Diagram

COMBINATION METER ASSY

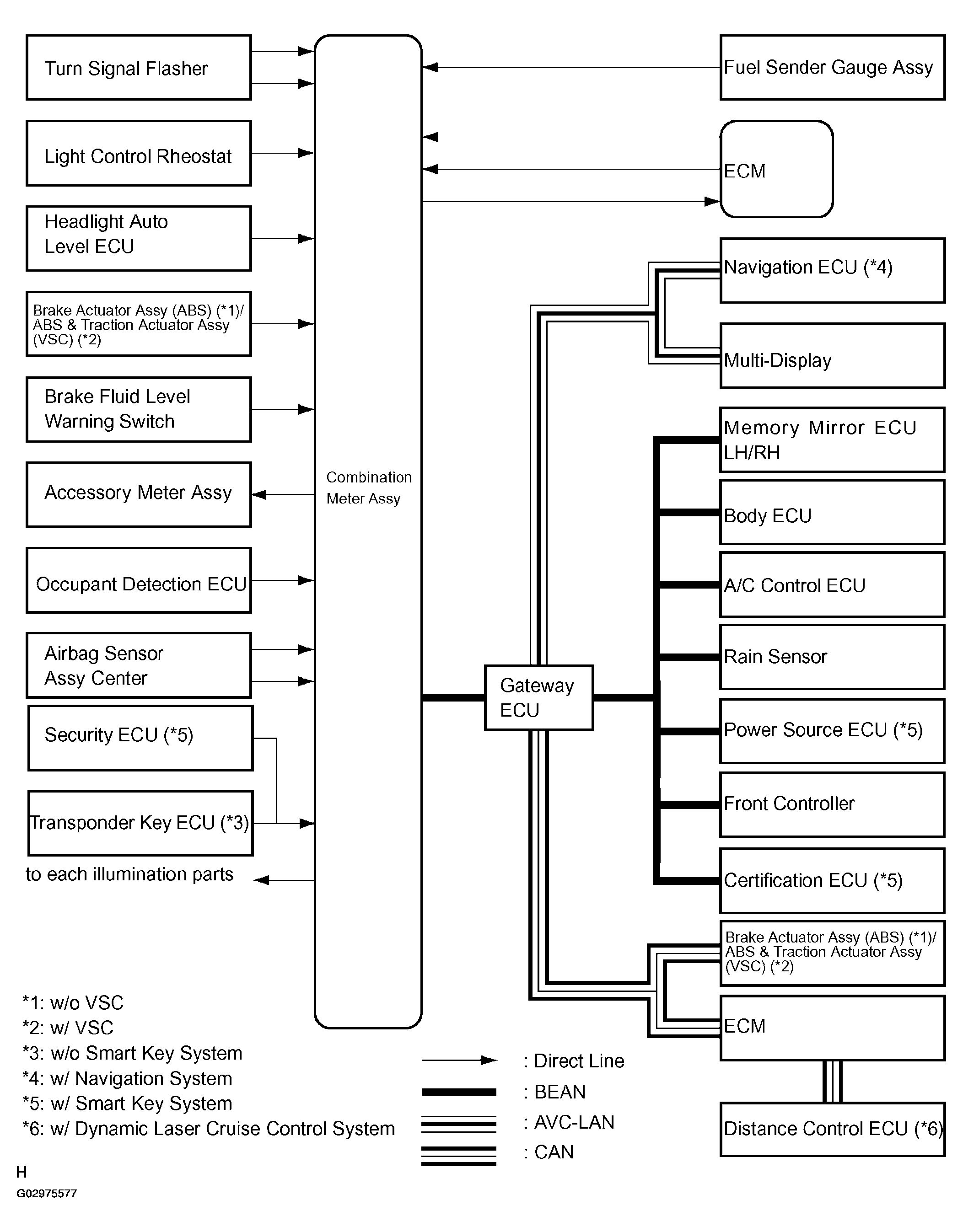

Fig 1: Combination Meter System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GATEWAY:

SIGNALS DESCRIPTION - GATEWAY

Sender	Receiver	Communication Signal	Communication Line
Gateway ECU	Combination Meter Assy	bull Multiplex communication signal	BEAN

HINT:

CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assy through the gateway ECU.

CAN

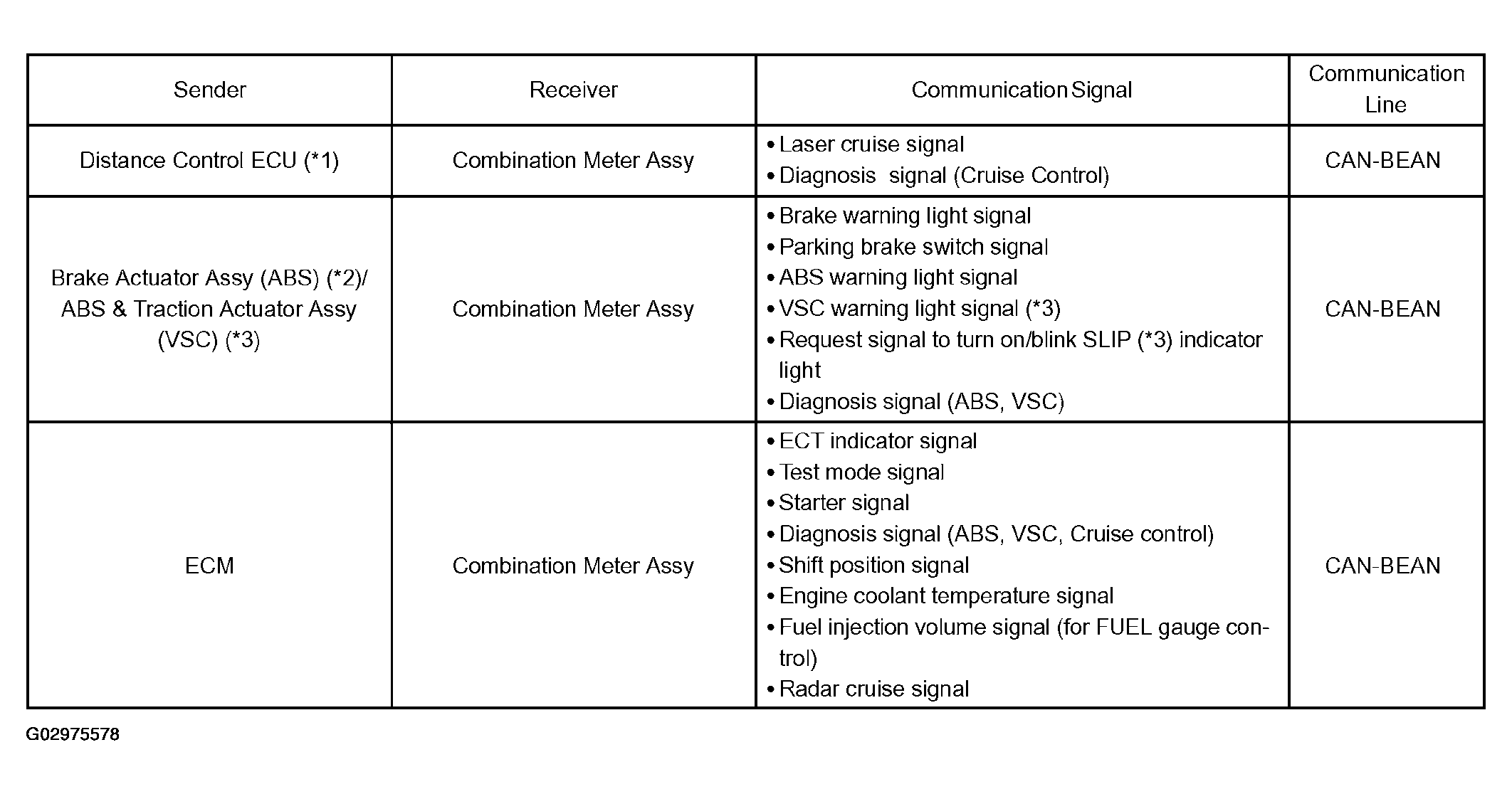

Fig 2: Can Signals & AVC-LAN Signals Description Table - CAN

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

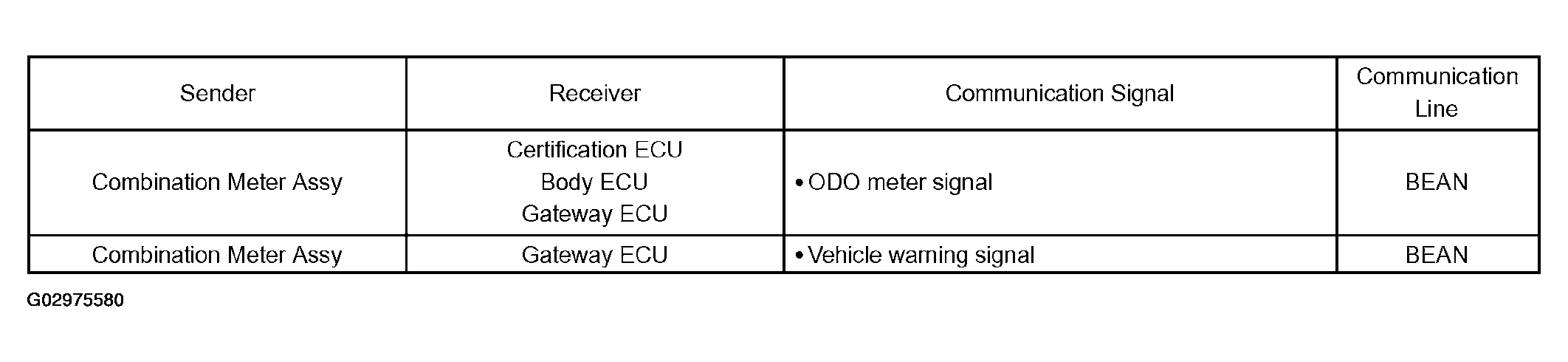

BEAN:

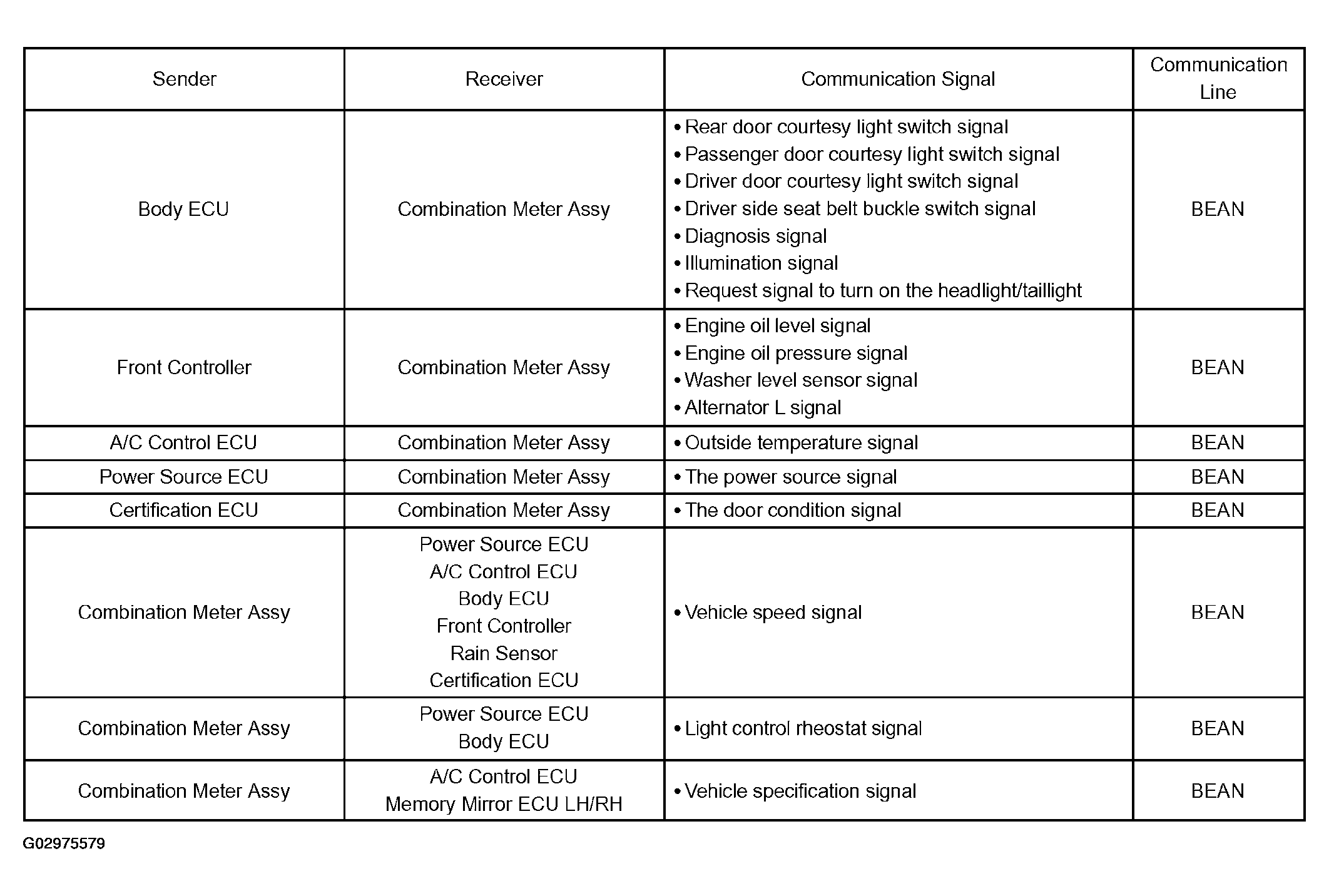

Fig 3: Can Signals & AVC-LAN Signals Description Table - BEAN (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Can Signals & AVC-LAN Signals Description Table - BEAN (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

AVC-LAN:

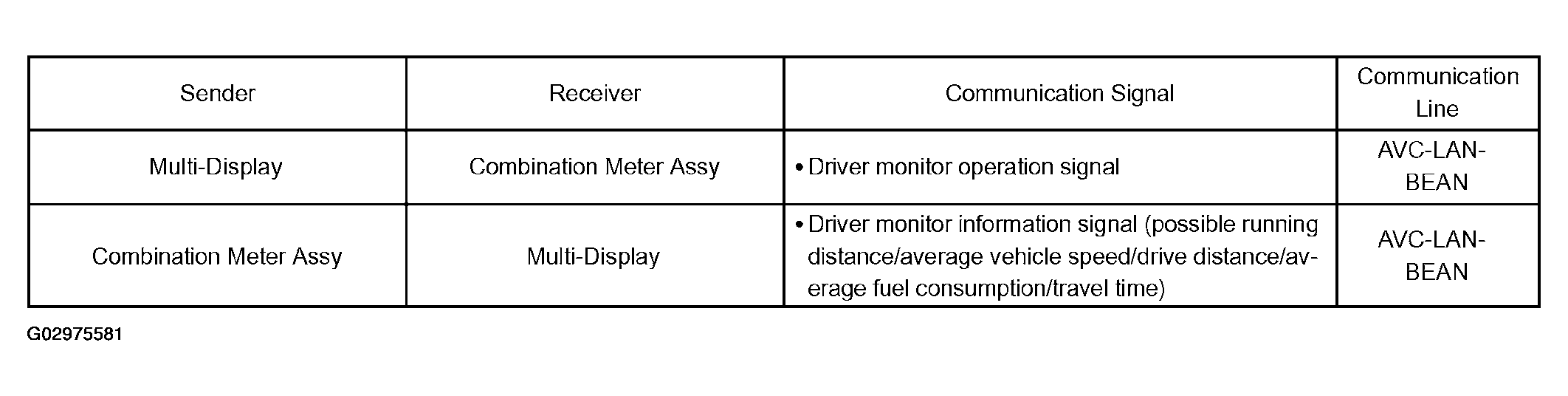

Fig 5: Can Signals & AVC-LAN Signals Description Table - AVC-LAN

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Direct Line

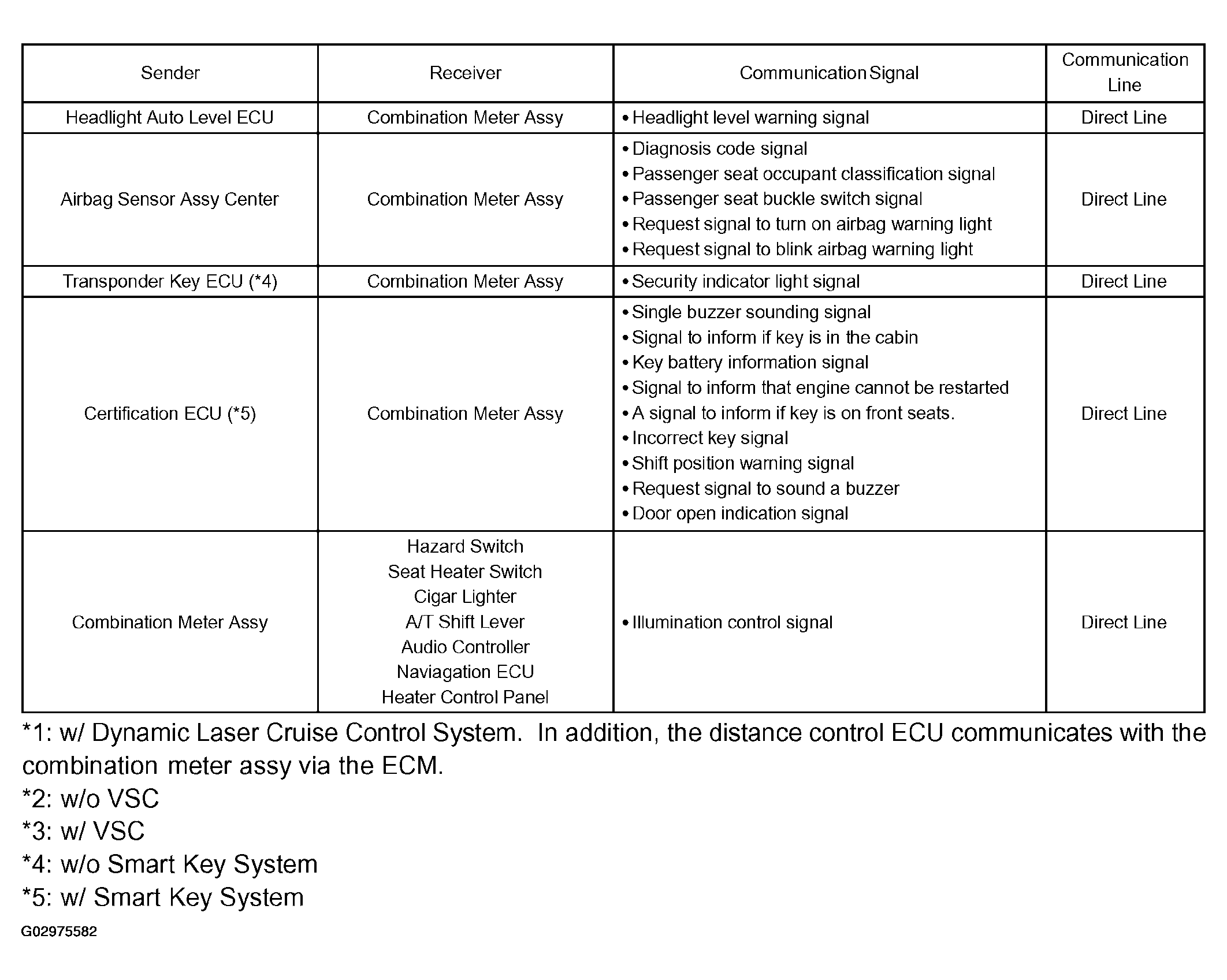

Fig 6: Can Signals & AVC-LAN Signals Description Table - Direct Line

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ACCESSORY METER ASSY

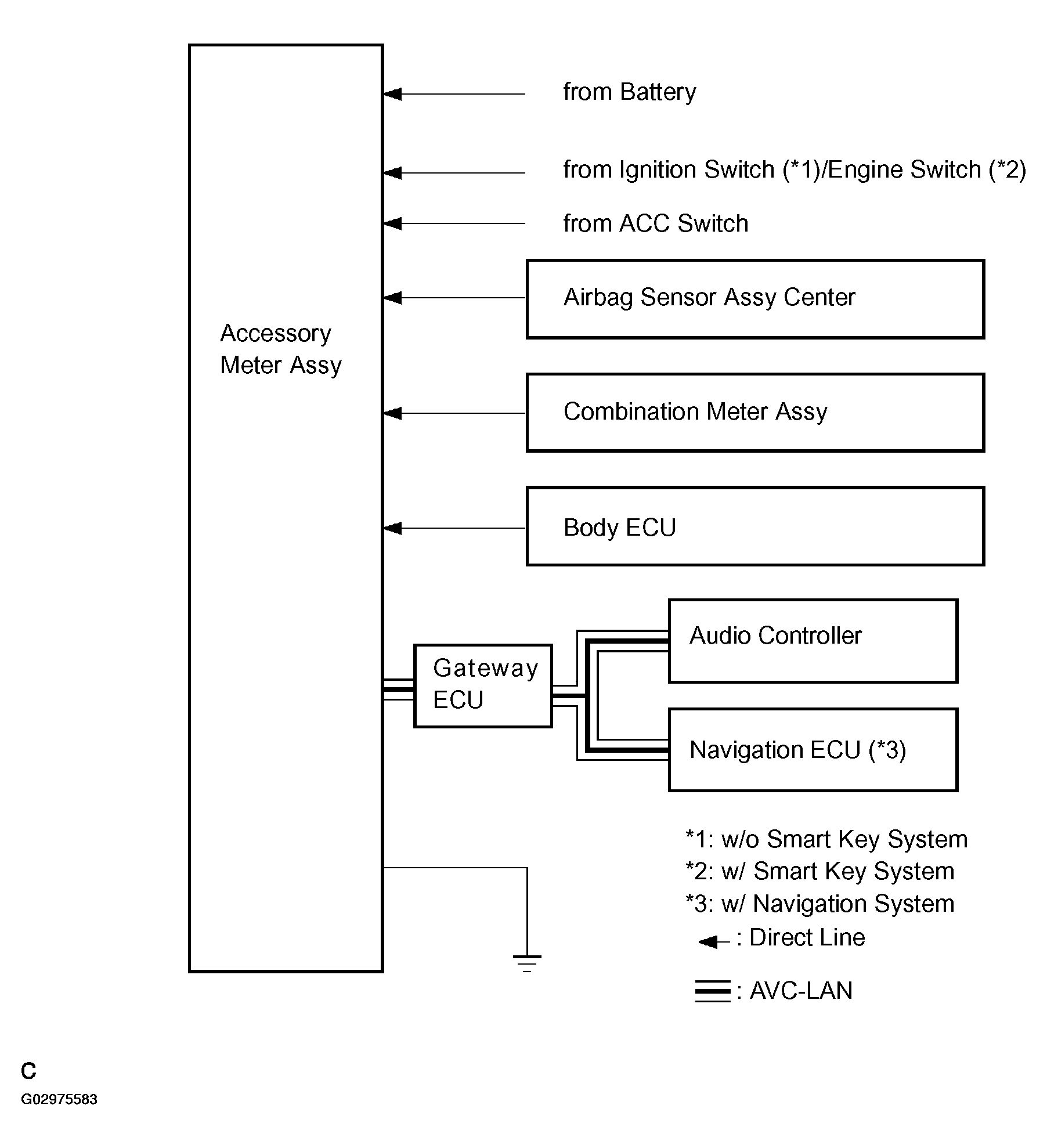

Fig 7: Accessory Meter Assy Circuit Diagram

GATEWAY:

COMMUNICATION SIGNAL

Sender	Receiver	Communication Signal	Communication Line
Gateway ECU	Each ECU	bull Multiplex communication signal	AVC-LAN

HINT:

AVC-LAN signals are transmitted to or received from the combination meter assy through the gateway ECU.

AVC-LAN:

COMMUNICATION SIGNAL

Sender	Receiver	Communication Signal	Communication Line
Navigation ECU (SP*3)	Accessory Meter Assy	bull GPS signal	AVC-LAN-BEAN
Audio Controller	Accessory Meter Assy	bull Audio display signal	AVC-LAN-BEAN

Direct Line

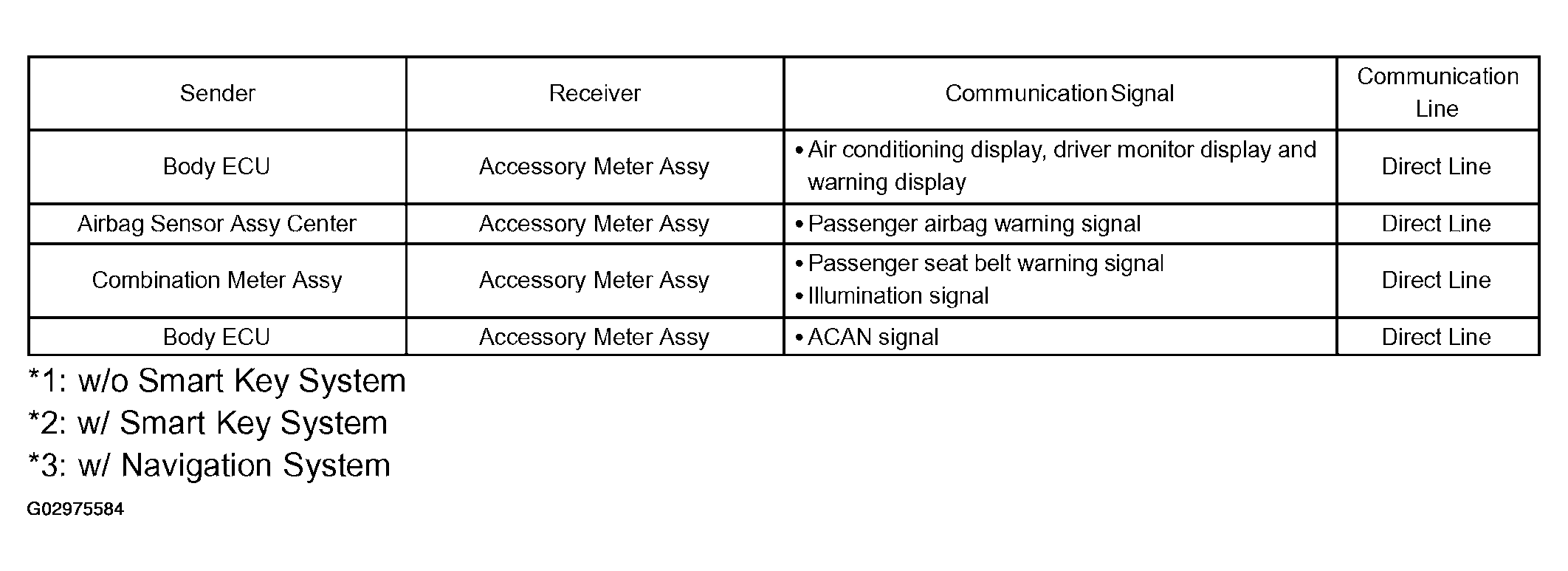

Fig 8: Can Signals & AVC-LAN Signals Description Table - Direct Line
