Emission Control System: Location

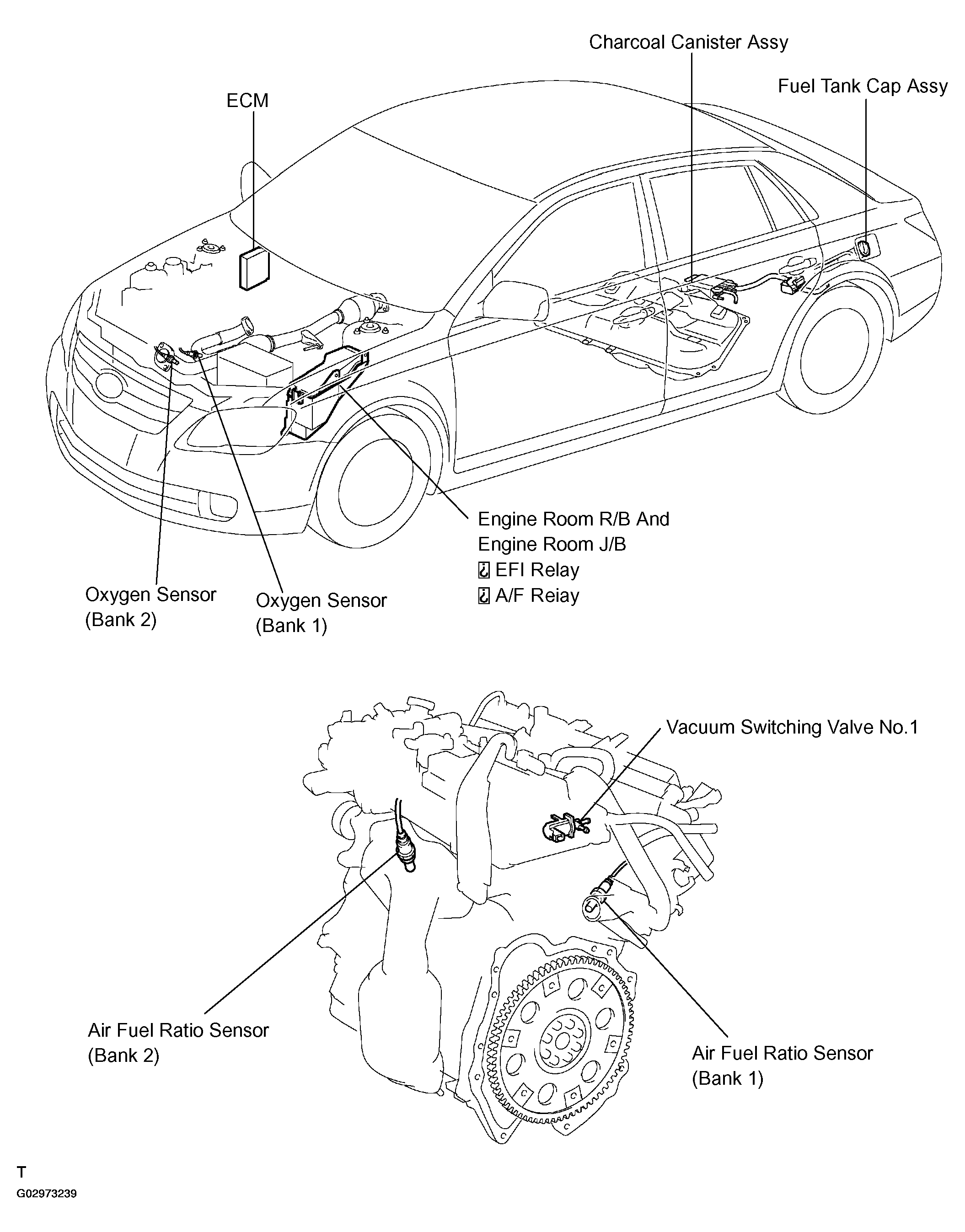

Fig 1: Locating Emission Control System (2GR-FE) Components

G02973239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
