On-Vehicle Inspection

1. Warm up the engine, stop it and wait 5 minutes. The oil level should be between the dipstick's low level mark and full level mark.

   If low, check for leakage and add oil up to the full level mark.

   NOTE: Do not fill above the full level mark.

1. Check the oil for deterioration, water contamination, discoloring or thinning.

   If the quality is visibly poor, replace the oil.

   Oil grade:

   API grade SL, Energy-Conserving or ILSAC, multi-grade engine oil is recommended. SAE 5W-30 is the best choice for good fuel economy and good starting in cold weather.

   If SAE 5W-30 in not available, SAE 10W-30 may be used.

   However, it should be replaced with SAE 5W-30 at the next oil change.

   Fig 1: Identifying Engine Oil Viscosity

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the oil pressure switch connector.
2. Using a 24 mm deep socket wrench, remove the oil pressure switch.

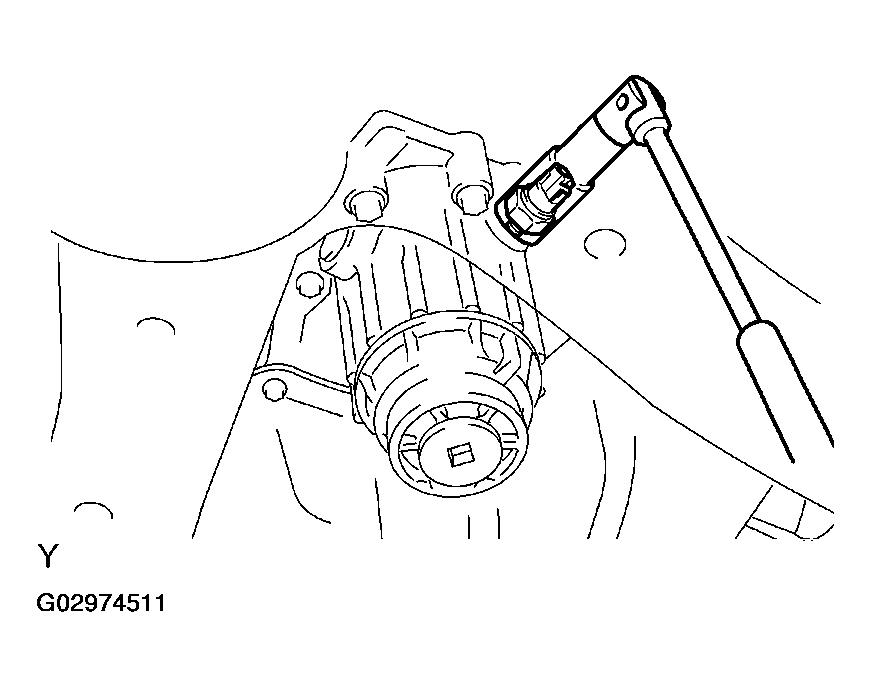

   Fig 2: Removing Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil pressure gauge with adapter.

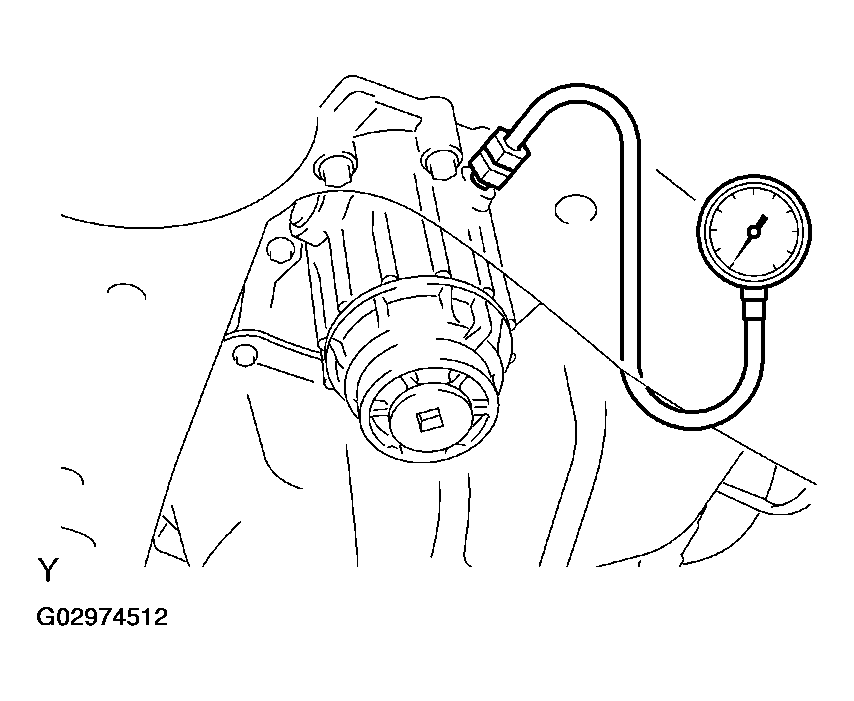

   Fig 3: Installing Oil Pressure Gauge With Adapter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the oil pressure is not as specified, check the oil pump (see page).

1. Remove the oil pressure gauge.
2. Apply adhesive to 2 or 3 threads of the oil pressure switch.

   Adhesive:

   Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

   Fig 4: Applying Adhesive To 2 Or 3 Threads Of Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a 24 mm deep socket wrench, install the oil pressure switch.

   Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)

   NOTE: Do not start the engine within 1 hour after installation.
4. Connect the oil pressure switch connector.
   Fig 5: Installing Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
