Cranking Holding Function Circuit: Wiring Diagram

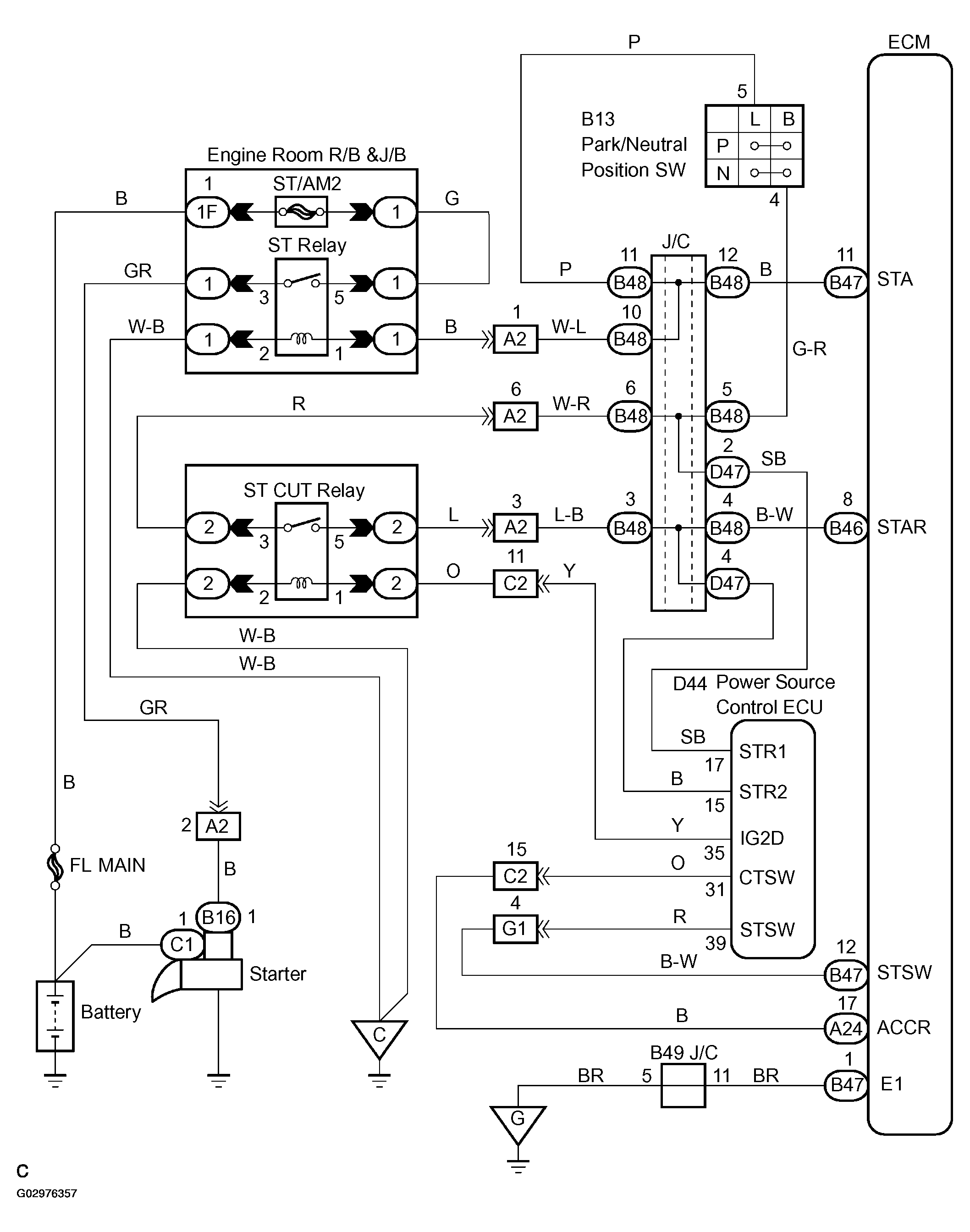

Fig 1: Identifying Cranking Holding Wiring Diagram
G02976357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
