Engine Control System (SFI): Location

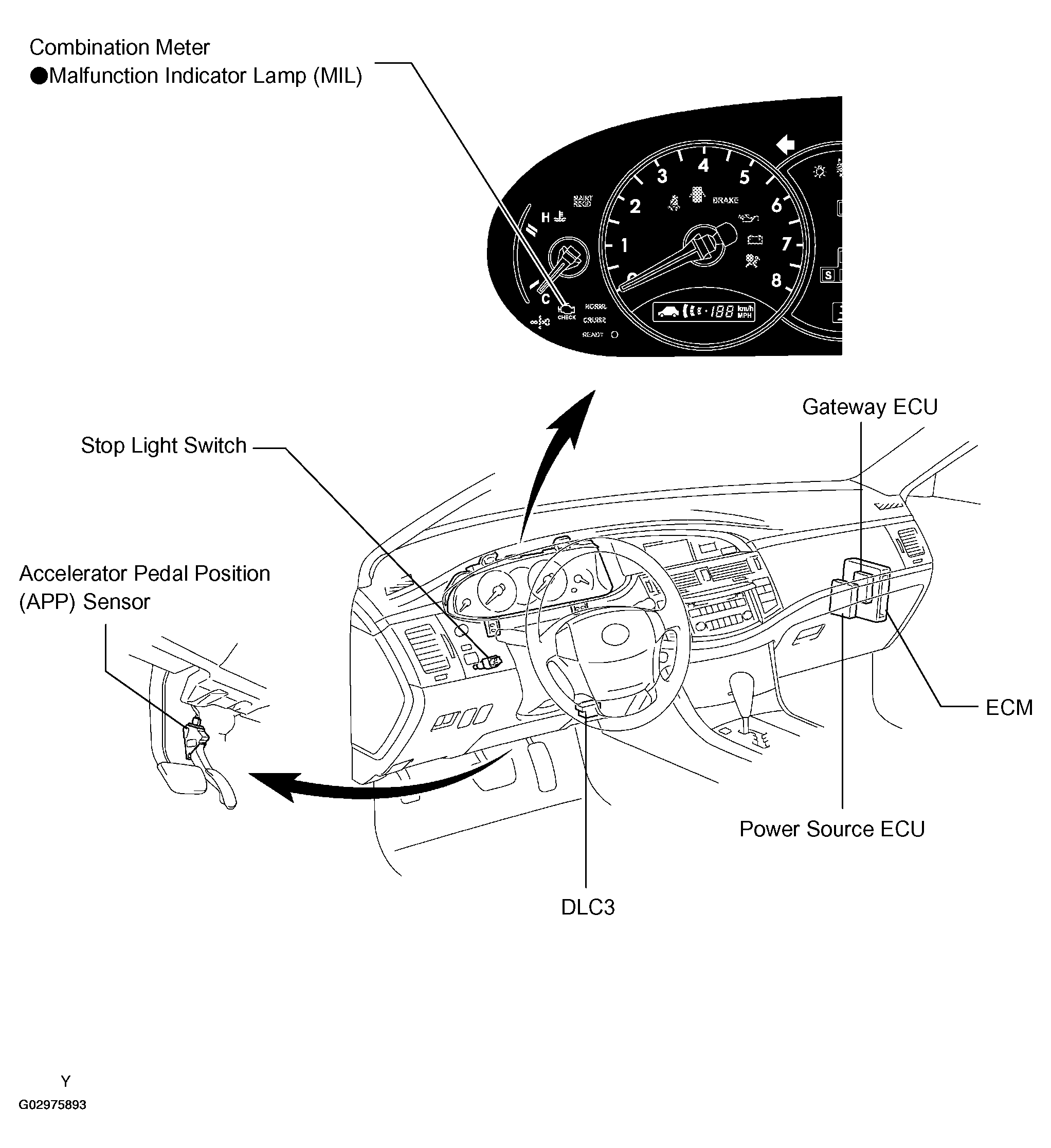

Fig 1: Identifying SFI System Component Locations (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

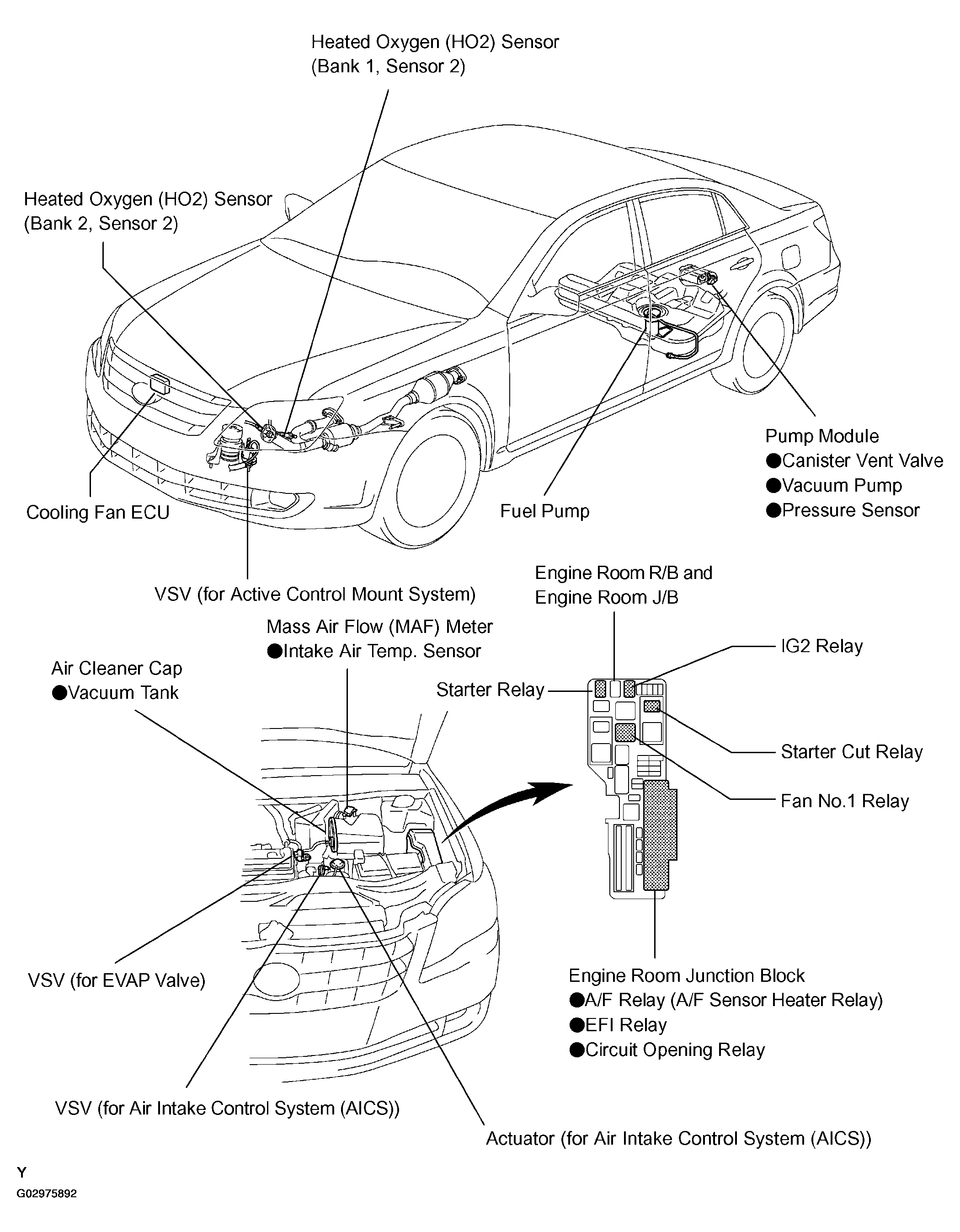

Fig 2: Identifying SFI System Component Locations (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

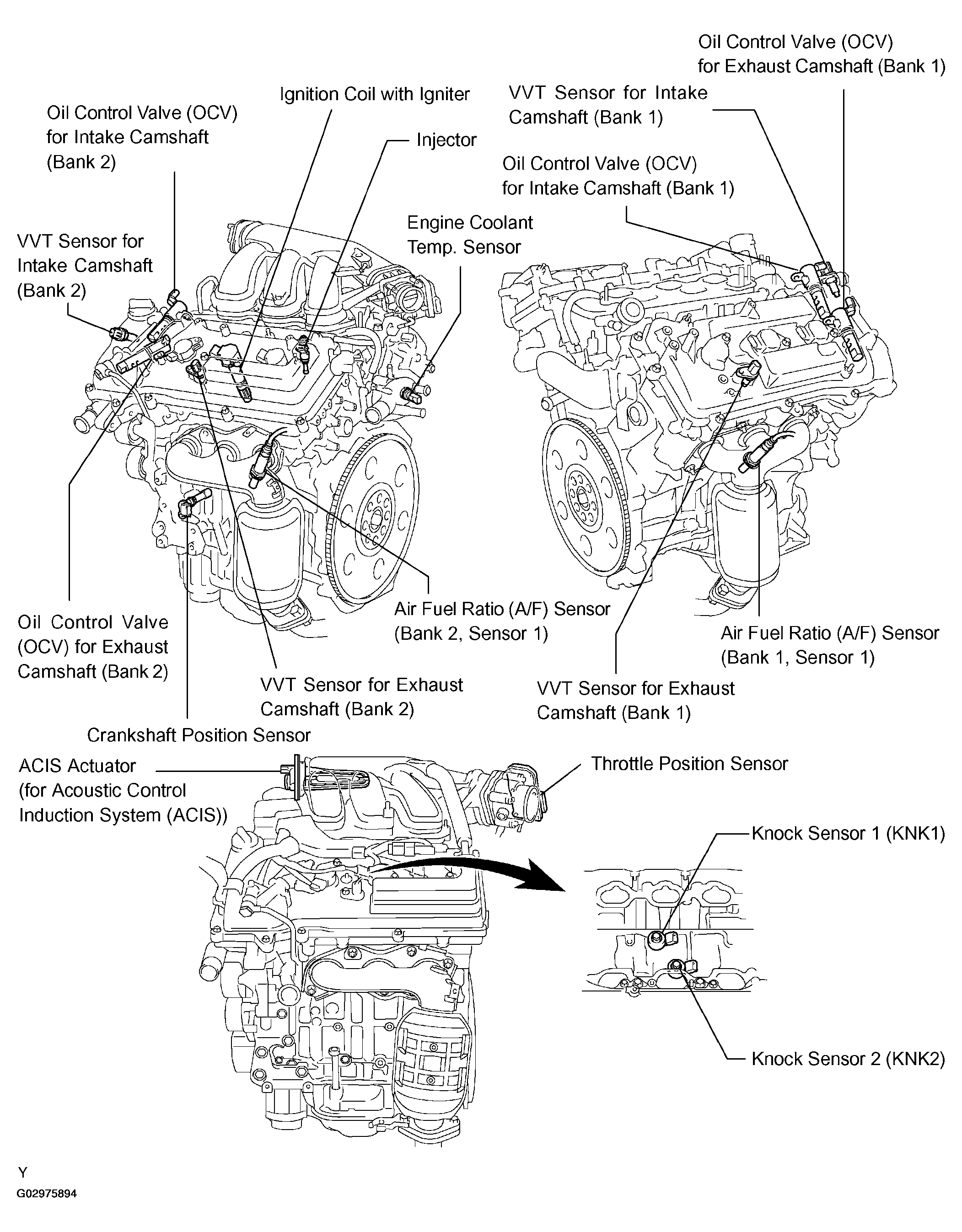

Fig 3: Identifying SFI System Component Locations (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
