Without Smart Key System:

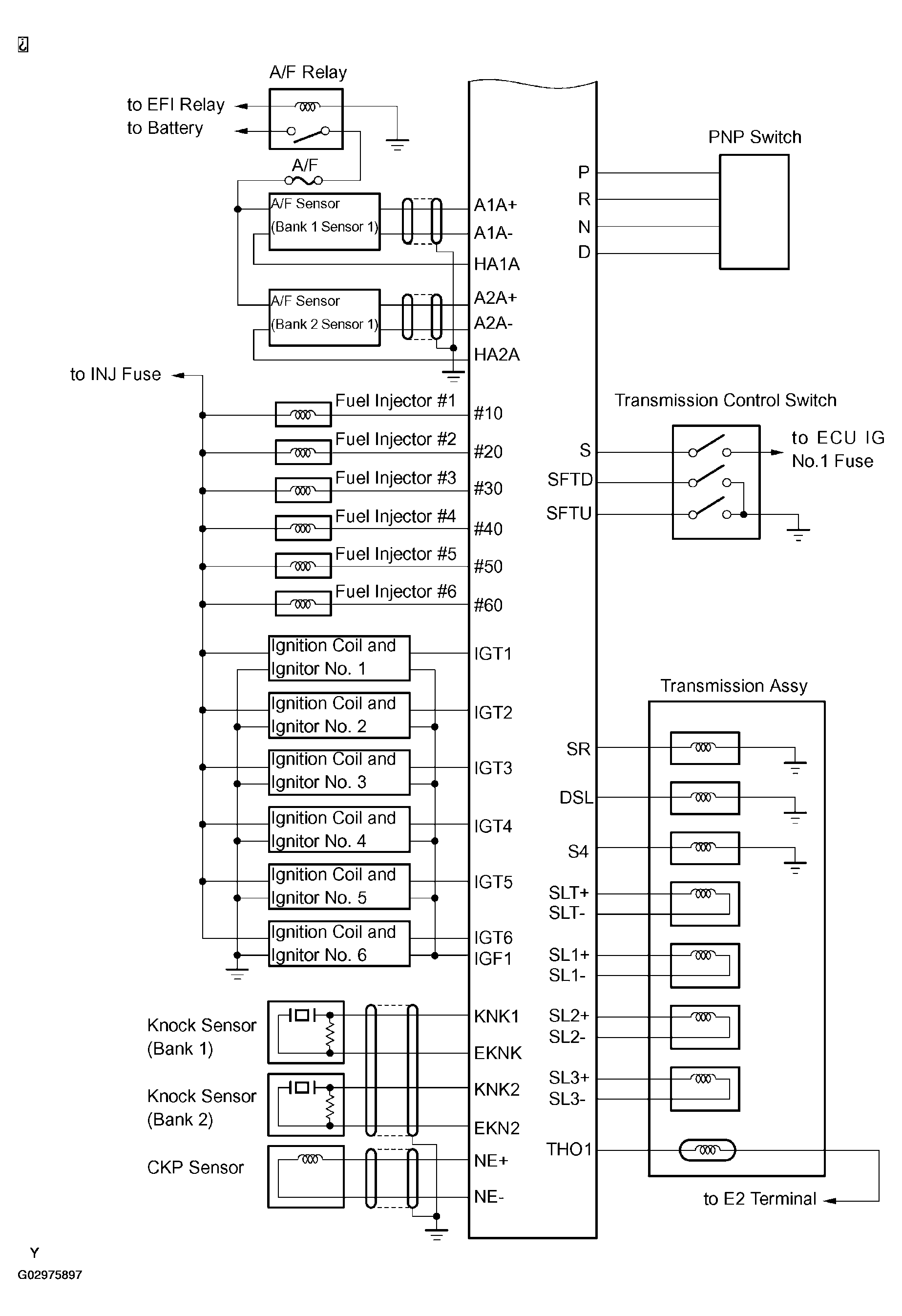

Fig 1: Without Smart Key System - System Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

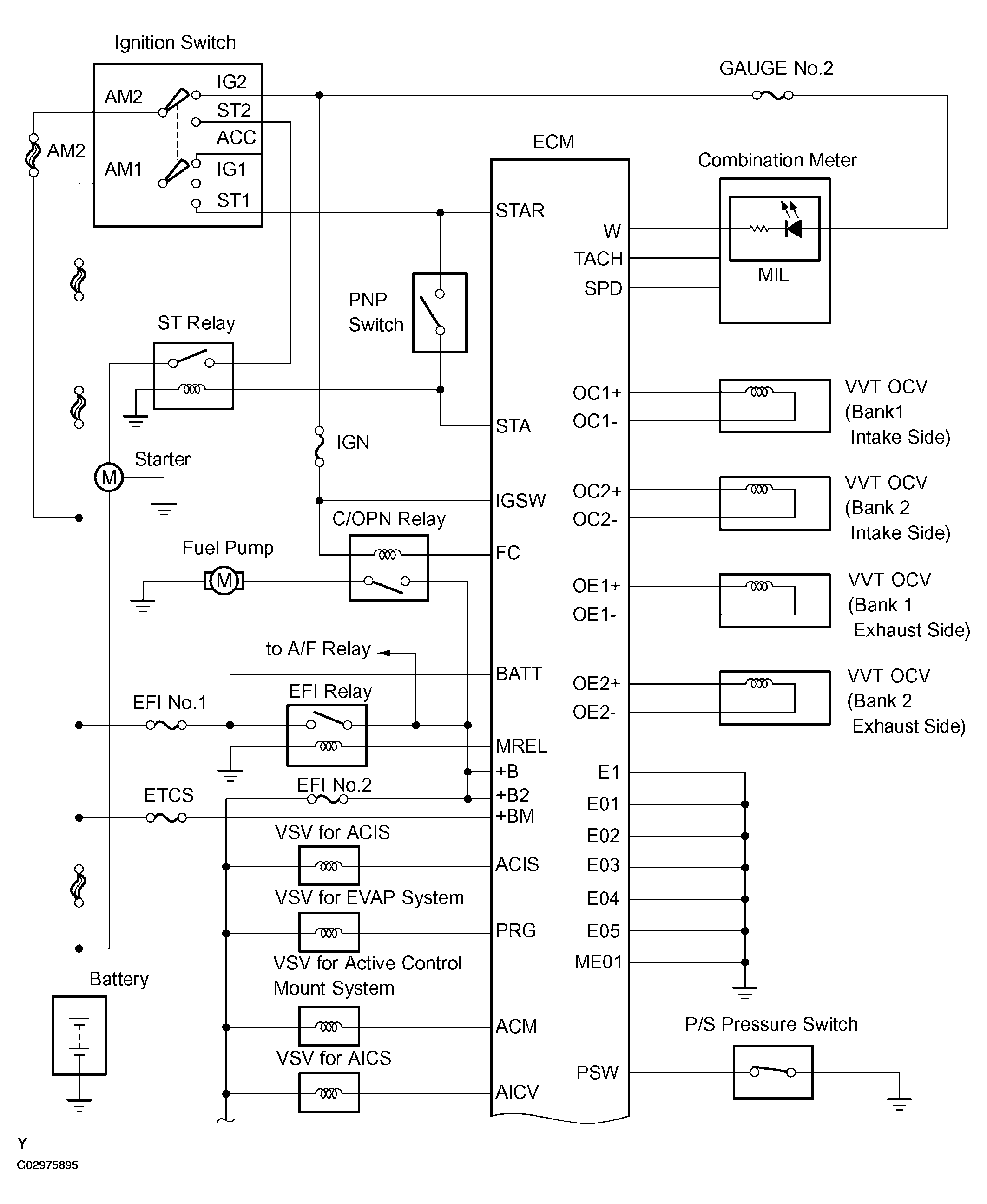

Fig 2: Without Smart Key System - System Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

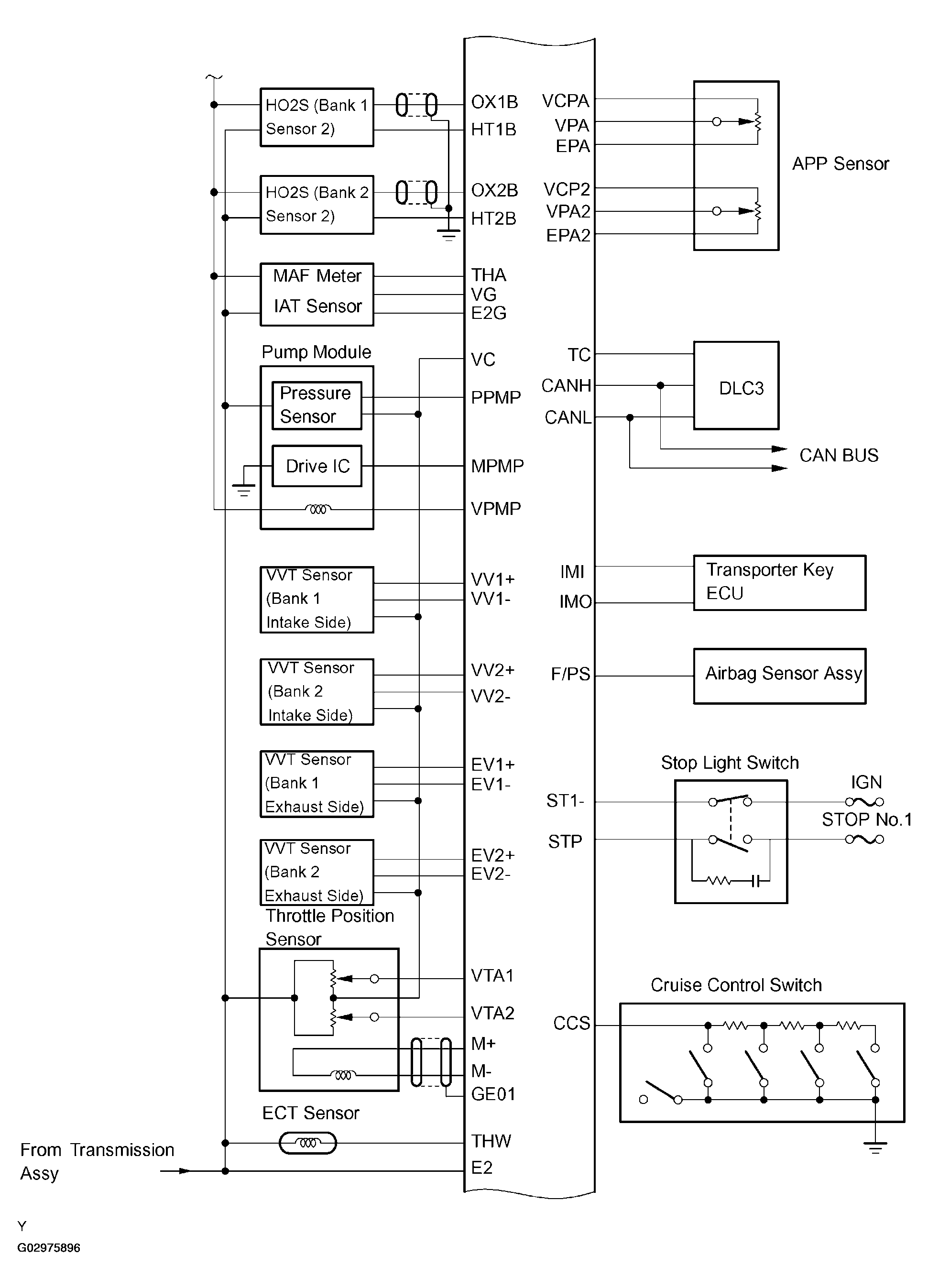

Fig 3: Without Smart Key System - System Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
