Engine Control System: Location

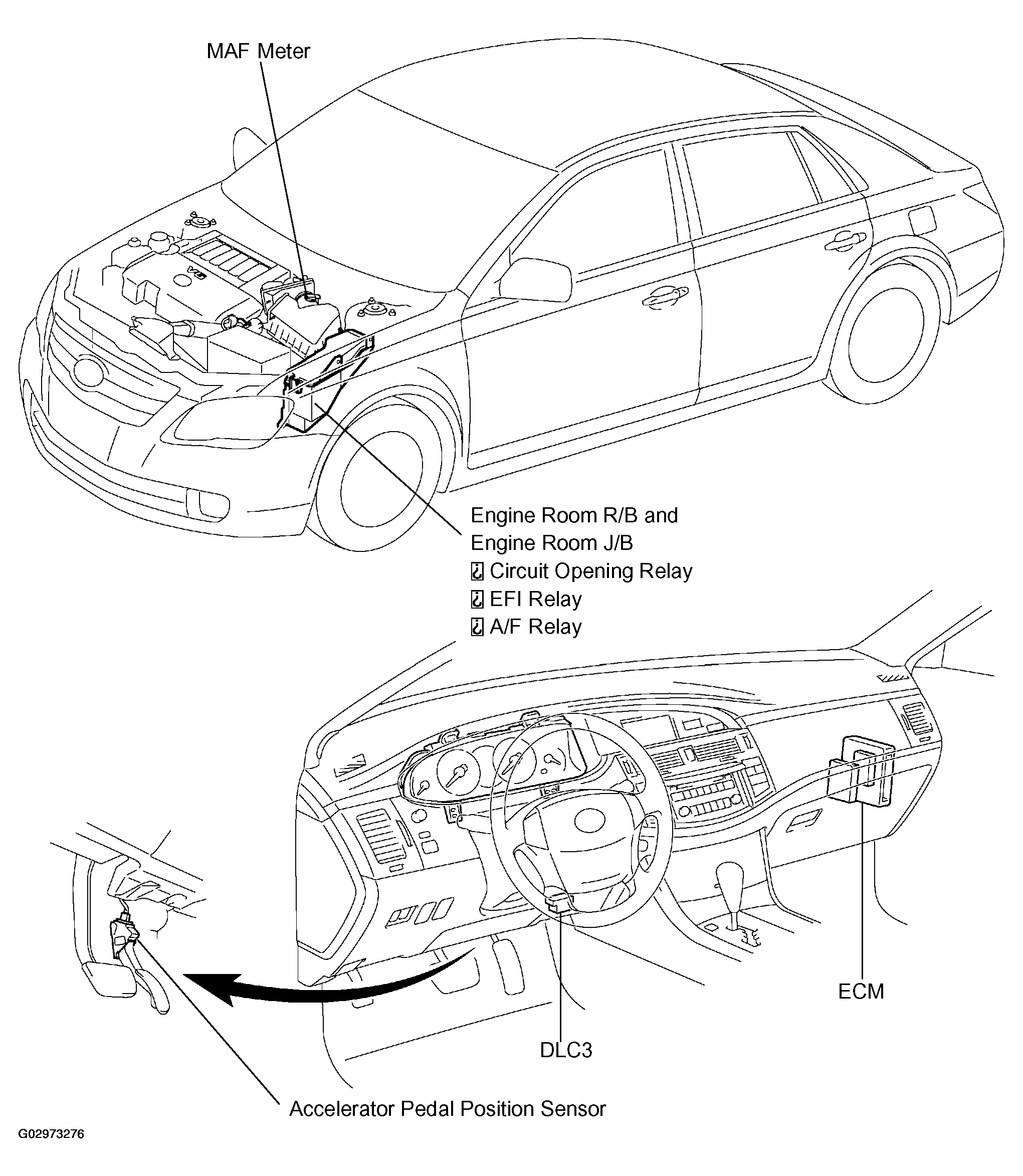

Fig 1: Identifying SFI System Components Location (2GR-FE - 1 Of 2)
G02973276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

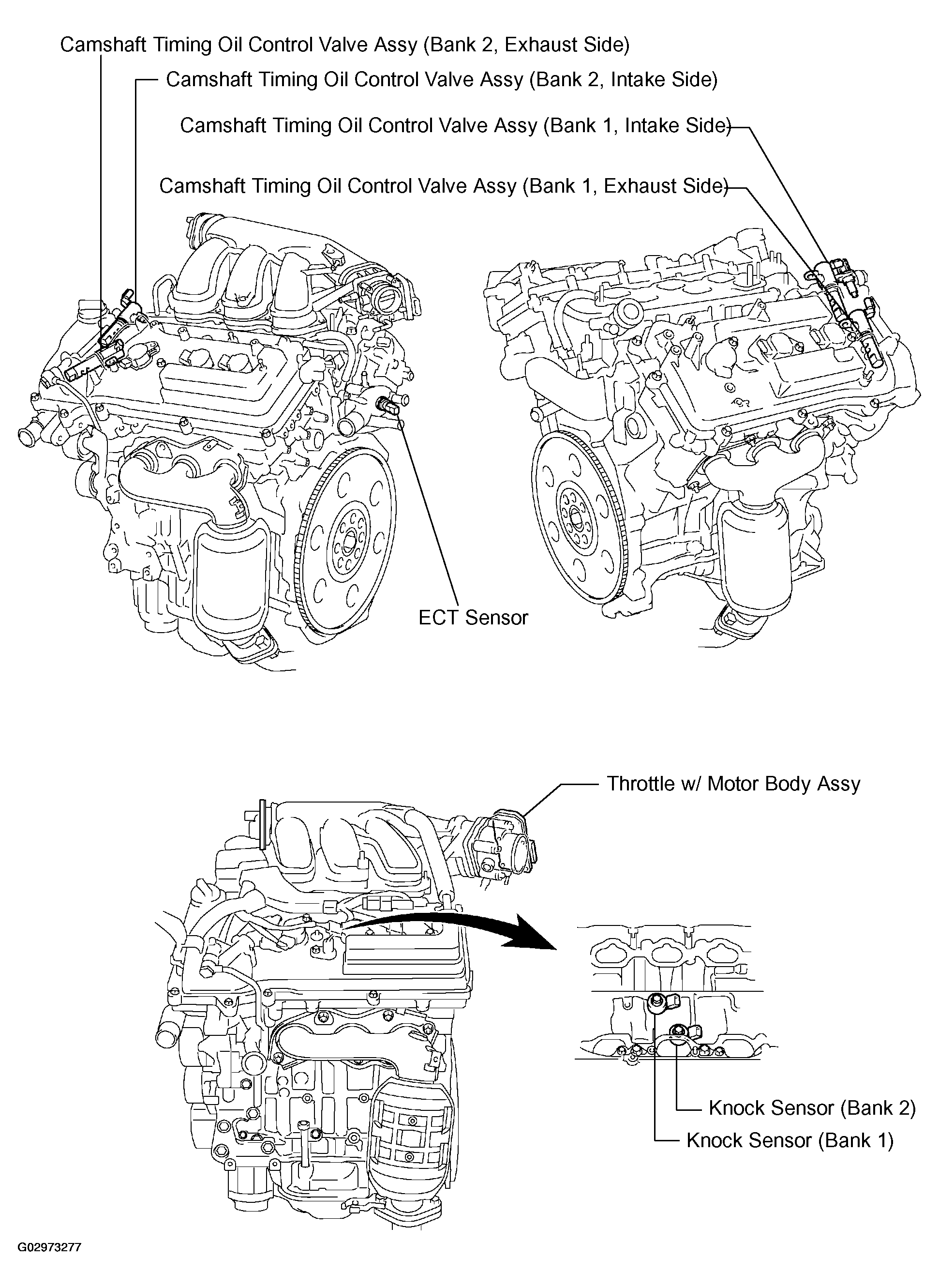

Fig 2: Identifying SFI System Components Location (2GR-FE - 2 Of 2)
G02973277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
