Throttle W/Motor Body ASSY (2GR-FE): Components

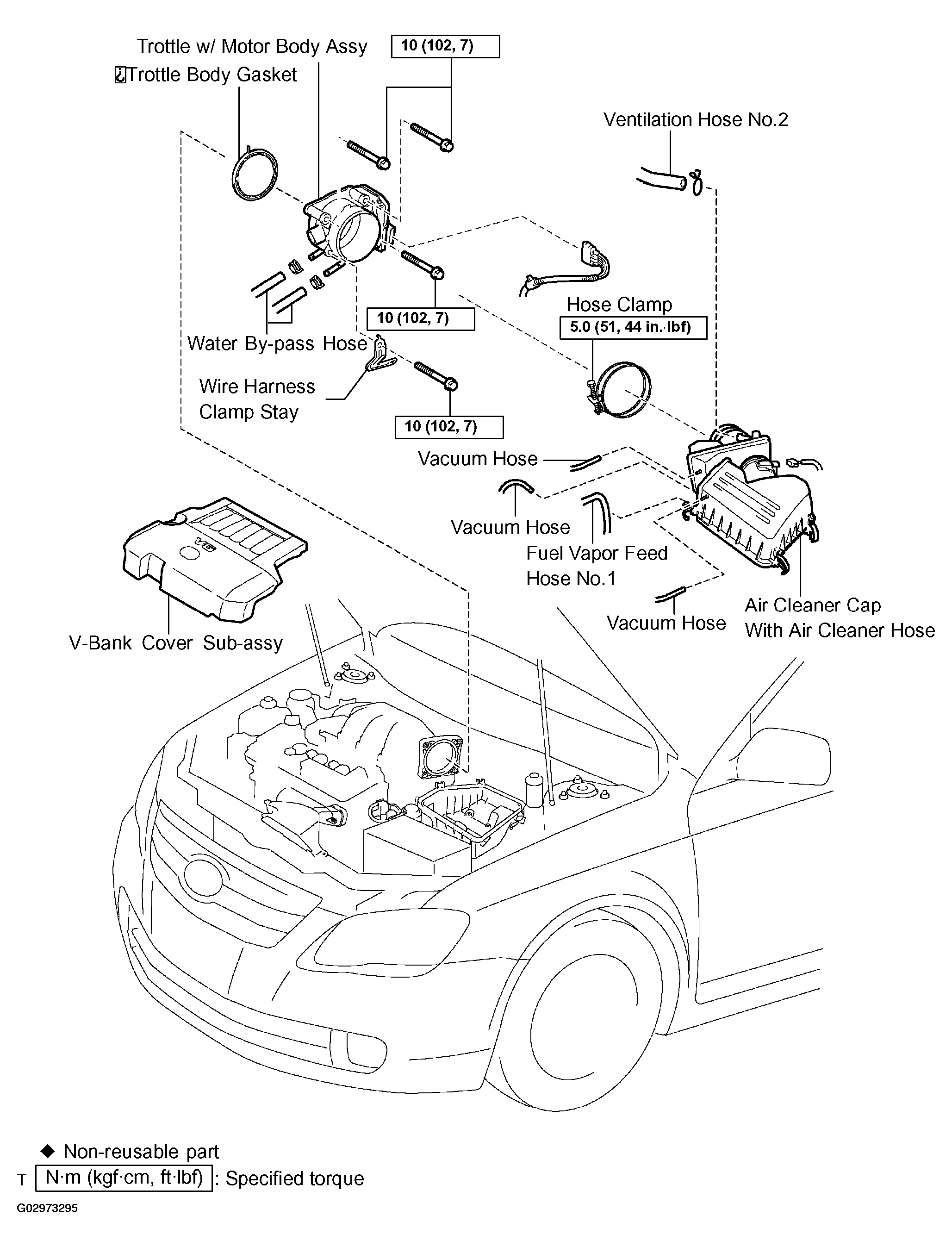

Fig 1: Identifying Throttle W/Motor Body Assy Components (2GR-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
