Engine Fuel System: Location

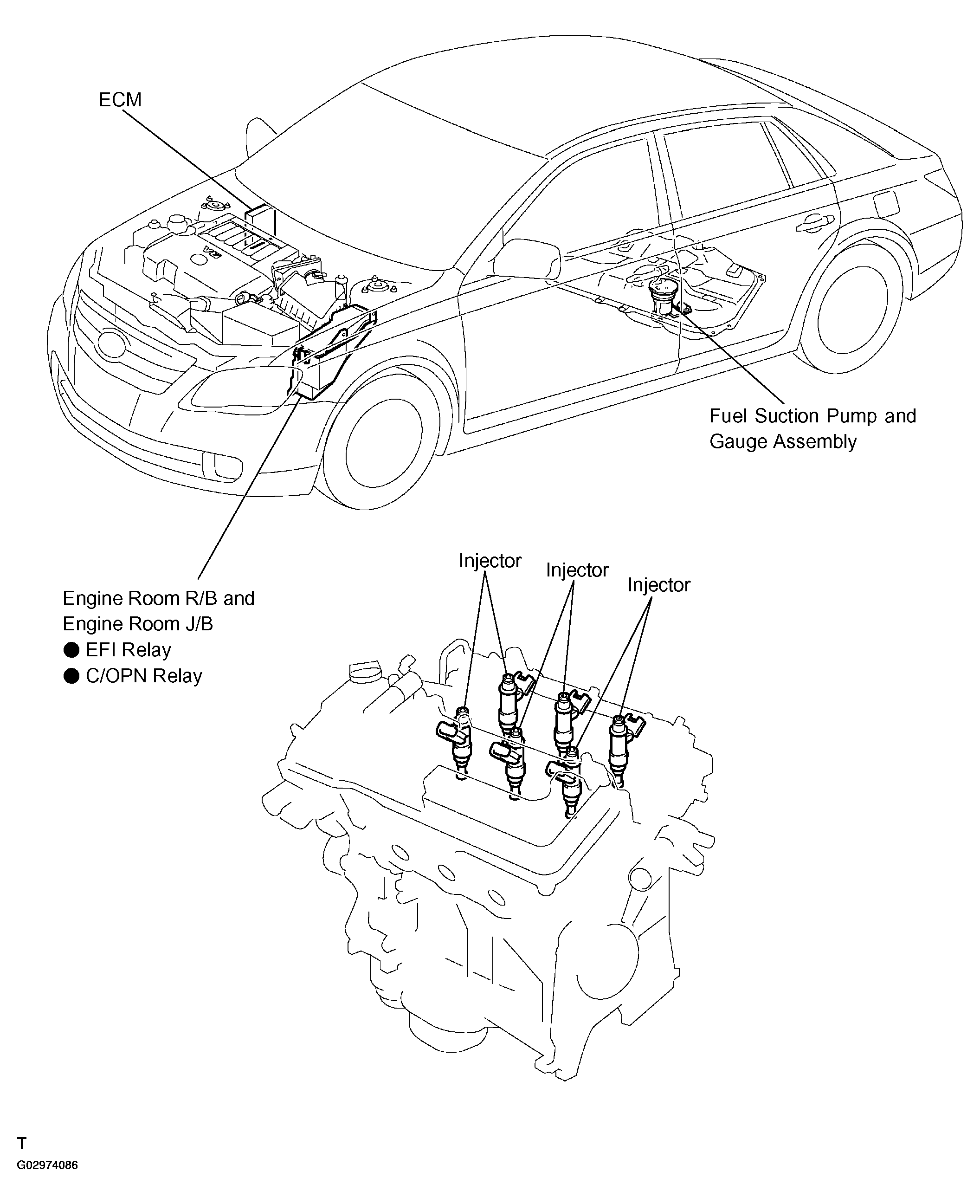

Fig 1: Identifying Fuel System (2GR-FE) Components Location
G02974086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
