Engine Ignition System: Location

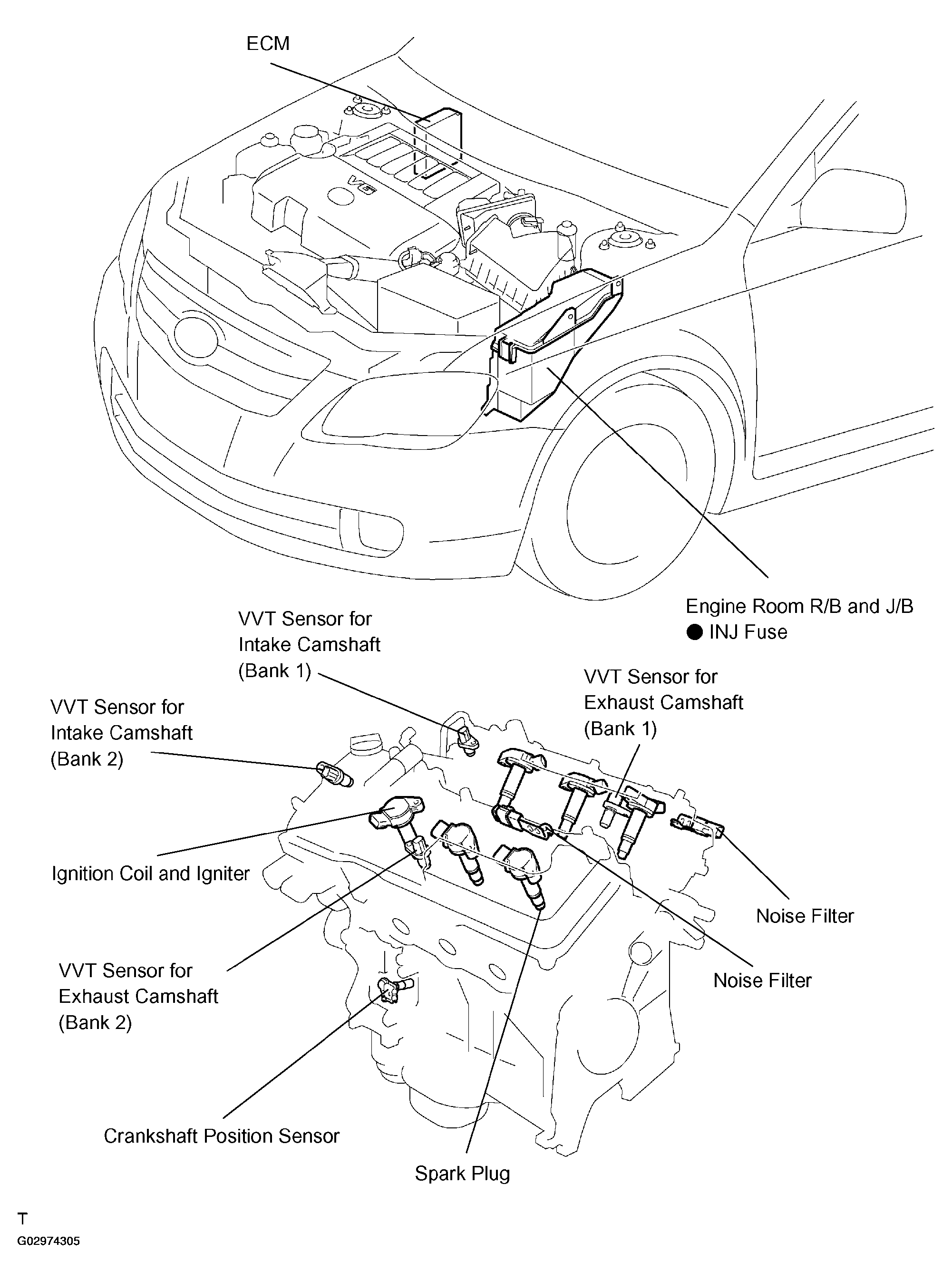

Fig 1: Identifying Ignition System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
