Vehicle Lift And Support Locations

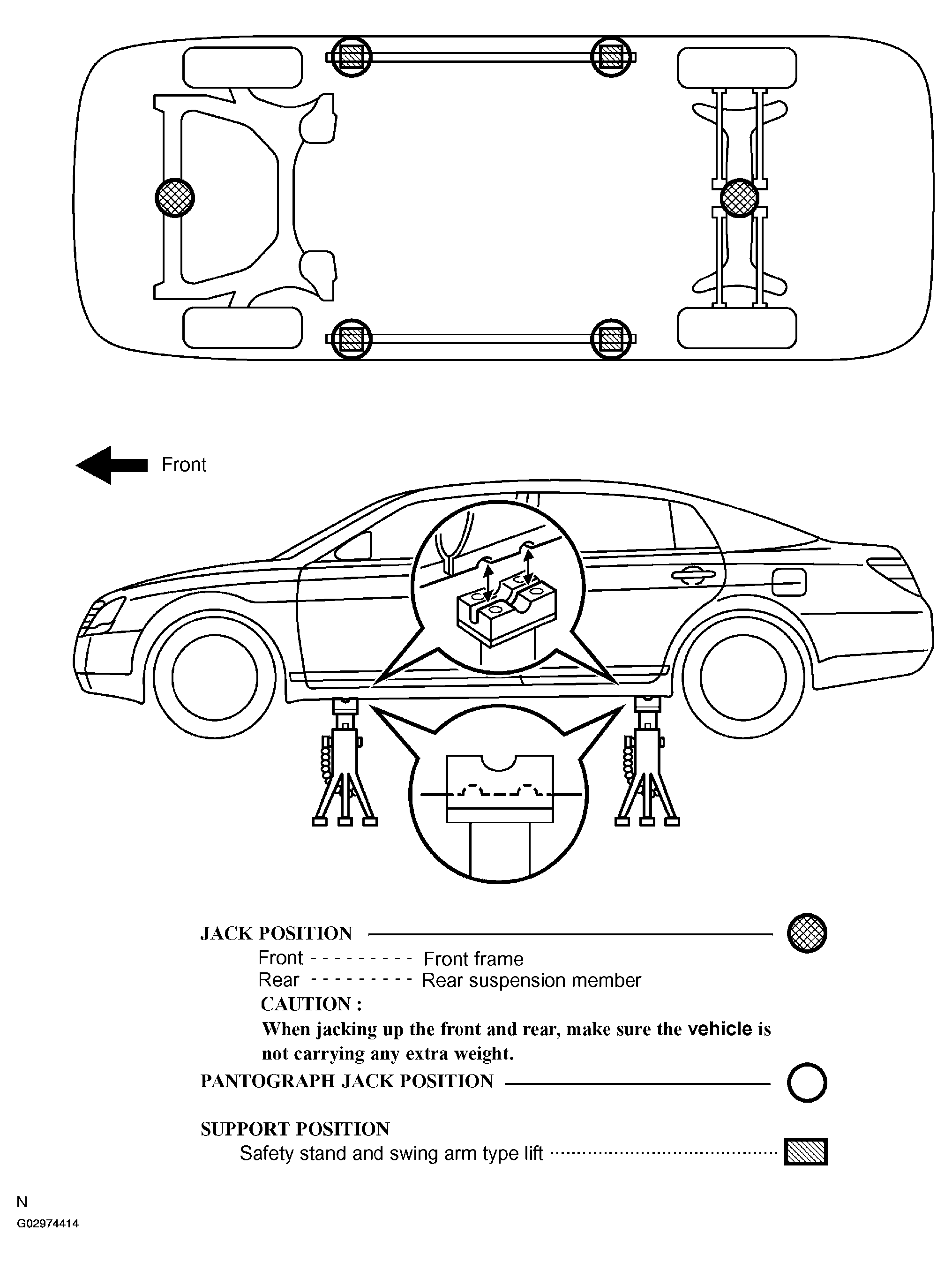

Fig 1: Identifying Vehicle Lift And Support Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

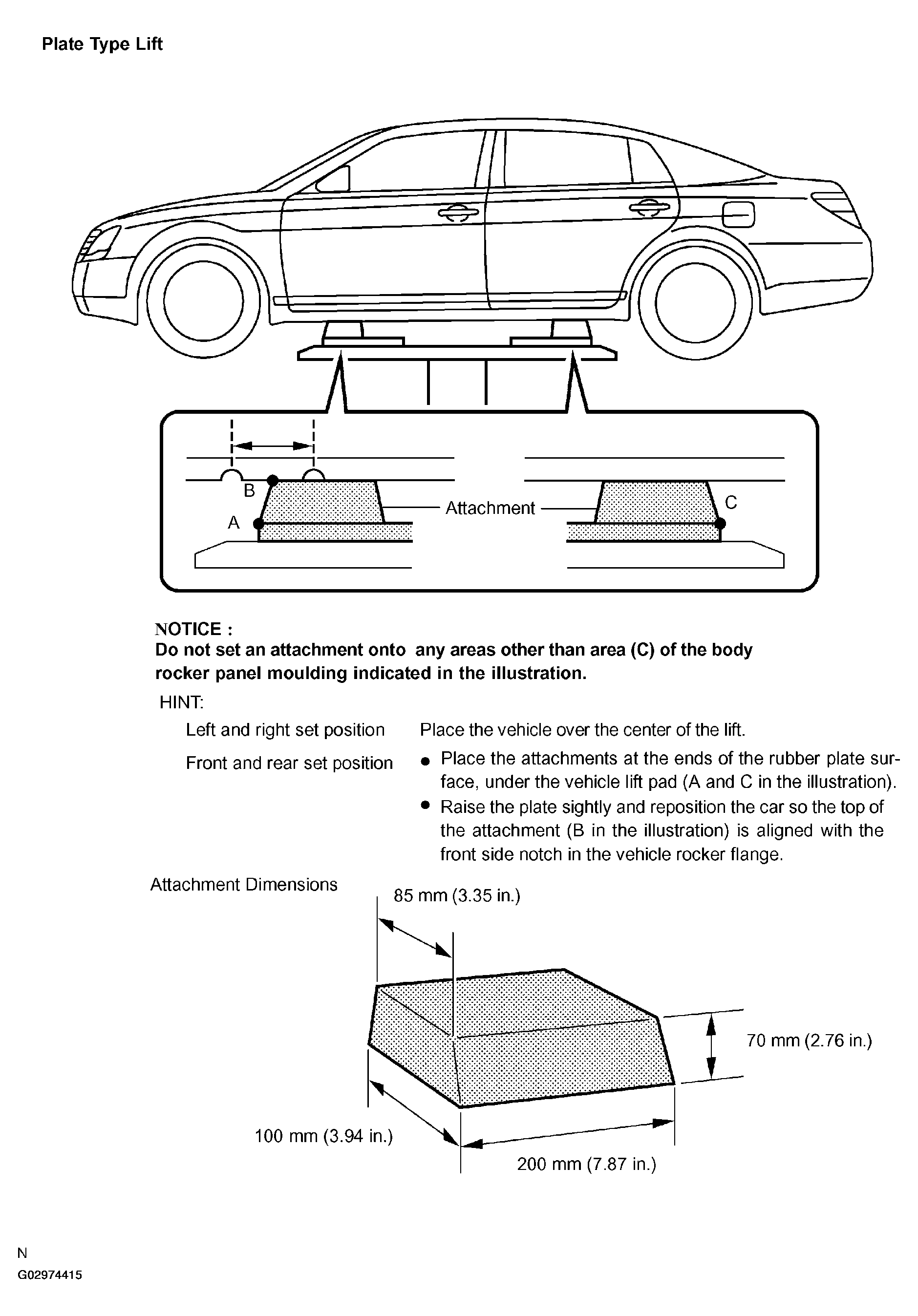

Fig 2: Identifying Plate Type Lift Spacers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
