Symptoms Table

Use the table below, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps on the following pages.

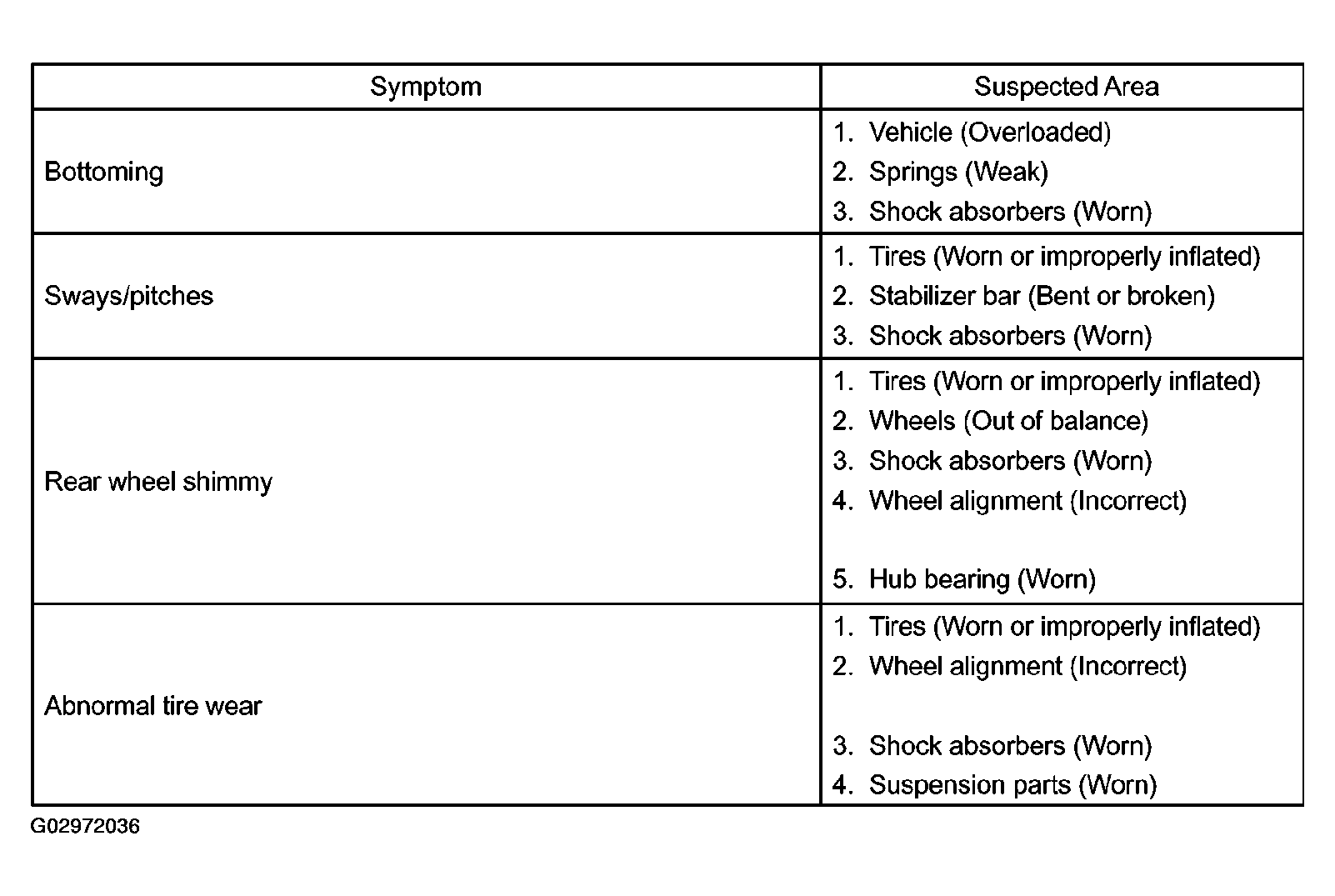

Fig 1: Rear Suspension System Problem Symptom Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
