Terminals Of ECM: ECM

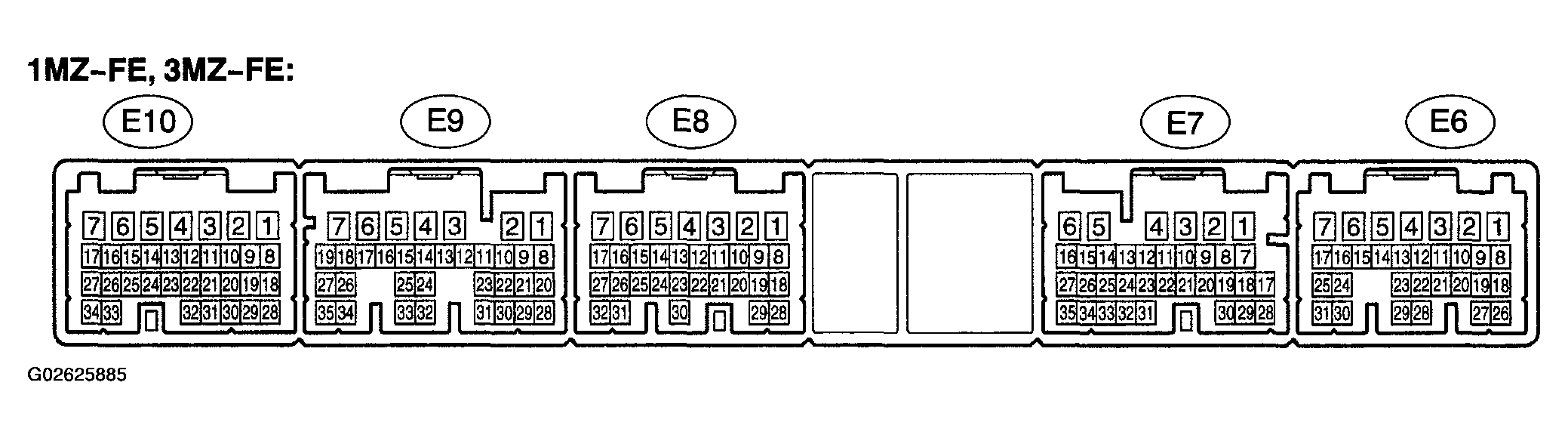

Fig 1: Identifying Terminals Of ECM - 1MZ-FE-FE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

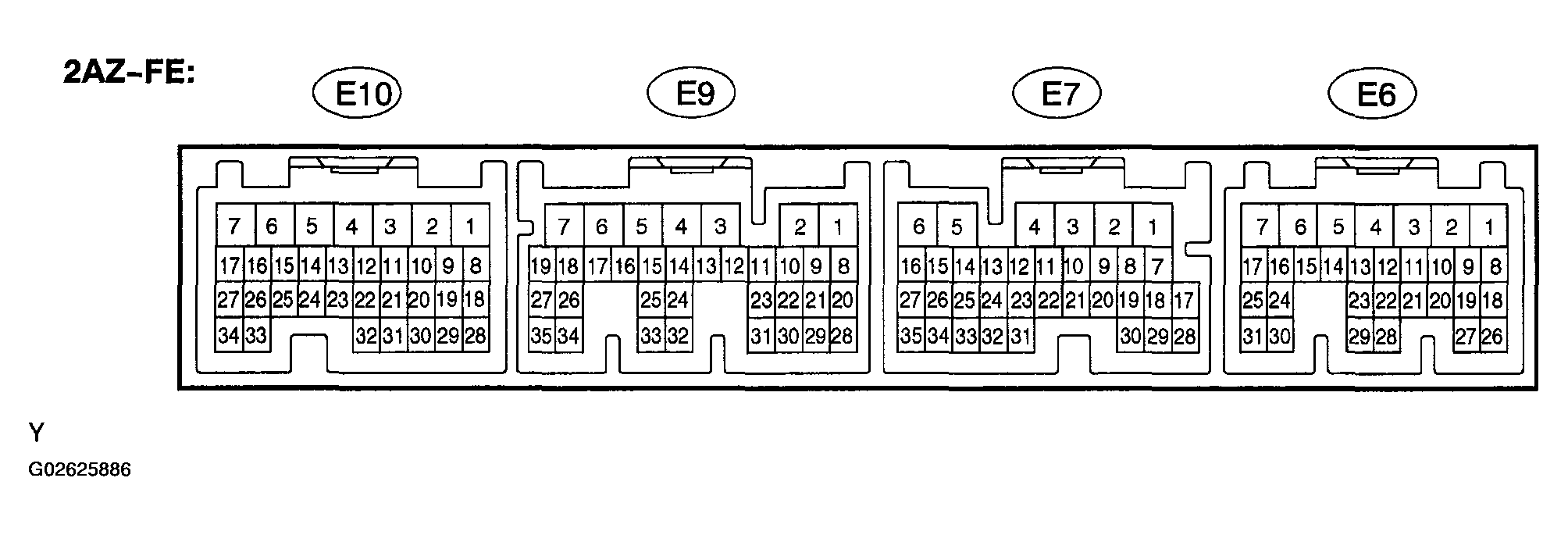

Fig 2: Identifying Terminals Of ECM - 2AZ-FE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

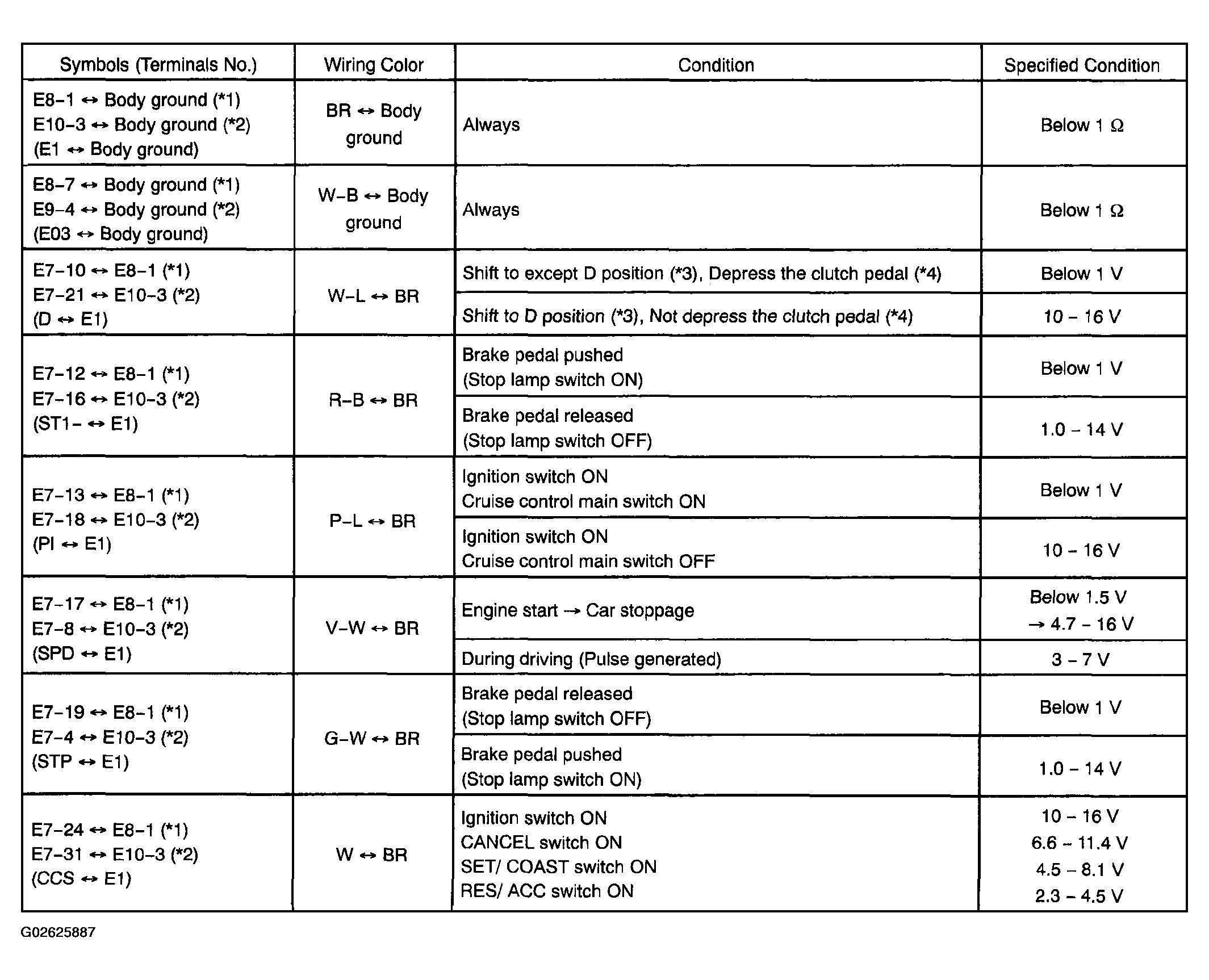

Fig 3: Connector Terminals Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the value is not within the standard range, some defects on the vehicle is suspected.

1. *1: 1 MZ-FE, 3MZ-FE
2. *2: 2AZ-FE
3. *3: A/T
4. *4: M/T
