Power Mirror Control System: Location

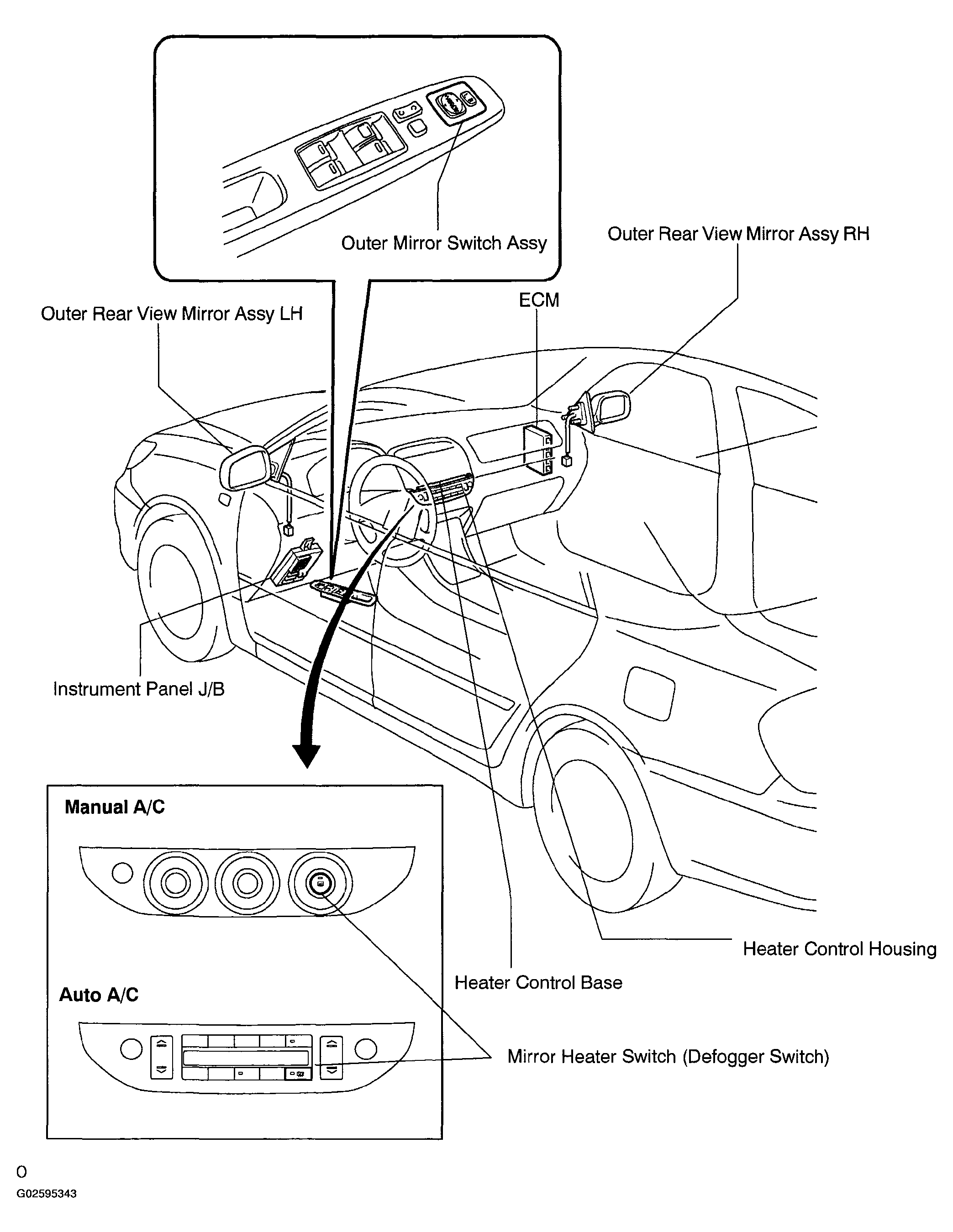

Fig 1: Identifying Power Mirror Control System Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
