FixVault
Home
›
Toyota
›
2005
›
Camry Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Windshield/WINDOWGLASS/Mirror
›
Window Defogger System
›
Location
Window Defogger System: Location

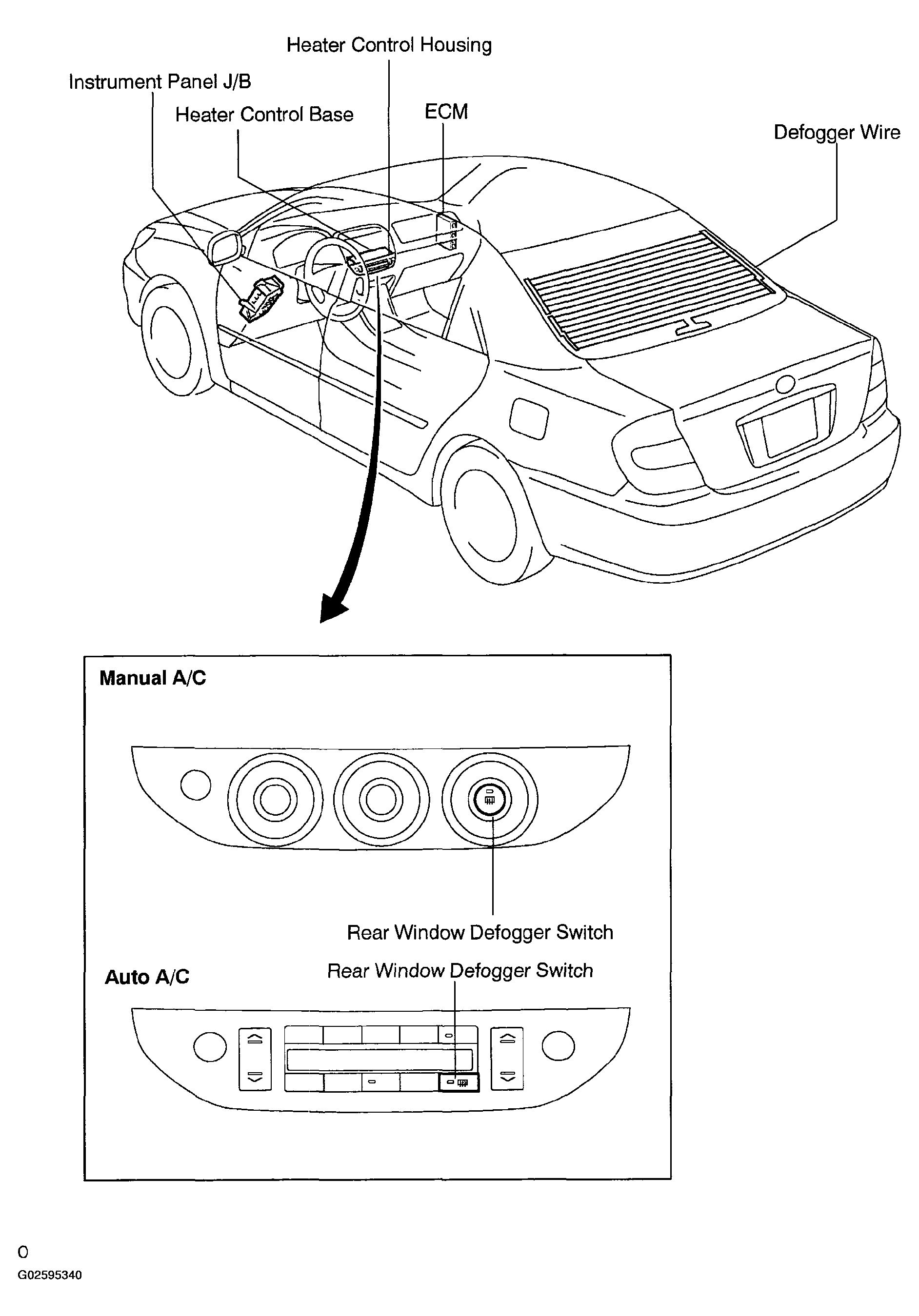

Fig 1: Identifying Defogger Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
