Generator ASSY (1MZ-FE/3MZ-FE): Components

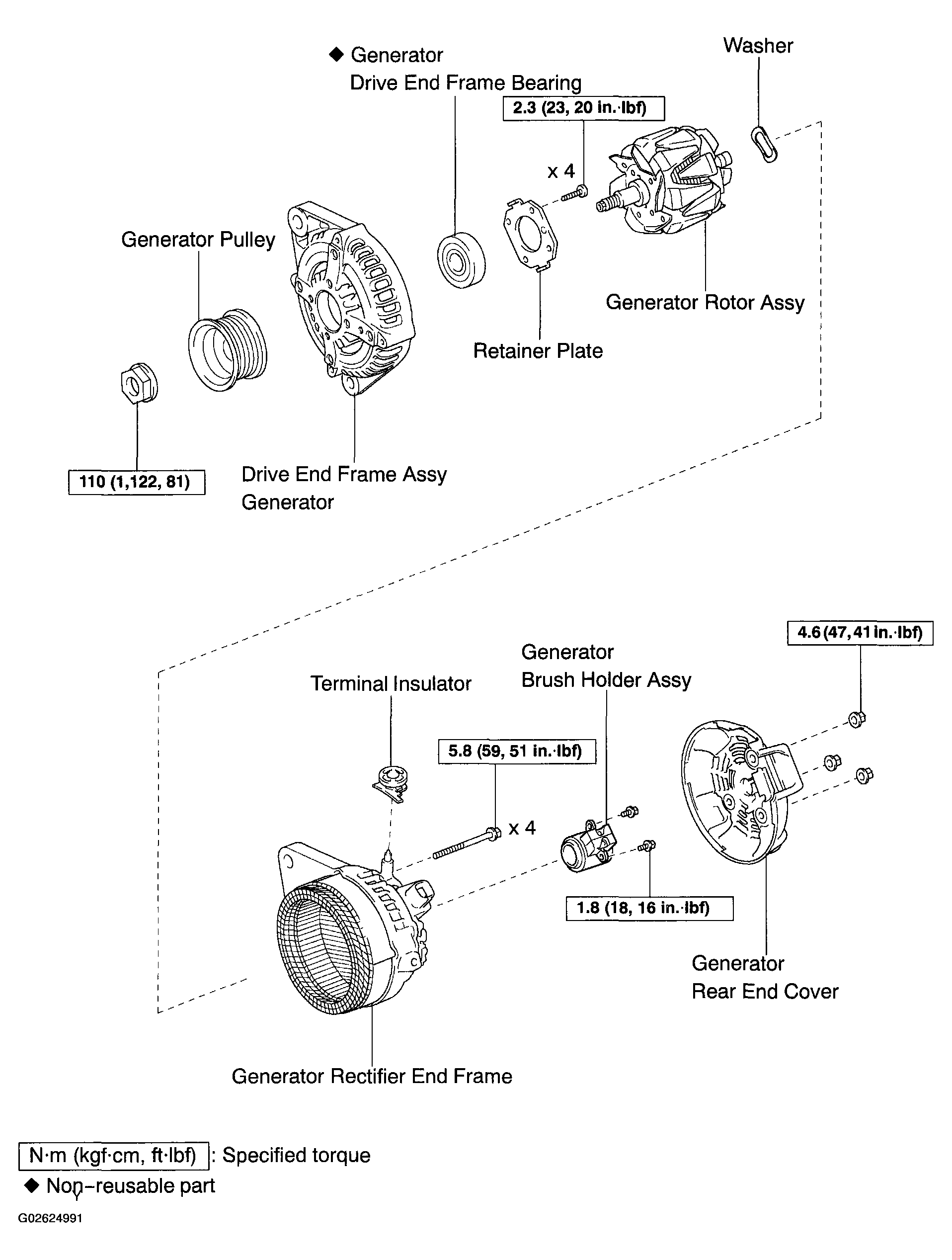

Fig 1: Exploded View Of Generator Assy (1MZ-FE/3MZ-FE) And Its Tightening Torque
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
