Fuel Tank ASSY (1MZ-FE/3MZ-FE): Components

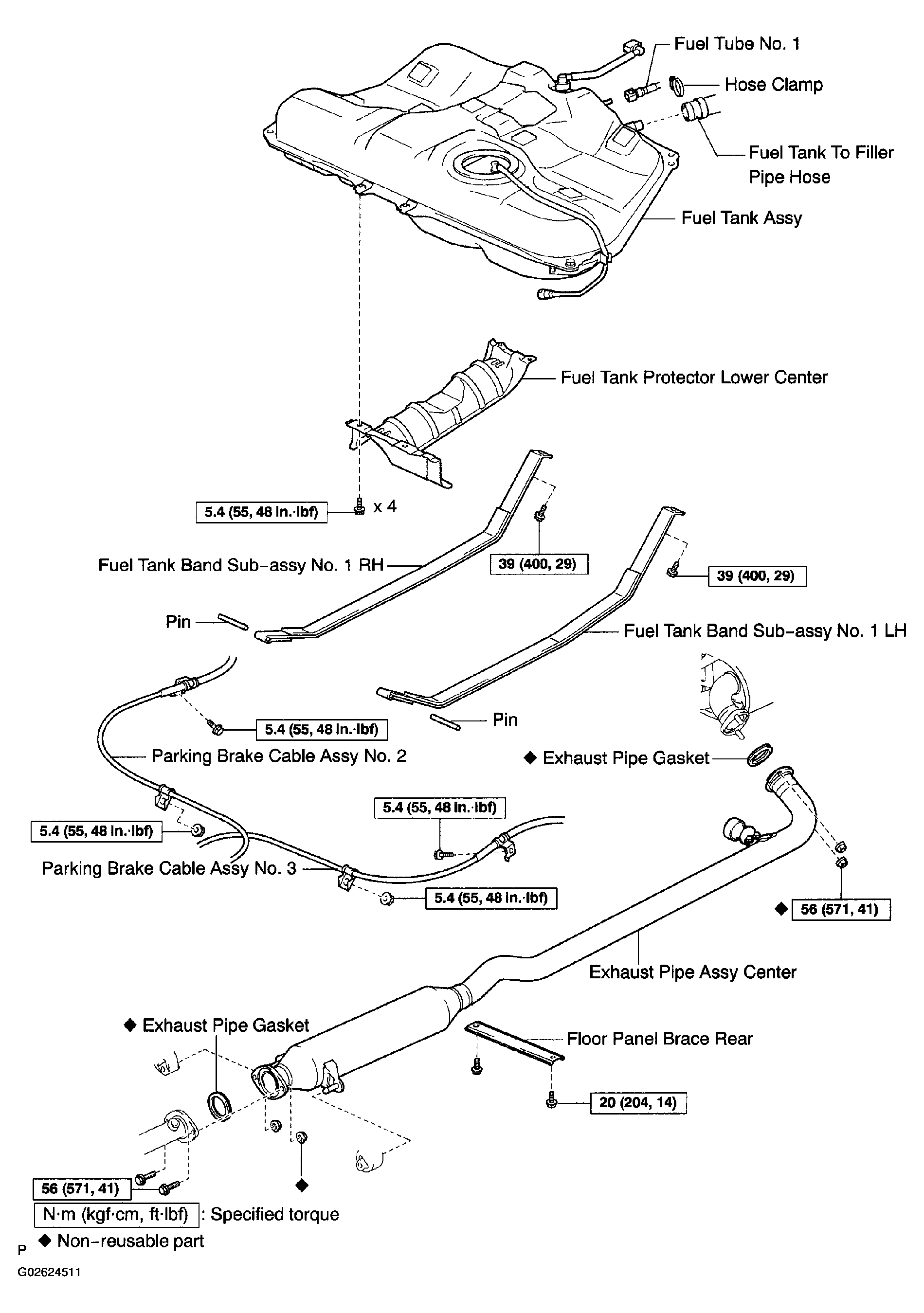

Fig 1: Fuel Tank Assy (1MZ-FE/3MZ-FE) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

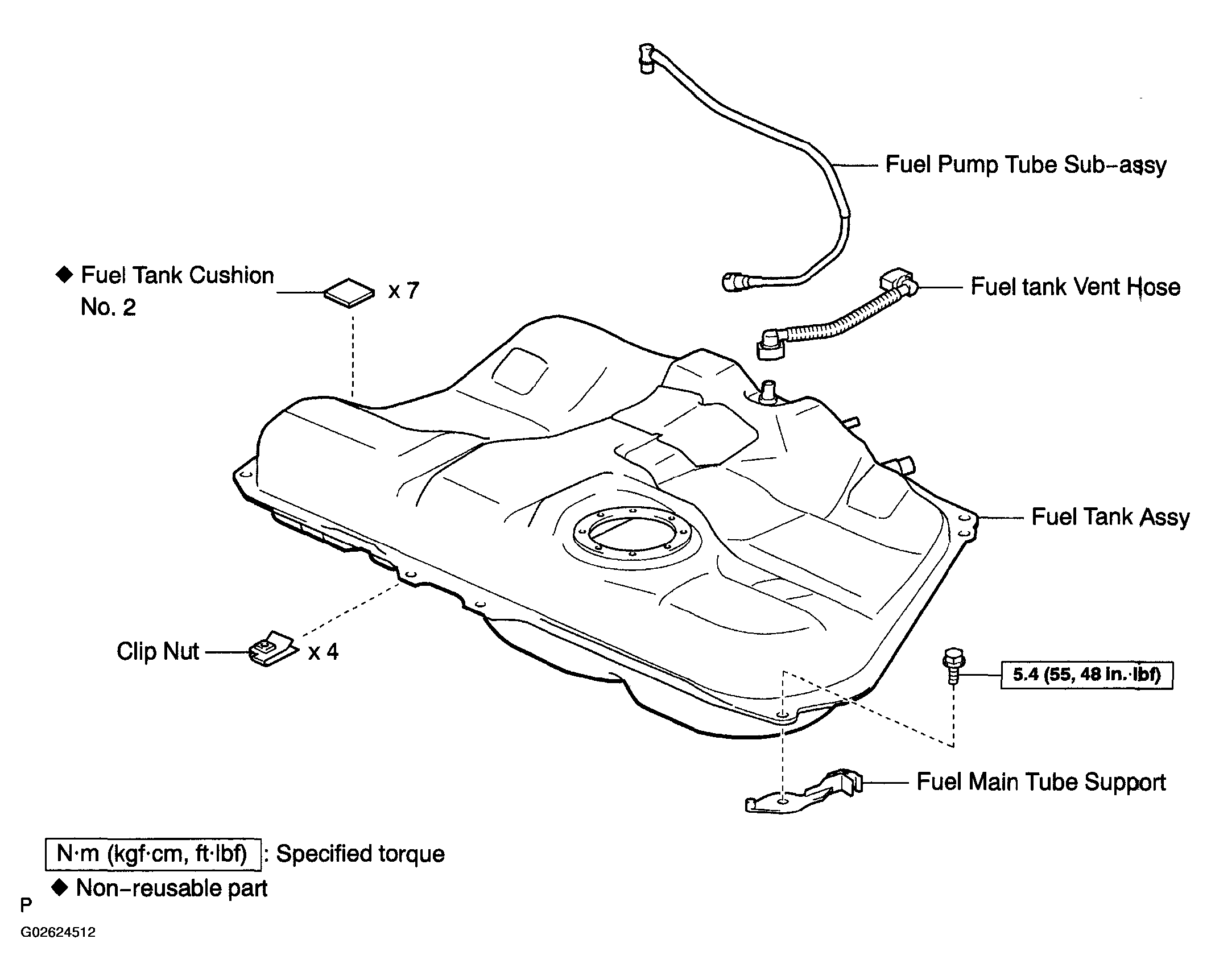

Fig 2: Fuel Tank Assy (1MZ-FE/3MZ-FE) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

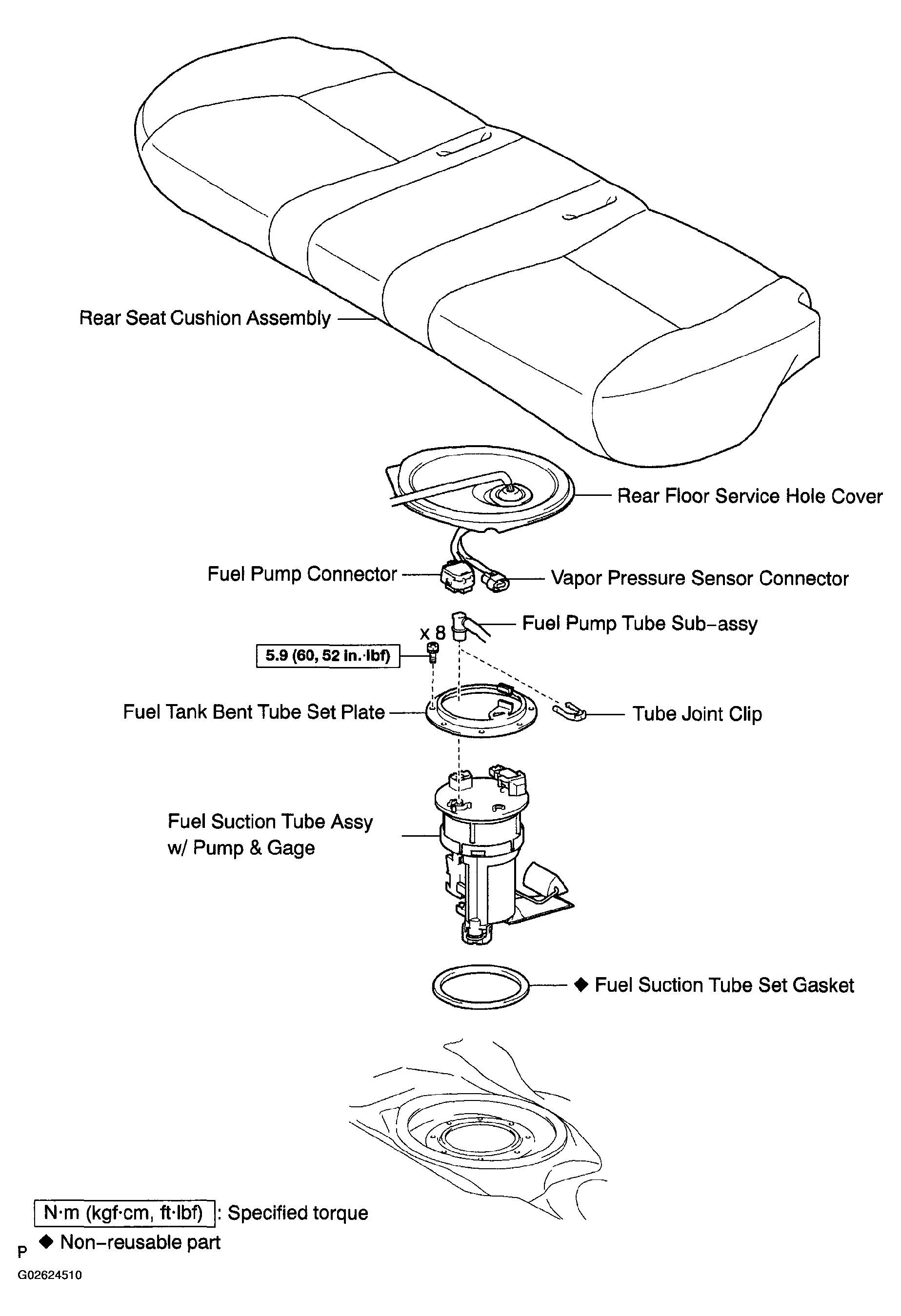

Fig 3: Fuel Tank Assy (1MZ-FE/3MZ-FE) Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
