Throttle Body ASSY (1MZ-FE/3MZ-FE): Components

Fig 1: Throttle Body Assembly Connector Terminals (1MZ-FE/3MZ-FE) With Torque Specifications (1 Of 2)
G02624358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

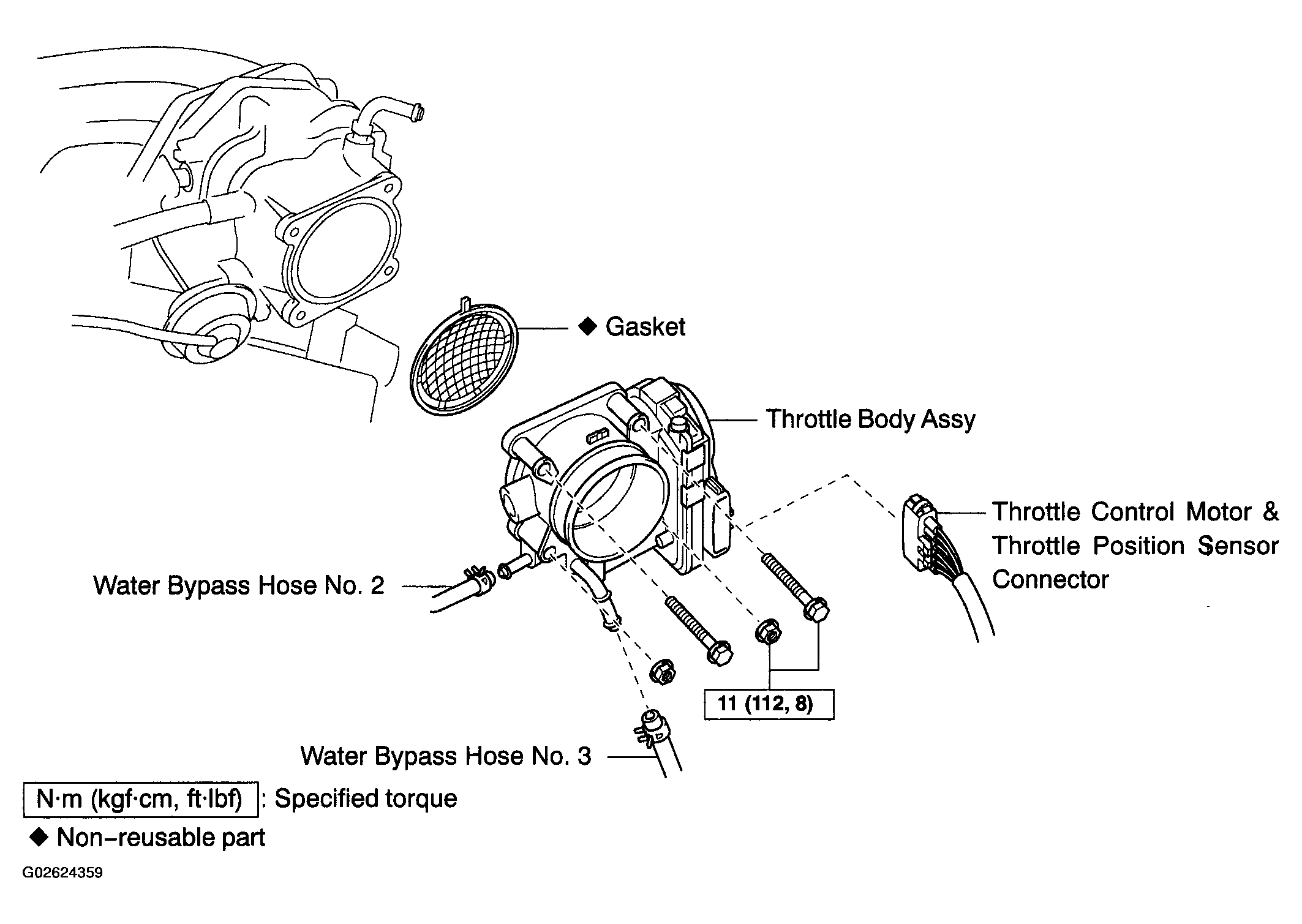

Fig 2: Throttle Body Assembly Connector Terminals (1MZ-FE/3MZ-FE) With Torque Specifications (2 Of 2)
G02624359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
