Clock ASSY: Replacement

HINT:

• COMPONENTS: See COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (AUTO AIR CONDITIONING) (SEE  REPLACEMENT   )
2. REMOVE AIR CONDITIONING PANEL SUB-ASSY (MANUAL AIR CONDITIONING) (SEE  REPLACEMENT   )
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT   )
4. REMOVE CLOCK ASSY
   1. Remove the 2 screws.
   2. Disengage the claw and remove the clock assy.

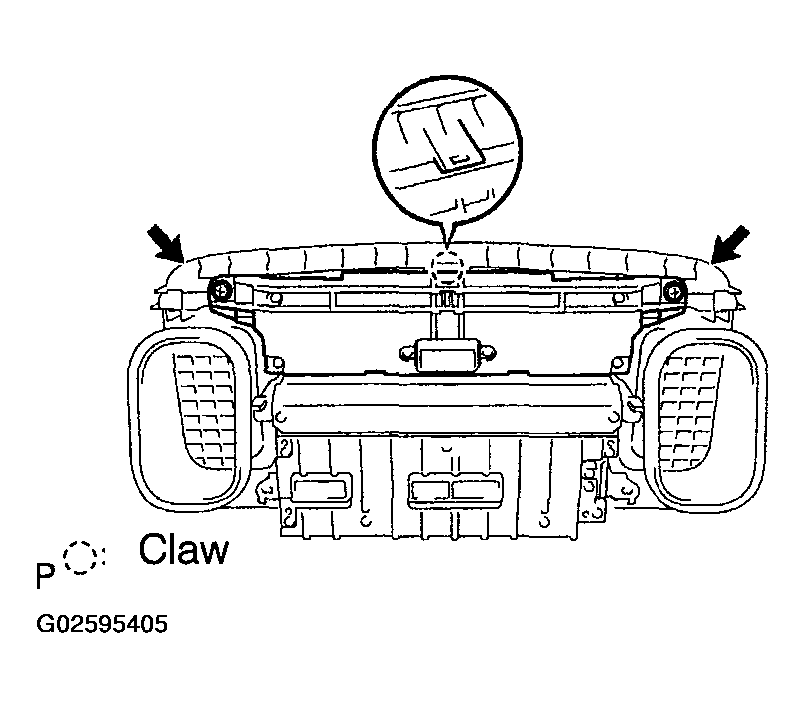

      Fig 1: Removing Clock Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
