Fuel Pump ASSY (1MZ-FE/3MZ-FE): Components

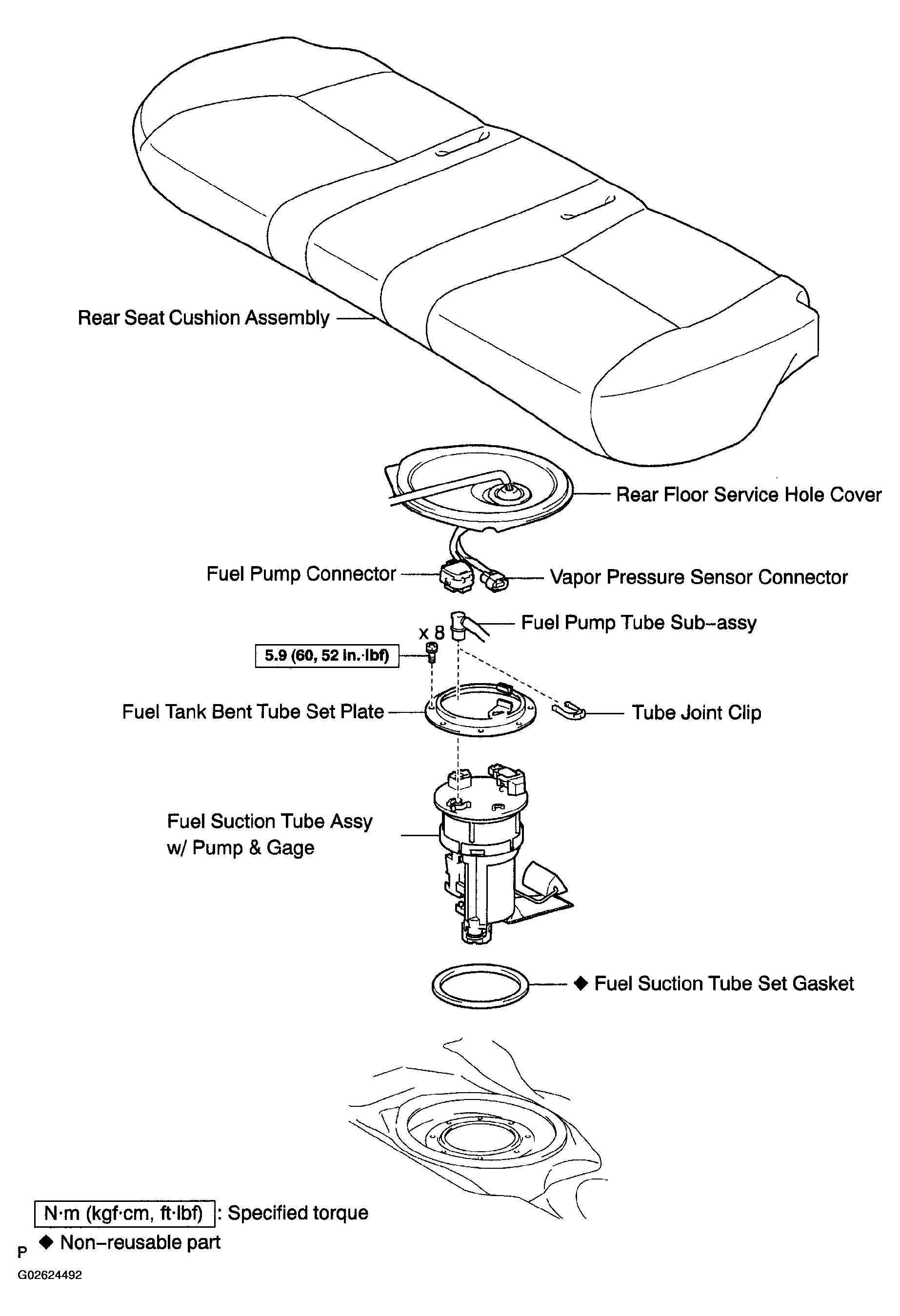

Fig 1: Fuel Pump Assy (1MZ-FE/3MZ-FE) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

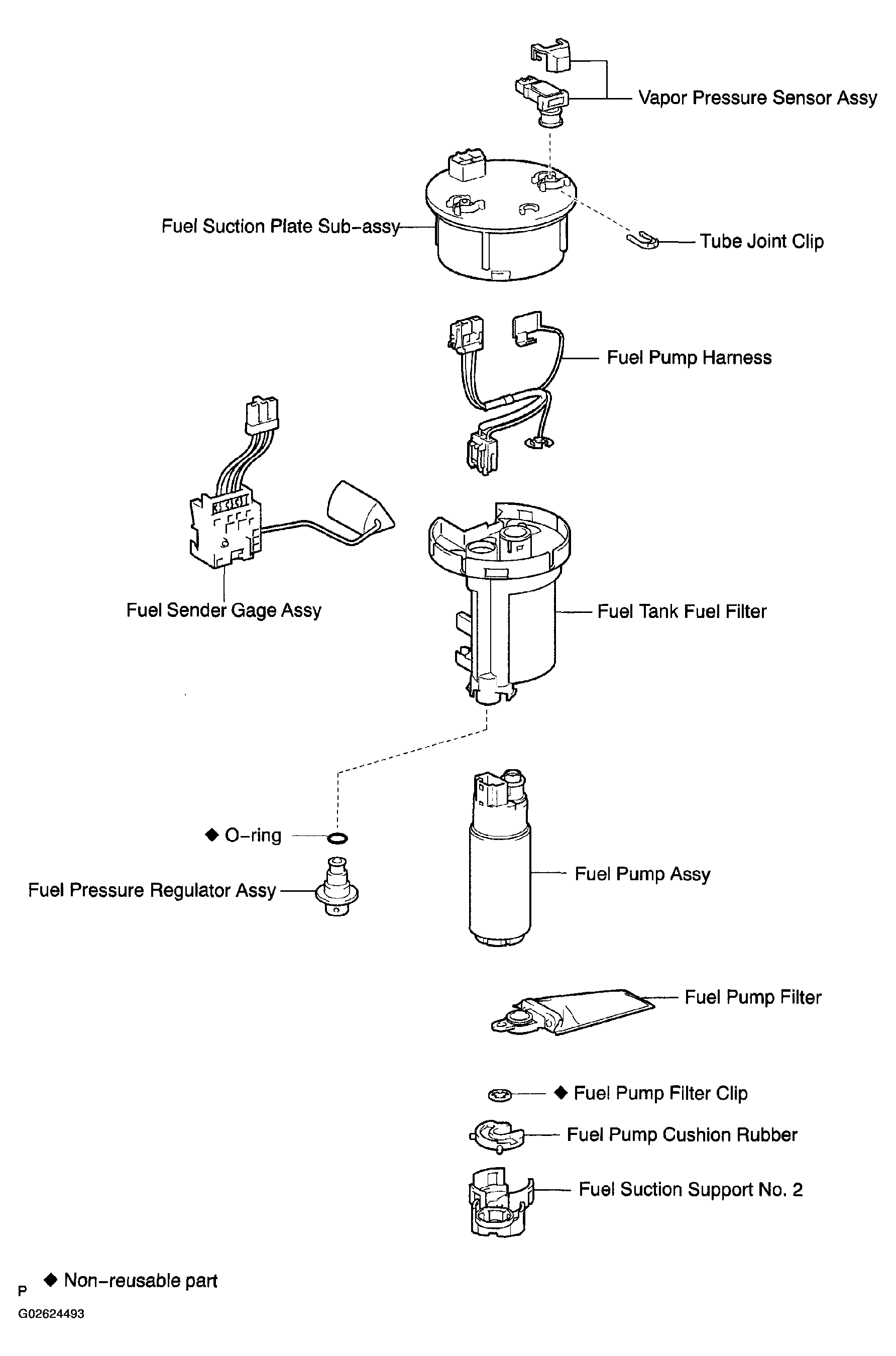

Fig 2: Identifying Fuel Pump Assy (1MZ-FE/3MZ-FE) Components
