Problem Symptoms Table

Use the table below to help you determine the cause of the problem. The numbers in the column of "Suspect Area" indicate the possibility of the problem in descending order. Therefore, check the areas in this order. If necessary, replace or exchange these parts.

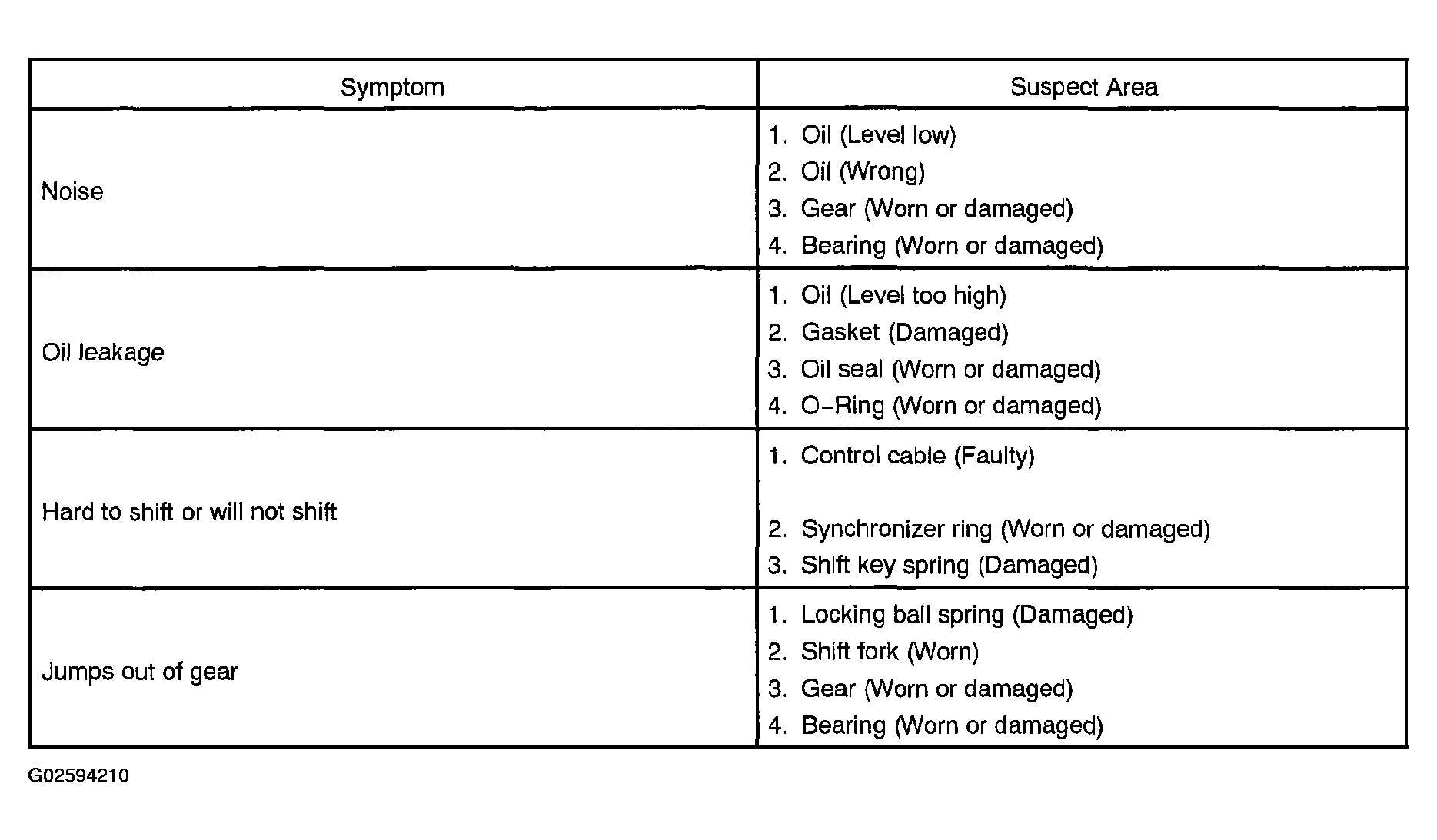

Fig 1: Problem Symptoms Chart
G02594210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
